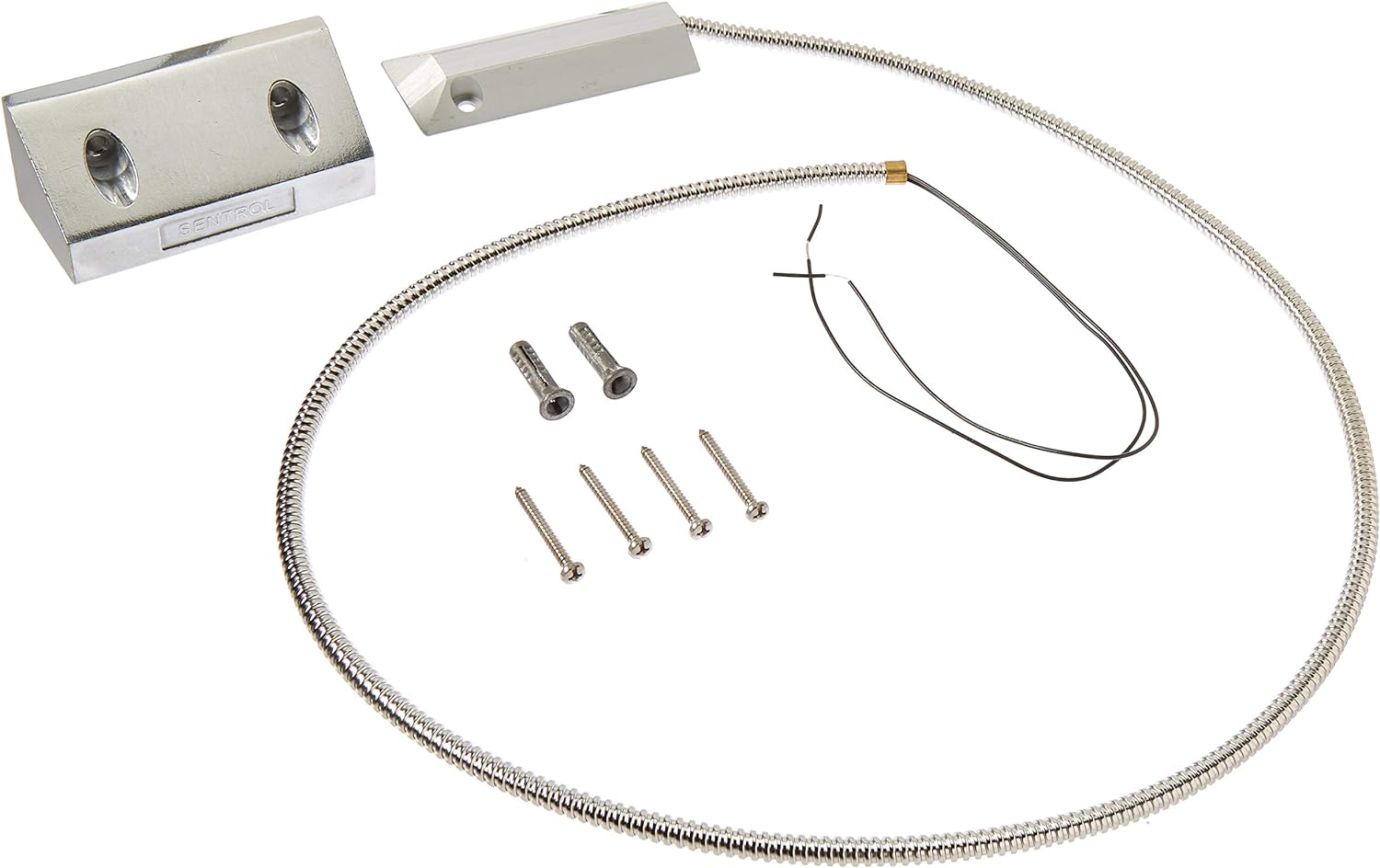

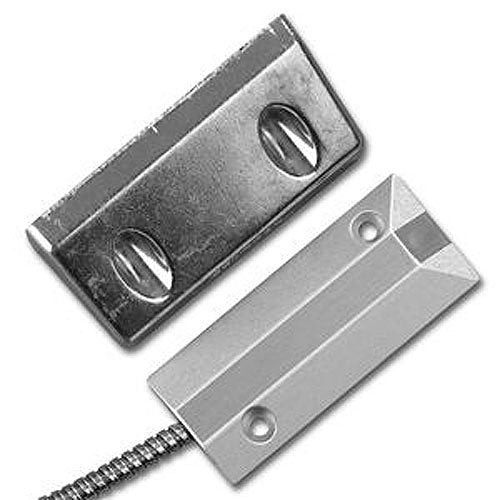

Edwards Signaling 2205A-L Overhead Door Magnetic Contact Aluminum

Product Description

The Edwards Signaling 2205A-L Magnetic Contact is designed for overhead door applications within commercial and industrial environments. This product features a durable aluminum housing and is enhanced with a polyurethane potting material to shield the reed switch from moisture and humidity.

• Constructed for the demanding settings of commercial and industrial areas.
• Features a wide operation gap up to three inches, facilitating an easy setup and reducing false alarms.
• Incorporates a universal-style magnet for versatile installation options.

Product Highlights

This floor mount magnetic contact supports a 100V AC/DC maximum voltage and a current up to 0.5A, making it robust for heavy-duty use.

Product Information

Standard Information

• Brand: Edwards Signaling
• MPN: 2205A-L

Technical Specifications

• Material: Aluminum
• Voltage: 100V AC/DC max
• Current: 0.5A max
• Power: 7.5W/VA max
• Sense Range: 3 inches
• Installation Type: Commercial, Industrial
