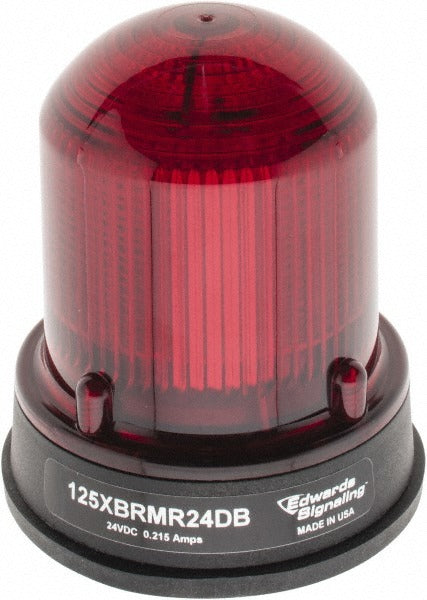

Edwards Signaling 125XBRMR24DB Led Signal Light Red 24VDC

Product Description

The EDWARDS SIGNALING 125XBRMR24DB is a dual-mode LED signal light that operates in both flashing and steady modes, making it a versatile visual indicator for industrial and commercial signaling applications. Running on 24 volts DC at 0.22 amps, this unit produces a red lens output at 65 flashes per minute in flash mode. The NEMA 4X-rated housing stands 3.875 inches tall with a 3.25-inch diameter, built with a chemical-resistant, heat-resistant, and shatter-resistant lens for demanding environments. Licensed electricians and automation technicians are the primary installers.

This signal light is rated for outdoor use and is designed for panel or 3/4-inch pipe mount installations. It suits process control panels, machinery status indicators, alarm annunciator systems, and building automation applications where a rugged, weather-tight visual signal device is required. The NEMA 4X enclosure rating makes it appropriate for washdown areas, chemical processing environments, and exterior installations subject to moisture and contaminants. Operating temperature range spans -31 degrees F to 150.80 degrees F, supporting cold-storage and high-heat industrial settings.

Key Features

• Dual-mode operation: selectable flashing at 65 flashes per minute or continuous steady illumination
• LED lamp type for long service life and low current draw at 0.22 amps
• NEMA 4X rated: chemical-resistant, heat-resistant, and shatter-resistant lens construction
• Supports panel mount and 3/4-inch pipe or pendant mount configurations
• Wide operating temperature range: -31 degrees F to 150.80 degrees F
• cULus and UL Listed for use in code-compliant installations

Compatibility

Designed as an OEM-style visual signal device for industrial control panels, machinery annunciators, and outdoor alarm systems requiring a NEMA 4X-rated 24VDC indicator light with panel or pipe mount capability.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power to the control circuit before wiring or mounting. For pipe mount installations, ensure the 3/4-inch mounting hardware is securely torqued and that conduit sealing fittings are used where NEMA 4X integrity must be maintained. Do not exceed the rated supply voltage of 24 volts DC.
