Edwards Signaling 125XBRMR120AB Led Signal Light 120VAC

Product Description

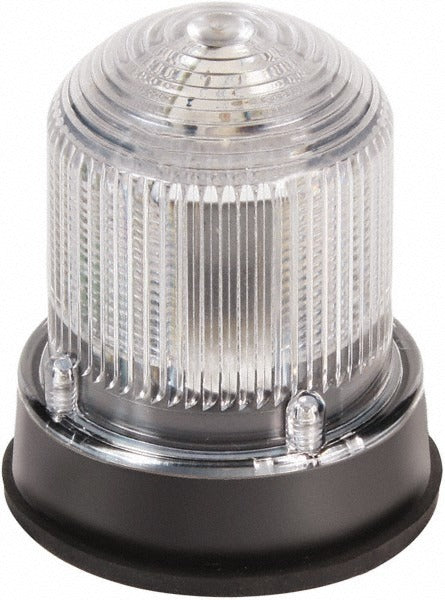

The EDWARDS SIGNALING 125XBRMR120AB is a dual-mode LED signal light that operates in both flashing and steady modes, designed for industrial and commercial alerting applications. The unit runs on 120VAC at 0.11 amps and produces a red LED output rated at 65 flashes per minute in flash mode. It carries a NEMA 4X enclosure rating, making it suitable for wet, corrosive, and outdoor environments. The lens is chemical-resistant, heat-resistant, and shatter-resistant, providing durability in demanding service locations. Licensed electricians and facility maintenance professionals are the primary installers of this device.

This signal light is intended for panel or 3/4-inch pipe mount installations in both indoor and outdoor settings. Its NEMA 4X rating makes it appropriate for washdown areas, chemical processing environments, and exterior-mounted alarm or status indicator applications. The red lens color is standard for alarm, fault, or warning indication in industrial control panels, process equipment, and building systems. The compact 3-1/4-inch diameter and 3-7/8-inch height allow it to fit in tight enclosure knockouts or standard pipe-mount assemblies without extensive modification.

Key Features

• Dual-mode operation: selectable flashing and steady light output
• LED lamp type for long service life and low current draw at 0.11 amps
• NEMA 4X rated enclosure for outdoor, washdown, and corrosive environments
• Shatter-resistant, chemical-resistant, and heat-resistant red lens
• Operates across a wide temperature range: -31 degrees F to 150.80 degrees F
• Accepts 3/4-inch pipe mount or panel mount installation
• cULus and UL Listed for code-compliant installations

Compatibility

Designed as an OEM-style panel or pipe mount signal light for industrial control panels, process equipment enclosures, and commercial building alarm systems requiring a 120VAC red indicator light with NEMA 4X protection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local electrical codes. Disconnect and lock out all power to the circuit before wiring or mounting this device. For pipe mount installations, verify that the support pipe or conduit is rated for the intended environment and that the 3/4-inch fitting is secure before energizing. Do not exceed the rated voltage or expose the unit to conditions outside its listed temperature range.
