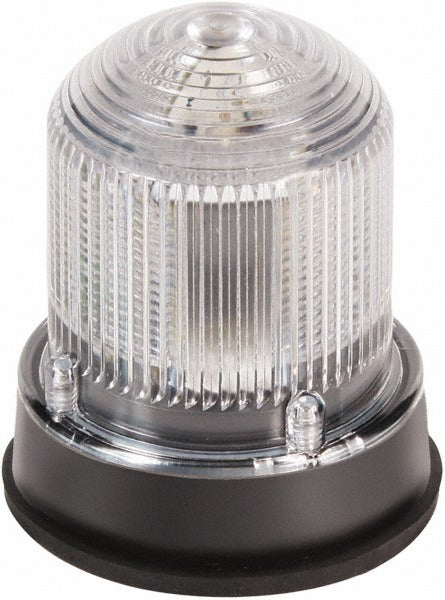

Edwards Signaling 125XBRiRBA120AB Indicator Light 120VAC

Product Description

The EDWARDS SIGNALING 125XBRiRBA120AB is a multi-status LED indicator light designed for panel or pipe mounting in industrial and commercial signaling applications. It operates at 120VAC and draws 0.10 amps, making it suitable for standard control panel integration. The unit features three lens colors — amber, blue, and red — allowing technicians to assign distinct visual status signals to different system states. The housing carries a NEMA 4X rating, meaning it resists moisture, dust, and corrosive environments. Licensed electricians and controls technicians are the primary installers for this type of indicator.

This indicator light is rated for both indoor and outdoor use, making it applicable across a wide range of industrial, HVAC control, water treatment, and facility management installations. The panel mount option suits flush or surface-mount enclosures, while the 3/4-inch pipe mount accommodates pendant or post-mount configurations common in machine guarding and process control environments. The operating temperature range of -31 degrees F to 150.80 degrees F supports use in harsh or variable-temperature locations.

Key Features

• Three-color LED lens assembly: amber, blue, and red for multi-status indication
• NEMA 4X rated housing — chemical-resistant, heat-resistant, and shatter-resistant lens
• Dual mount options: panel mount and 3/4-inch pipe or pendant mount
• 120VAC operation at 0.10 amps
• Wide operating temperature range: -31 degrees F to 150.80 degrees F
• cULus and UL Listed 1638 certified

Compatibility

Designed as an OEM-style replacement or new-installation indicator light for 120VAC control panels and pipe-mount signaling assemblies requiring multi-status visual output.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power to the control panel or enclosure before mounting or wiring the indicator. Ensure the mounting surface or pipe stub-out is properly sized for the 3/4-inch pipe mount fitting or the panel cutout before securing the unit. Do not exceed the rated voltage or expose the unit to environments beyond its rated temperature or NEMA 4X classification.
