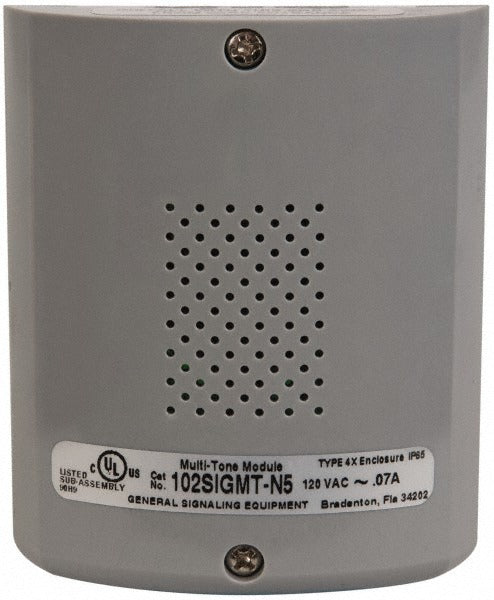

Edwards Signaling 102SIGMT-N5 Combination Tone Card

Product Description

The EDWARDS SIGNALING 102SIGMT-N5 is a base-mount combination tone card designed for use with 102 Series stacklight assemblies. Operating at 120 VAC and drawing 0.05 amps, it delivers an adjustable audible output ranging from 79 dB at 10 feet to 89 dB at 1 meter, allowing technicians to tune the alert level to the ambient noise conditions of the installation environment. The card carries a NEMA 3R and 4X enclosure rating along with an IP54 ingress protection rating, making it suitable for both indoor and outdoor industrial applications where dust and water exposure are a concern. Electricians and automation technicians typically handle installation of this accessory as part of a stacklight signal tower build-out.

This tone card is intended for integration into 102 Series stacklight systems in light industrial, commercial, and process control environments. It mounts directly to the base of compatible stacklight assemblies, adding an audible alarm channel to the visual signaling stack. Typical applications include machine status indication, process fault alerting, and safety annunciation on production floors, packaging lines, and equipment panels where both visual and audible signals are required.

Key Features

• Adjustable audible output from 79 dB at 10 feet to 89 dB at 1 meter to suit varying ambient noise levels
• 120 VAC input voltage with low 0.05-amp current draw
• NEMA 3R and 4X rated enclosure for resistance to rain, sleet, dust, and corrosion
• IP54 ingress protection rating guards against dust and water spray
• Base-mount design integrates directly into 102 Series stacklight assemblies
• Combination tone card format adds audible signaling to existing visual stacklight stacks

Compatibility

Designed for use with 102 Series Stacklight assemblies from EDWARDS SIGNALING.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. Disconnect and lock out all power to the stacklight assembly before attaching or removing the tone card. Verify that the supply voltage matches the 120 VAC rating of this card before energizing the system. Do not exceed the rated current draw when configuring the stacklight stack with multiple signal modules.
