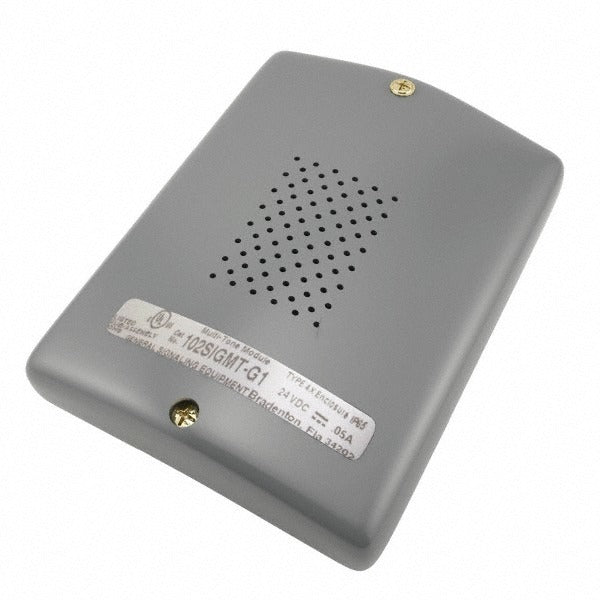

Edwards Signaling 102SIGMT-G1 Combination Tone Card 24 Vdc

Product Description

The EDWARDS SIGNALING 102SIGMT-G1 is a base-mount combination tone card designed for use with 102 Series stacklight assemblies. Operating at 24 volts DC and drawing 0.05 amps, it delivers an adjustable audible output ranging from 79 dB at 10 feet to 89 dB at 1 meter. The card mounts directly to the stacklight base, adding audible signaling capability to visual indicator towers. It carries a NEMA 3R and 4X enclosure rating along with an IP54 ingress protection rating, making it suitable for both indoor and light outdoor industrial environments. Electricians and automation technicians install this card as part of a modular signaling system on factory floors, control panels, and equipment stations.

This tone card is intended for industrial and commercial signaling applications where a combination of visual and audible alerts is required. Typical installations include machine status indication, process alarm systems, and equipment monitoring setups. The base-mount design integrates directly into the 102 Series stacklight platform without requiring separate mounting hardware or additional wiring runs beyond the existing stacklight assembly. The NEMA 4X and IP54 ratings allow deployment in areas subject to dust, splashing water, or mild wash-down conditions.

Key Features

• Adjustable audible output from 79 dB at 10 feet to 89 dB at 1 meter
• 24 VDC operating voltage at 0.05 amps draw
• NEMA 3R and 4X rated enclosure for wet and corrosive environment use
• IP54 ingress protection rating against dust and water splash
• Base-mount design integrates directly with 102 Series stacklight assemblies
• Combines tone signaling with existing visual stacklight indicators

Compatibility

Designed for use with Edwards Signaling 102 Series stacklight assemblies as a base-mount tone card accessory.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the stacklight assembly and confirm the circuit is de-energized before attaching or removing the tone card. Verify the supply voltage matches the 24 VDC rating of the card before restoring power. Follow the manufacturer documentation for proper base-mount attachment and audible output level adjustment.
