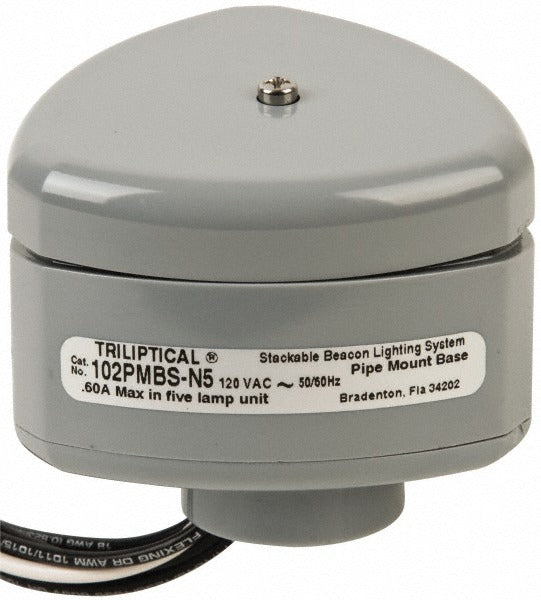

Edwards Signaling 102PMBS-N5 Tower Light Base Unit 120V

Product Description

The EDWARDS SIGNALING 102PMBS-N5 is a stackable tower light base unit designed for modular visual signaling systems in industrial and commercial environments. Operating at 120 VAC and drawing 0.60 amps, this base unit supports both flashing and steady light modes depending on the module configuration stacked above it. It carries an IP54 and IP65 ingress protection rating along with NEMA 3R and 4X ratings, making it suitable for wet, dusty, and corrosive locations. The pipe mount design allows straightforward installation on standard signal tower mounting posts. Electricians and automation technicians are the typical installers.

This base unit is used in manufacturing facilities, warehouses, process control panels, and machine stations where a stackable tower light assembly is required to indicate equipment status, alarms, or process conditions. The modular stackable design allows additional colored light modules to be added above the base to build a multi-tier signal tower. It is appropriate for both indoor and outdoor installations where NEMA 4X or IP65-rated enclosures are specified.

Key Features

• Supports flashing and steady light output modes depending on stacked module selection
• Rated 120 VAC at 0.60 amps for standard North American power circuits
• IP54 and IP65 ingress protection ratings for dust and water resistance
• NEMA 3R and 4X ratings suitable for outdoor and corrosive environments
• Pipe mount base for installation on standard tower light mounting posts
• Modular stackable design allows expansion with additional signal modules

Compatibility

Designed as an OEM-style base unit for use with compatible stackable tower light module systems requiring a 120 VAC pipe-mount base configuration.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power to the circuit before wiring or mounting the unit. Secure the base firmly to the mounting pipe before stacking additional modules to prevent mechanical instability. Do not exceed the rated amperage of the base unit when configuring the full tower assembly.
