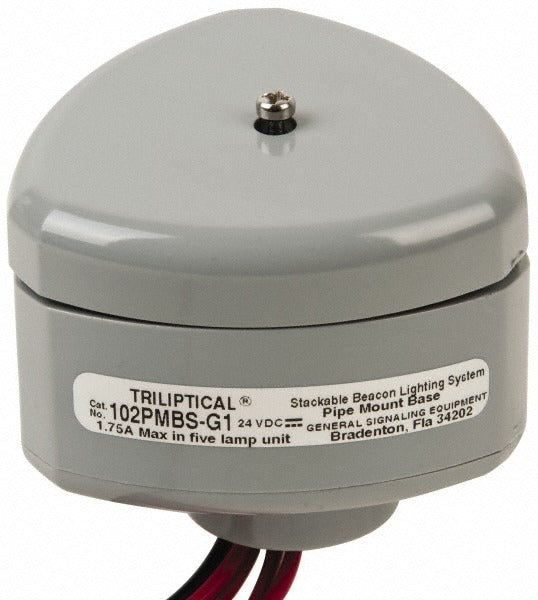

Edwards Signaling 102PMBS-G1 Tower Light Base Unit

Product Description

The EDWARDS SIGNALING 102PMBS-G1 is a stackable tower light base unit designed for industrial and commercial signaling applications. It supports both flashing and steady light modes, making it adaptable to a wide range of visual alert configurations. Rated for 24 VDC operation at up to 1.75 amps, this base unit serves as the foundation for a modular tower light stack. It carries IP54 and IP65 ingress protection ratings along with NEMA 3R and 4X enclosure ratings, meaning it resists dust, water, and corrosion in demanding environments. Electricians and automation technicians typically install this unit as part of machine status or process alarm systems.

This base unit is suited for installation in manufacturing facilities, process control environments, and other industrial settings where stackable signal tower lights are used to communicate equipment status. Its pipe mount design allows for straightforward mounting to standard pipe or conduit. The modular stackable design means additional light or sound modules can be added above this base unit to build out a complete signaling column sized to the application.

Key Features

• Supports both flashing and steady light output modes
• Rated for 24 VDC at 1.75 amps
• IP54 and IP65 ingress protection ratings for dust and water resistance
• NEMA 3R and 4X ratings for indoor and outdoor corrosive-environment use
• Pipe mount base for secure installation on standard pipe or conduit
• Stackable modular design accepts additional signal tower modules

Compatibility

Designed as a base unit for use with compatible stackable tower light module systems requiring a 24 VDC pipe-mount foundation unit.

Installation Notes

Installation of this base unit is typically performed by a licensed electrician in accordance with the National Electrical Code (NEC). Disconnect and lock out all power to the circuit before mounting or wiring. Secure the unit firmly to the mounting pipe before connecting field wiring, and verify that supply voltage matches the 24 VDC rating before energizing. Do not exceed the rated 1.75 amp load when configuring stacked modules.
