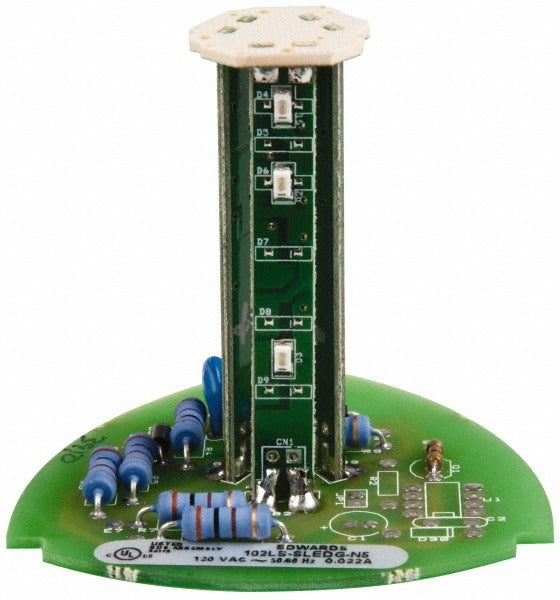

Edwards Signaling 102LS-SLEDG-N5 Led Tower Light Module

Product Description

The EDWARDS SIGNALING 102LS-SLEDG-N5 is a green, steady-output LED lamp module designed for stackable tower light assemblies. Operating at 120 VAC and drawing just 0.02 amps, this module delivers a continuous green indication signal in industrial and commercial signaling systems. It carries an IP54 and IP65 ingress protection rating along with NEMA 3R and 4X ratings, making it suitable for use in wet, dusty, and corrosive environments. Electricians and industrial maintenance technicians install this module as part of a multi-segment tower light stack to provide clear visual status indication on machinery, control panels, and process equipment.

This module is built for stackable tower light configurations used in manufacturing facilities, control rooms, and process automation installations. It supports both panel mount and pipe mount installation methods, giving installers flexibility depending on the enclosure or mounting structure available. The green steady light output is commonly used to signal normal operation or system-ready status in machine annunciation and alarm indication applications.

Key Features

• Green steady LED output for continuous visual status indication
• 120 VAC operation at 0.02 amps for low power draw
• IP54 and IP65 ingress protection ratings for wet and dusty environments
• NEMA 3R and 4X ratings suitable for corrosive and outdoor-rated enclosures
• Stackable design allows combination with other color modules in a single tower assembly
• Supports panel mount and pipe mount installation

Compatibility

Designed as an OEM-style stackable LED tower light module for use in compatible EDWARDS SIGNALING tower light assemblies requiring a 120 VAC green steady lamp segment.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power to the tower light assembly before adding or replacing modules. Verify that the supply voltage matches the 120 VAC rating of this module before energizing. Do not exceed the rated voltage or attempt to modify the module housing.
