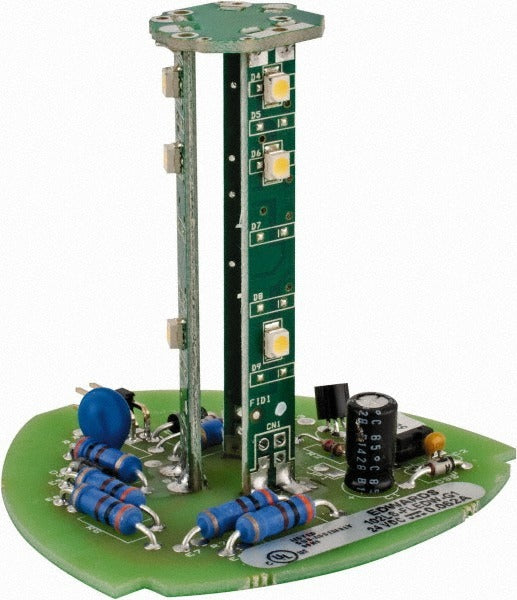

Edwards Signaling 102LS-FLEDW-G1 Led Tower Light Module

Product Description

The EDWARDS SIGNALING 102LS-FLEDW-G1 is a white flashing LED lamp module designed for use in stackable tower light assemblies. Operating at 24 volts DC and drawing 0.06 amps, this module delivers a high-visibility flashing white signal suitable for machine status, process indication, and alarm annunciation in industrial and commercial environments. Rated IP54 and IP65 for ingress protection and certified to NEMA 3R and 4X standards, it is built to withstand dust, water, and corrosive conditions. Electricians and automation technicians are the typical installers for this type of signaling device.

This module is intended for panel mount or pipe mount installation in manufacturing facilities, control panels, and process automation systems where modular tower light configurations are required. The stackable design allows multiple color and function modules to be combined into a single tower assembly, supporting multi-condition visual signaling without additional hardware. It is suited for both indoor and outdoor applications given its NEMA 4X and IP65 ratings.

Key Features

• White flashing LED output for high-visibility status indication
• Operates at 24 volts DC with a low current draw of 0.06 amps
• IP54 and IP65 ingress protection ratings for dust and water resistance
• NEMA 3R and 4X rated for outdoor and corrosive environment use
• Stackable modular design compatible with tower light assembly configurations
• Supports panel mount and pipe mount installation methods

Compatibility

Designed as an OEM-style replacement or expansion module for stackable tower light systems accepting 24 VDC LED lamp modules.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements. Disconnect and lock out all power to the control panel or machine before installing or replacing tower light modules. Verify that the supply voltage matches the 24 VDC rating of this module before energizing. Do not exceed the rated current when combining multiple modules in a stacked assembly.
