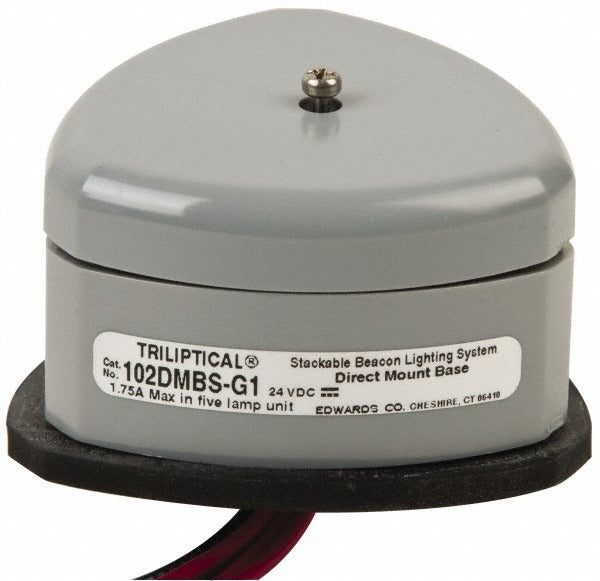

Edwards Signaling 102DMBS-G1 Tower Light Base Unit 24V

Product Description

The EDWARDS SIGNALING 102DMBS-G1 is a stackable tower light base unit designed for industrial and commercial signaling applications. It operates on 24 volts DC and draws up to 1.75 amps, supporting both flashing and steady light modes depending on system configuration. The unit is panel-mount rated and built for demanding environments, carrying IP54 and IP65 ingress ratings along with NEMA 3R and 4X enclosure ratings. Electricians and industrial maintenance technicians typically install this base unit as the foundation of a modular tower light stack used to communicate equipment status visually on a production floor or in a control panel environment.

This base unit is suited for use in industrial facilities, manufacturing environments, and commercial control panel installations where visual annunciation is required. It serves as the mounting and wiring foundation onto which additional stackable light modules are added. Its dual ingress ratings make it appropriate for both indoor and outdoor applications where moisture or dust exposure is a concern. The flashing and steady output modes allow it to convey multiple alert states within a single stack assembly.

Key Features

• Supports both flashing and steady light modes for multi-state visual signaling
• Operates at 24 volts DC with a maximum draw of 1.75 amps
• IP54 and IP65 dual ingress protection ratings for dust and moisture resistance
• NEMA 3R and 4X ratings for use in demanding indoor and outdoor enclosure environments
• Panel-mount design serves as the base for modular, stackable tower light assemblies

Compatibility

Designed as an OEM-style base unit for modular stackable tower light systems requiring a 24 VDC panel-mount foundation with NEMA 3R and 4X rated enclosures.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements. Power down the control panel or circuit supplying the unit before wiring or mounting. Verify that the supply voltage matches the 24 VDC input rating before energizing. Ensure the panel cutout and mounting surface are appropriate for the NEMA 4X rating to maintain the enclosure integrity of the installation.
