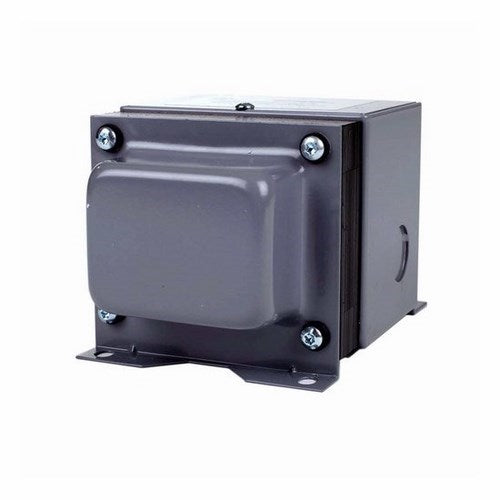

Edwards 88-50 120-12/24V 50W Tfmr

Product Description

The EDWARDS 88-50 is a 50W transformer with a 120V primary and a secondary of 12V AC at 25VA or 24V AC at 50VA. It is designed for surface mounting and conforms to UL standards. This heavy-duty power transformer operates at a frequency of 50/60 Hz and features enclosed connections with pigtails for the primary and screw terminals for the secondary.

• Surface mount
• 120 VAC Primary Voltage
• UL Listed

Product Highlights

Heavy-duty power transformer with enclosed connections and multiple voltage options for diverse signaling applications.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 88-50

Technical Specifications

• Type: AC-Power
• Mounting: Surface
• Standard: UL
• Brand Name: Edwards
• KVA Rating: 0.025 - .05
• Manufacturer: EDWARDS
• Primary Voltage: 120 V AC
• Secondary Voltage: 12/24 V AC
• Product Family: 88 Series
• Product Type: Transformers
• Frequency: 50/60 Hz
• Manufacturer Part Number: 88-50
• Mounting Hole Size: 4-3/8 x 3-1/8 in
• Mounting Type: Panel Mount
• Phase: 1 Phase
• Power Rating: 50 VA
• Primary Type: Industrial Transformer
• Series: 88 Series
• Termination: screw
• Configuration: Enclosed
