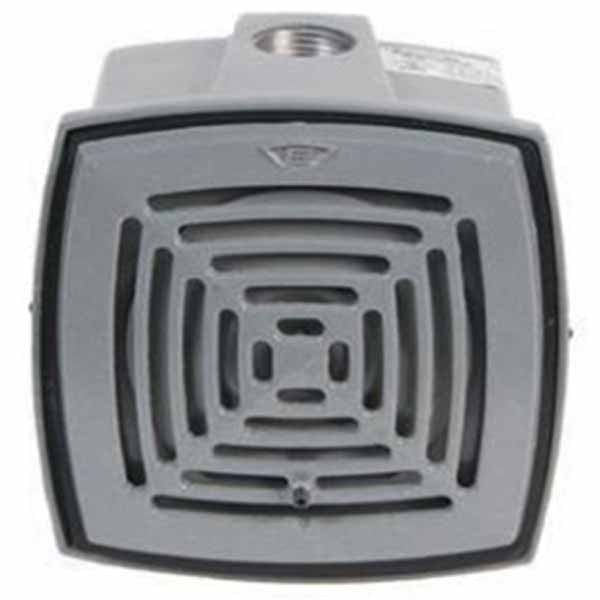

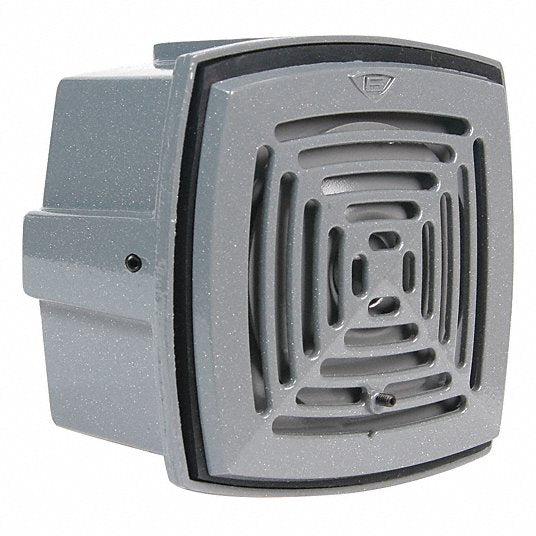

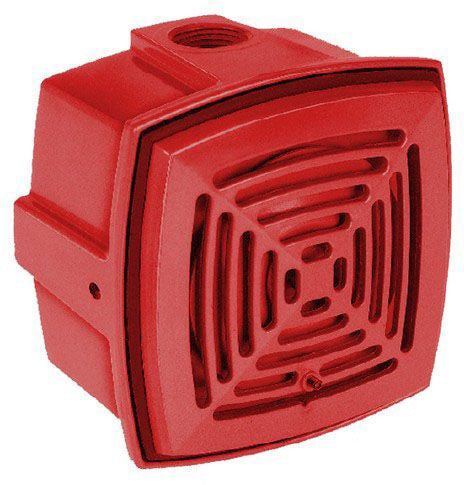

Edwards 876-G5 24Vac W-P Horn

Product Description

The EDWARDS 876-G5 is a weatherproof vibrating horn with a grill, designed for alarm, emergency evacuation, and warning applications. Operating at 24 VAC, this horn has a current rating of 0.63 Ampere and a power rating of 15.1 VA. It produces a sound intensity of 113 dB at 1 meter and 103 dB at 10 feet.

• Weatherproof construction for indoor and outdoor use
• Corrosion-resistant finish for durability
• NEMA 4X/12/12K enclosure for protection against environmental factors

Product Highlights

This vibrating horn is ideal for alarm, emergency evacuation, and warning applications. It features a heavy-duty die-cast housing with a powder epoxy finish and is UL and FM approved.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 876-G5
• Country of Origin: MEX

Technical Specifications

• Voltage Rating: 24 VAC at 50/60 Hz
• Current Rating: 0.63 Ampere
• Power Rating: 15.1 VA
• Sound Intensity: 113 dB at 1 M, 103 dB at 10 Ft
• Overall Depth: 3-5/16 in
• Overall Length: 4-7/8 in
• Conduit Tapping Size: 3/4 Inch-14 TPI
• Housing Material: Heat Flowed Powder Epoxy Finish Die-Cast
• Enclosure: NEMA 4X/12/12K
• Application: Alarm, Emergency Evacuation, Outdoor, Indoor, Paging, Scheduling, Timing, Warning
• Approval: UL, FM
• DC Coil Resistance: 5.2 Ohm
• Duty Cycle: 400 Hr
• Brand: EDWARDS SIGNALING
• Manufacturer Part Number: 876-G5
• Product Type: Horn
• Sound Style: Horn
• Overall Width: 4-7/8 in
• Operating Voltage: 24V AC
• Operating Current: 0.630 A
• Volume Selection: Selectable
• Material: Heavy Duty Die Cast
• Mounting Style: Surface Mount
• Mounting Location: Conduit Mount
• For Location: Indoor; Outdoor
• IP Rating: NEMA 4X
• NEMA Rating: NEMA 4X
• Sound Principle: Vibrating
• Sound Continuity: Continuous
• Vibration: Vibrating
• Standards: UL Listed
• Alarm Volume @ 1 m - Maximum: 113 dB
• Alarm Volume @ 10 ft - Maximum: 103 dB
• Number of Sound Patterns: 1
• Manufacturer: Edwards Signaling
• Product Family: 876/877 Series
• Product Category: Safety Equipment
• CUSTOM_Product Type2: Horns
