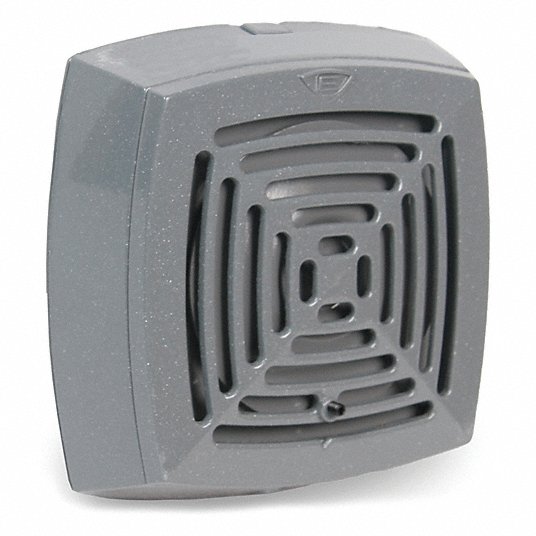

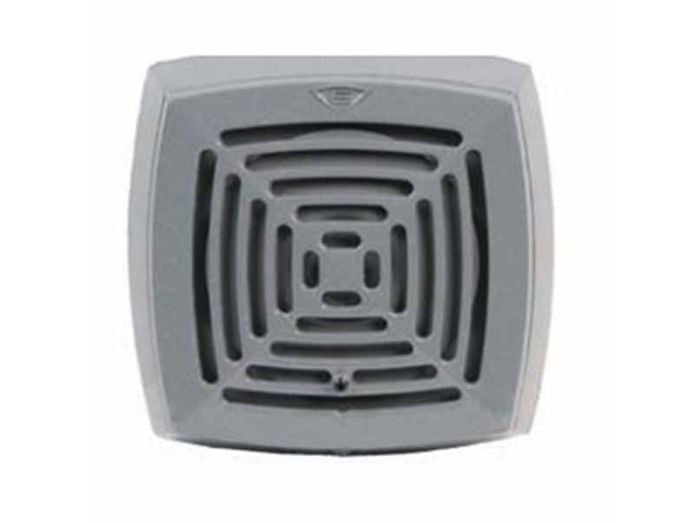

Edwards 875-G1 Adaptahorn Vibrating Horn 24V DC

Product Description

The EDWARDS 875-G1 Adaptahorn is a vibrating horn that produces a loud tone similar to a truck or train air horn. It is designed for industrial, commercial, and institutional applications, including timing, paging, and alarm signaling. The horn is completely assembled and features a corrosion-resistant finish.

• Completely Assembled
• Corrosion Resistant
• Volume adjustable

Product Highlights

The Edwards 875-G1 Adaptahorn is a high-decibel, surface-mount DC vibrating horn with a double projector for heavy-duty use. It comes with an Adaptaplate for easy installation.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 875-G1
• Country of Origin: Mexico

Technical Specifications

• Brand: EDWARDS SIGNALING
• Manufacturer Part Number: 875-G1
• Product Type: Horn
• Color: Gray
• Sound Style: Horn
• Overall Depth: 1.875 in
• Overall Length: 4.625 in
• Overall Width: 4.625 in
• Operating Voltage: 24 VDC
• Operating Current: 160m A
• Volume Selection: Selectable
• Material: Heavy Duty Die Cast
• Mounting Style: Surface Mount
• Connection Type: Plug-In
• Connector: Power Source Wire
• For Location: Indoor
• IP Rating: NEMA 4X
• NEMA Rating: NEMA 4X
• Sound Principle: Vibrating
• Sound Continuity: Continuous
• Vibration: Vibrating
• Standards: UL Listed
• Alarm Volume @ 1 m - Maximum: 111 dB
• Alarm Volume @ 10 ft - Maximum: 101 dB
• Number of Sound Patterns: 1
• Indoor/Outdoor: Indoor
• Sound Level: 111/101 dB
• Type: Grille Heavy Duty
• Manufacturer Name: United Technologies
• Model: 875-G1
• Catalog Number: 875-G1
• Country of Origin: US
• Environmental Conditions: Indoor
• Loudness: 111/101 dB at 1 m
• Mounting: Surface Mount
• Standard: UL / FM
• Voltage: 24 VDC
• Nominal Voltage: 24 VDC
• Current Rating: 0.16 A
• Explosion Proof: No
• Hazardous Location: No
• Approvals: FM, UL
• Power: 3.8 W
