Product Description
The Edwards 874-N5 is a vibrating horn designed for use in various commercial and industrial applications. This product operates on 120 Volt AC and has a current rating of 0.13 Amp. It produces sound levels of 113 decibels at one meter and 103 decibels at ten feet, ensuring that it is audible in noisy environments.
- Voltage Rating: 120 Volt AC
- Sound Intensity: 113 dB at 1 meter
- Durable Housing: Made from heavy-duty die-cast materials
Product Highlights
The Edwards 874-N5 is ideal for indoor use in alarm systems, pager systems, and security warning applications. It features an adjustable volume level to meet various signaling needs and projects slightly more than two inches from the mounting surface, making it a compact option for installations with limited space.
Product Information
Standard Information
-
Brand: Edwards
-
MPN: 874-N5
Technical Specifications
-
Sound Level: 113 dB at 1 meter, 103 dB at 10 feet
-
Power Rating: 15.6 Volt-Amps
-
Type: Vibrating Horn
-
Material: Heavy Duty Die-Cast
-

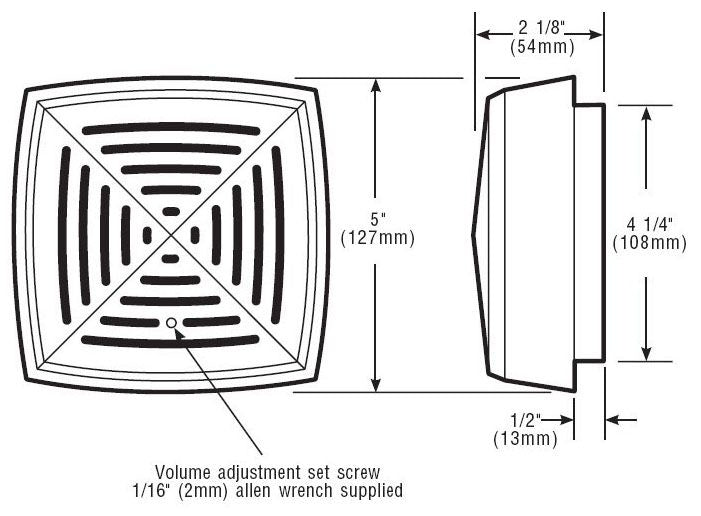

Depth: 2-1/8 inches
-
Height: 5 inches
-
Coil Resistance: 150 Ohms
-
Duty Cycle: 400 hours
