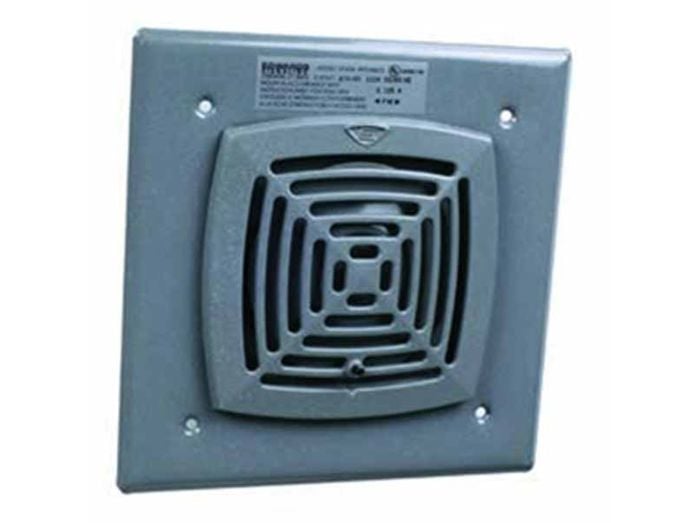

Edwards 870-R5 Adaptahorn Flush Mount Horn 240VAC

Product Description

The EDWARDS 870-R5 Adaptahorn is a low current, high decibel flush mount vibrating horn designed for heavy-duty use. It is designed for wall or panel installation and projects less than 1" from the mounting surface. The horn has a corrosion-resistant finish and a heavy-duty die-cast housing. It is supplied complete with trim plate.

• Flush mount design for wall or panel installation.
• Volume is adjustable.
• UL and FM approvals.

Product Highlights

The Edwards 870 Series Adaptahorn is ideal for timing, scheduling, paging, general alarm, and warning applications. It is designed for indoor installation.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 870-R5
• Country of Origin: MEX

Technical Specifications

• Manufacturer Part Number: 870-R5
• Manufacturer: Edwards Signaling
• Product Series: 870
• Family Series: Edwards Signaling Audible Signaling Devices, 870 Series
• Description: Adaptahorn, 240VAC, Flush Mount
• Type: Vibration
• Nominal Voltage: 240 VAC
• Current Rating: 0.07 A
• Explosion Proof: No
• Hazardous Location: No
• Approvals: FM, UL
• Net Weight: 2.06 lbs
• Gross Weight: 2.34 lbs
• Product Type: Audible Signals
