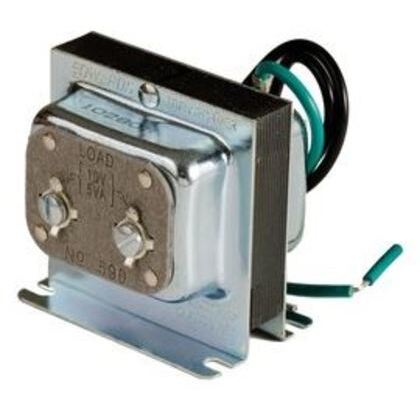

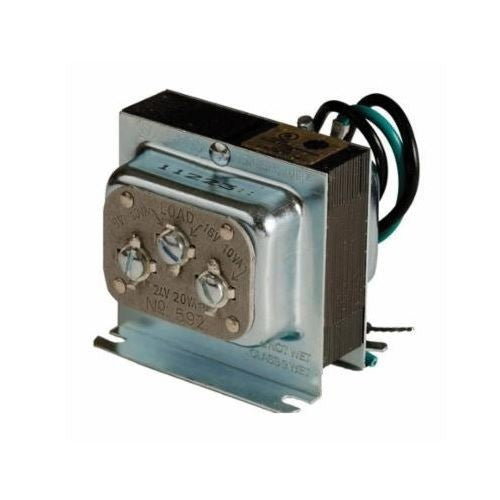

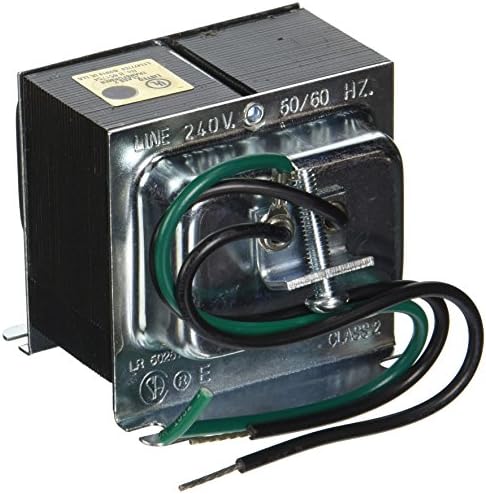

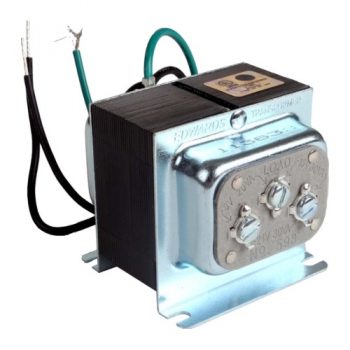

Edwards 598Y signaling transformer 240VAC 8/16/24 VAC

Product Description

The Edwards 598Y Class 2 Signaling Transformer is easy to install and provides a low voltage power source for residential, commercial, and industrial uses. It mounts in a standard 1/2" knockout or surface mounts using the provided foot mounts. It is suitable for mounting in both plastic and metal back boxes.

• Non-regenerative thermal overload protection
• Grounding wire
• Pre-stripped primary side pigtails

Product Highlights

The Edwards 598Y transformer offers high power for long wire runs or applications requiring greater power, such as door openers and building elevators.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 598Y
• Country of Origin: United States

Technical Specifications

• Brand: Edwards Signaling
• Power Source: Corded Electric
• Mounting Type: Outlet Box/Surface
• Specification Met: UL
• Number of Items: 1
• Manufacturer: General Signal
• Type: Transformer
• Production Status: Active
• Phase: 1
• Volt Amps: 30, 20
• Secondary Voltage: 8/16/24 V
• Primary Voltage: 240 V
• Primary Voltage Rating (AC): 240 V
• Turns Ratio: 2:40
• Country of Origin: United States
• Frequency Rating: 50/60 Hz
• Power Rating: 20/30 VA
• Series: 590
• Application: Residential, Commercial and Industrial Applications
• Standard & Approvals: RoHS Compliant, CSA Certified, UL Listed
