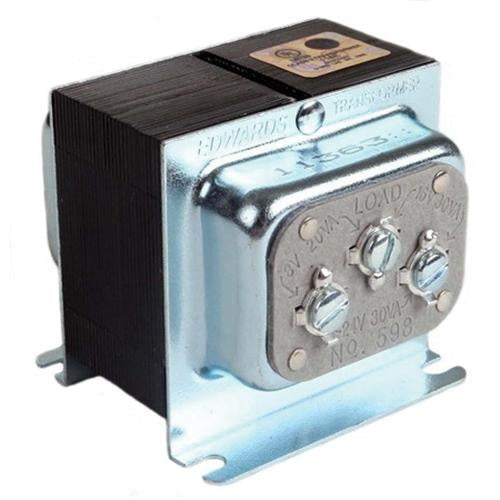

Edwards 598 Signaling Transformer 120 VAC Primary 8/16/24 VAC Secondary 30 VA

Product Description

The Edwards Signaling 598 is a Class 2 low voltage signaling transformer with a primary voltage of 120 VAC and secondary voltages of 8, 16, or 24 VAC. This transformer is designed for both commercial and residential applications and offers a maximum output current of thirty amps. It is suitable for surface mounting and can fit into standard 1/2 inch knockouts.

• Non-regenerative thermal overload protection
• Pigtail connections for easy installation
• Three selectable secondary voltage taps

Product Highlights

This transformer is ideal for powering doorbells, chimes, and other low voltage devices.

Product Information

Standard Information

• Manufacturer: United Technologies
• Brand: Edwards

Technical Specifications

• Type: Class 2 Low Voltage
• Series: 590
• Primary Voltage: 120 VAC
• Secondary Voltage: 8/16/24 VAC
• Frequency Rating: 50/60 Hz
• Maximum Amperage Rating: 30 A
• Dimensions: 2-1/4 in L x 2-1/8 in W x 2-15/16 in H
• Number of Taps: 3
• Mounting Type: Surface
