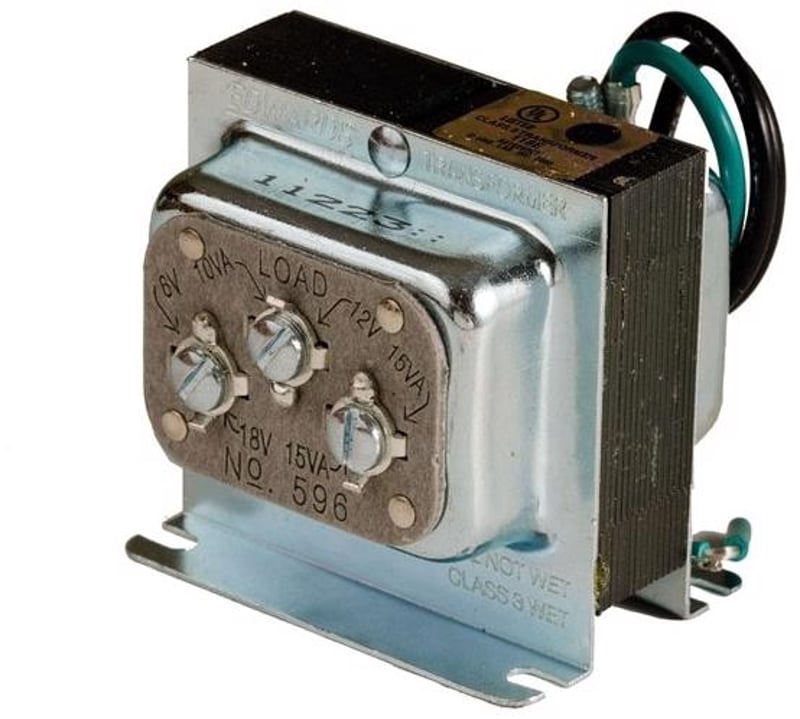

EDWARDS 596 Low Voltage Signaling Transformer 10/15/15 VA 2-1/4 Inch W x 2-1/2 Inch D x 2-1/8 Inch H

Product Description

The EDWARDS 596 is a low voltage signaling transformer designed for various applications. Its primary voltage is one hundred twenty VAC, while offering three secondary voltage options of six, twelve, and eighteen volts. This Class 2 transformer is suitable for commercial, industrial, and residential signaling needs.

• Low voltage rating with multiple secondary taps.
• Mountable in outlet boxes or surfaces.
• UL and CSA approved for safety.

Product Highlights

This transformer supports a frequency rating of fifty to sixty Hertz with a power rating of ten to fifteen VA. It includes screw terminals for easy connections.

Product Information

Standard Information

• Brand: EDWARDS
• MPN: 596

Technical Specifications

• Type: Class 2
• Primary Voltage: 120 VAC
• Secondary Voltage: 6/12/18 V
• Number of Taps: 3
• Frequency Rating: 50/60 Hz
• Power Rating: 10/15/15 VA
• Mounting: Outlet Box/Surface
• Size: 2-1/4 Inch W x 2-1/2 Inch D x 2-1/8 Inch H
• Approval: UL, CSA
• Application: Commercial, Industrial, Residential, Signaling
