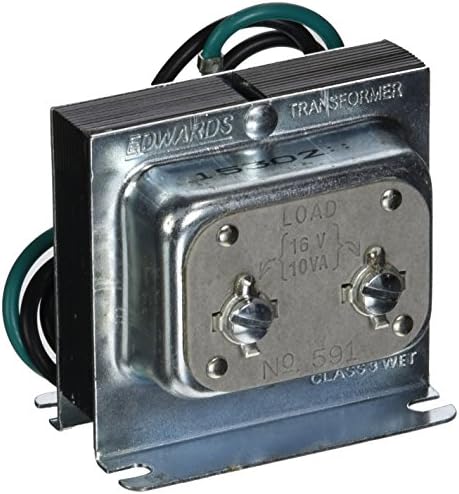

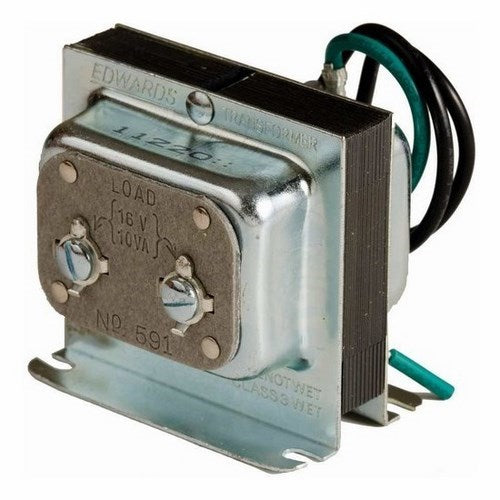

Edwards 591 signaling transformer 120v ac primary 16v secondary

Product Description

The Edwards 591 Class 2 Signaling Transformer is an easy-to-install, low-voltage power source for residential, commercial, and industrial uses. It mounts in a standard 1/2" (13mm) knockout or surface mounts using the provided foot mounts. These transformers are suitable for mounting in both plastic and metal back boxes.

• Non-regenerative thermal overload protection
• Grounding wire
• Pre-stripped primary side pigtails
• Screw terminal connections on secondary

Product Highlights

Ideal for standard doorbells and chimes in residential and commercial applications.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 591
• Country of Origin: China

Technical Specifications

• Brand: Edwards
• Manufacturer Part Number: 591
• Power Source: Corded Electric
• Mounting Type: Surface Mount
• Specification Met: UL
• Number of Items: 1
• Manufacturer: Edwards Signaling
• Product Name: Step Down Transformer
• Product Series: 590
• Product Type: Open Frame
• Output Receptacle Type: Screw Terminal
• Output Voltage: 16V AC
• Depth: 2.3"
• Height: 2.2"
• Width: 2.3"
• Input Voltage: 120V AC
• Power Rating: 10 VA
• Installation Type: Commercial
• Compatibility: Doorbells and Chimes
• Country of Origin: CN
• Primary Voltage: 120V AC
• Secondary Voltage: 16V 10VA V
• Description: Class 2 Transformer
• Certifications: CSA
• Number of Outlets: 1
• Termination Style: Cable
• Conversion Function: Step-down
• Outlet Type: Type A
• Minimum Operating Frequency: 50 Hz
• Plug Type: Type G
• Turns Ratio: 1:20
• Secondary Voltage Rating (AC): 16 V
• Mounting Style: Surface Mount
• Number of Phases: 1
• Primary Voltage Rating (AC): 120 V
• Type: AC - Class 2
• Maximum Operating Frequency: 60 Hz
• Application: Low voltage power sources for residential, commercial and industrial uses
• Connection: Pre-stripped Primary Side Pigtails
• KVA Rating: 0.01 kVA
• Mounting: 1/2 in. Knockout or Surface
