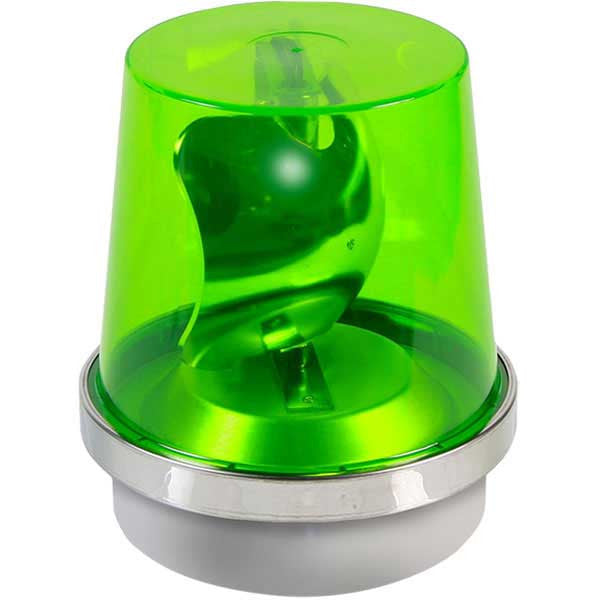

Edwards 52G-N5-40WH Rotating Beacon 120V AC

Product Description

The EDWARDS 52G-N5-40WH rotating beacon is designed to provide maximum brilliance and long term durability with minimum maintenance. The polycarbonate dome allows for easy cleaning and may be mounted in any orientation. It is designed to attract attention or indicate equipment malfunctions in noisy areas.

• Weatherproof
• Light intensifying reflector
• 75 revolutions per minute
• Bayonet lamp socket for easy replacement

Product Highlights

The EDWARDS rotating beacon is ideal for security systems, factory, and distribution facilities.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 52G-N5-40WH
• Country of Origin: US - United States

Technical Specifications

• Diameter: 6 in
• Lamp Life Hours: 25000 hr
• Lens Color Family: Green
• Voltage: 120 V
• Light Source: Halogen
• Description: Rotating Beacon
• Manufacturers Part Number: 52G-N5-40WH
• LED Color Family: Green
• Brand: Edwards Signaling
• Amperage Rating: 0.35 A
• Light Output: 265 Lumens/3328 cd
• Housing material: Cast Metal Base/Polycarbonate Dome
• UNSPSC: 39111706
• Series: 52 Series
• Application: Indoor / Outdoor
• Material: Polycarbonate (Dome)
• Mounting Type: NPT Conduit or Surface
• Lens Color: Green
• Light Type: Halogen
• Height: 8-1/2 in.
• Width: 6 in.
• MPN: 52G-N5-40WH
• Product Type: Visual Signals
• Product Family: 52, 53 & 53D Series
• Product Category: Safety Equipment
• CUSTOM_Product Type2: Rotating Beacons
• Shape: Cylindrical
• Temperature Rating: -31 to 150 deg F
• Type: Weatherproof
• Wattage: 40 W
• Flash Rate: 65 fpm
• Standard & Approvals: UL 1638, cUL, RoHS Compliant
