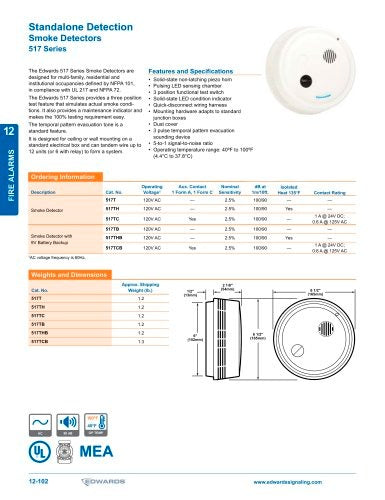

Edwards 517T Series Smoke Detector 120V AC (Ceiling/Wall)

Product Description

The Edwards 517T is a 120V AC smoke detector designed for multi-family, residential, and institutional occupancies and complies with UL 217 and NFPA 72. It provides a three-position test switch, pulsing LED sensing chamber and a three-pulse temporal-pattern evacuation tone, with a solid-state non-latching piezo horn rated at 100/90 dB at 1 m/10 ft. The unit mounts to a standard ceiling or wall electrical box and can tandem-wire up to 12 units.

• Three-position functional test switch, pulsing LED sensing chamber, and solid-state LED condition indicator.
• Three-pulse temporal-pattern evacuation tone produced by a solid-state non-latching piezo horn (100/90 dB at 1 m/10 ft).
• Ceiling or wall mounting on a standard electrical box; tandem-wire up to 12 units (or 6 with relay); quick-disconnect wiring harness.

Product Highlights

120V AC smoke detector; 2.5% nominal sensitivity; 100/90 dB; ceiling or wall mount; tandem-wire up to 12 units; UL 217 and NFPA 72 compliant.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 517T
