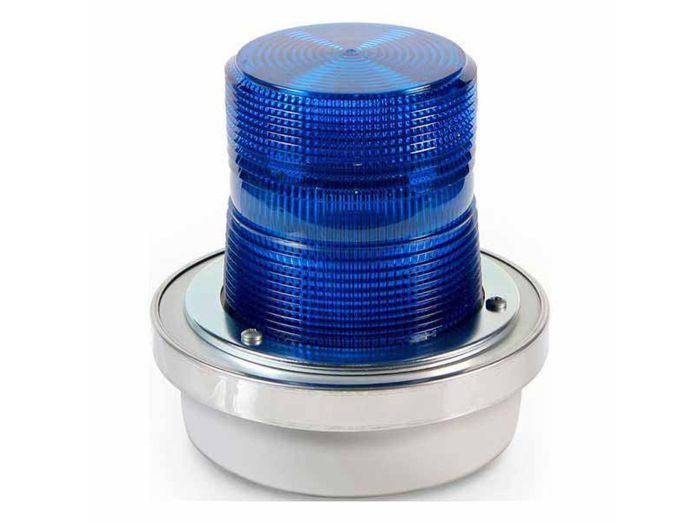

Edwards 50B-N5-40WH AdaptaBeacon Flashing Beacon 40 W

Product Description

The Edwards 50B-N5-40WH AdaptaBeacon flashing light provides a bright visual indication using special optics within a shatter-resistant polycarbonate lens. The polycarbonate double fresnel lens ensures efficient light dispersion. It is suitable for indoor or outdoor applications where an intermittent light source is required.

• Double fresnel lens is made of shatter resistant polycarbonate
• 1/2 in NPT conduit or surface mounting
• Cast metal base, polycarbonate lens

Product Highlights

The Edwards 50 Series AdaptaBeacon is designed for indoor and outdoor installation and is effective in high noise level areas.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 50B-N5-40WH
• Country of Origin: United States

Technical Specifications

• Brand: Edwards
• Manufacturer Part Number: 50B-N5-40WH
• Global Trade Identification Number: 00782640265147
• Number of Items: 1
• Manufacturer: Edwards Signaling
• Model Number: 50B-N5-40WH
• Housing Material: Cast Metal Base/Polycarbonate Lens
• Lamp Type: Halogen
• Lens Color: Blue
• Light Output: 265 Lumens
• Mounting Type: Surface
• Amperage Rating: 0.3 A
• Average Life: 25000 hr
• Catalog ID: EDW50B-N5-40WH
• Diameter: 6 in
• Flash Rate: 65 fpm
• Series: 50
• Temperature Rating: -35 to 66 deg C
• Voltage Rating: 120 VAC
• Wattage: 40 W
• Standard & Approvals: cUL Listed, RoHS Compliant
• Application: For indoor/outdoor applications
• Product Family: 50 Series
• Product Type: Visual Signals
• Product Category: Safety Equipment
• CUSTOM_Product Type2: Flashing Beacons
• Candle Power: 3.328k cd
• Lumens: 189 lm
• Material: Polycarbote Lens / Cast Metal Base
• Mounting: 1/2 in. NPT conduit or surface
• Shape: Cylindrical
• Type: Flashing Halogen
• UNSPSC: 39111706
• NEMA Rating: Indoor - Outdoor
• Voltage: 120 VAC
• Nominal Voltage: 120 VAC
• Hazardous Location: No
• Explosion Proof: No
• Candlepower: 3,328
• Lamp Wattage: 40 W
• Current Rating: 0.3 A
• Approvals: cUL, UL
• Connection: (1) 1/2 in. Hub
• Lens Material: Polycarbonate Lens
• Housing: Cast Base
• Flash Rate - fpm: 65 fpm
• Rating - Voltage: 120V AC
• Rating - Current: 0.26A
• Light Source: Halogen 40W
• Enclosure Application, Rating: Weatherproof
