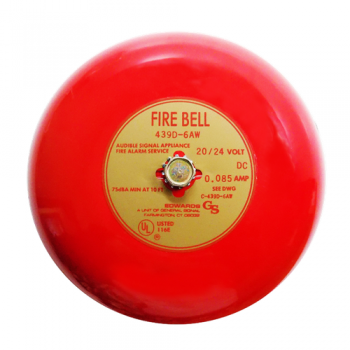

Edwards 439D-6AW-R Fire Alarm Bell 24V 6 Inch

Product Description

The EDWARDS 439D-6AW-R fire alarm bell is designed for fire alarm applications. It features a round, vibrating gong made of alloy steel for loud, resonant tones. The bell has a heavy-duty mechanism and is supplied with a mounting plate for standard single-gang openings. It is suitable for both indoor and outdoor use with an optional weatherproof back box.

• Vibrating and single stroke operation
• Gong made of selected alloy steel
• Heavy duty cast housing

Product Highlights

This 24V fire alarm bell is ideal for fire alarm systems requiring a loud, reliable audible signal. It features a durable construction and is suitable for various mounting options.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 439D-6AW-R
• Country of Origin: MEX

Technical Specifications

• Voltage Rating: 24 VDC
• Current Rating: 0.085 A
• Sound Intensity: 92 dB at 1 M, 82 dB at 10 Ft (Anechoic Chamber)
• Gong Size: 6 Inch Dia
• Housing Material: Heavy Duty Die-Cast
• Mounting: Surface, Wall
• Approvals: UL, CSFM, FM
• Series: 430D Series, 439 Series
• Brand: EDWARDS
• Manufacturer Part Number: 439D-6AW-R
• Manufacturer: Edwards Signaling
• Product Series: 439D
• Family Series: Edwards Signaling Audible Signaling Devices, 439D Series
• Nominal Voltage: 24 VDC
• Size: 6 "
