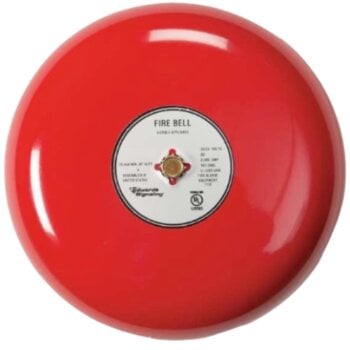

Edwards 438D-10N5-R Fire Alarm Bell 10 inches 120V AC

Product Description

The Edwards 438D-10N5-R fire alarm bells are diode polarized, vibrating bells designed for use with fire alarm control equipment. The gongs are made of select, alloy steel to sound the loud, resonant tone required in fire alarm systems. The 438D fire alarm bells are audible signaling appliances for installations that operate in conjunction with an installed fire alarm panel and detection devices.

• 6", 8" and 10" gong sizes
• Heavy duty die cast housing
• Steel alloy gong with red epoxy powder coating

Product Highlights

The Edwards fire alarm bells are for installations that operate with a fire alarm panel and detection devices. They feature a steel alloy gong with red epoxy powder coating.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 438D-10N5-R
• Country of Origin: Mexico

Technical Specifications

• ADI Part Number: ED-438D10N5R
• Brand Name: Edwards Signaling
• Manufacturer: Carrier
• Manufacturer Part Number: 438D-10N5-R
• Product Name: Vibrating Fire Alarm Bells Diode Polarized AC & DC Models
• Product Series: 438D
• Product Type: Alarm Bell
• Alarm Type: Audible
• Application/Usage: Outdoor
• Material: Steel
• Sound Emission: 98 dB
• Color: Red
• Form Factor: Box Mount
• Input Voltage: 120V AC
• Power Source: AC
• Diameter: 10"
• Mount Type: Box Mount
• Indoor/Outdoor: Outdoor
• Mounting: Surface, Wall
• Series: 430D Series
• Catalog Number: 438D-10N5-R
• Country of Origin: US
• Frequency Rating: 60 Hz
• Voltage Rating: 120 VAC
• Amperage Rating: 0.034 A
• Sound Level: 79 dB
• Gong Size: 10 in
• Specifications Met: CSFM Listed, UL Listed, FM Approved, MEA Listed
• MPN: 438D-10N5-R
• Model: 438D-10N5-R
• Type: Fire Alarm System Components
• UPC: 793016022837
• UNSPSC Code: 32120000
• Unit of Measure: EA
