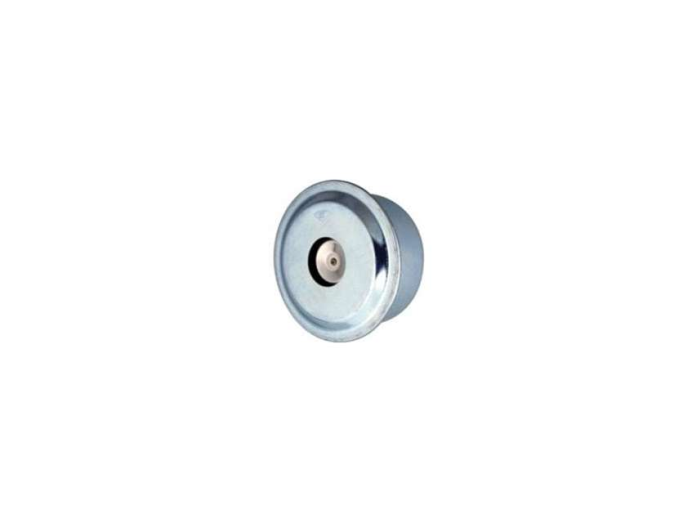

Edwards 123A-N5 120VAC Midi Horn

Product Description

The EDWARDS 123A-N5 is a vibrating horn with a voltage rating of 120VAC at 50/60 Hertz. It is designed for security systems and signaling devices. It has a sound intensity of 96 decibels at 1 meter and 86 decibels at 10 feet. It is supplied with a mounting bracket and screw for surface mounting.

• Voltage Rating: 120 VAC at 50/60 Hertz
• Sound Intensity: 96 dB at 1 meter, 86 dB at 10 feet
• Operating Temperature: -40 to 180 Deg F

Product Highlights

The EDWARDS 123A-N5 midi vibrating horn is ideal for alarm systems, security systems, and OEM signaling applications.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 123A-N5
• Country of Origin: TWN

Technical Specifications

• Type: Vibrating
• Voltage Rating: 120 Volt AC
• Current Rating: 0.04 A
• Power Rating: 4.8 Volt Amp
• Sound Intensity: 96 Decibel at 1 Meter, 86 Decibel at 10 Foot
• Mounting: Surface
• Application: Alarm, Computer, Data Monitoring System, Home Appliance, Office Machine, Security System, Timing Device
• Temperature Rating: -40 to 180 Deg F
• Manufacturer Part Number: 123A-N5
• Manufacturer: Edwards Signaling
• Family Series: Edwards Signaling Audible Signaling Devices
• Description: Midi Vibrating Horn, 120VAC, 92dB@1M/86dB@10Ft, 1-3/16in. Dia, 0.04A Current Draw (4.8VA)
• Nominal Voltage: 120 VAC
• Explosion Proof: No
• Hazardous Location: No
• Operating Temperature: -40-180 °F
• Brand: Edwards Signaling
• Decibel Range: 96 dB
• Decibels at 1 Meter: 96 dB
• Maximum Opening Temperature: 180 °F
• Minimum Operating Temperature: -40 °F
• Mounting Type: Surface Mount
• Primary Type: Horn
• Series: 123A Series
• Sound Level: 96 @ 1 m, 86 @ 10 ft. dB
• Supply Voltage: 120 VAC
• Temperature Range: -40 to 180 F
• Termination: Wire Lead
