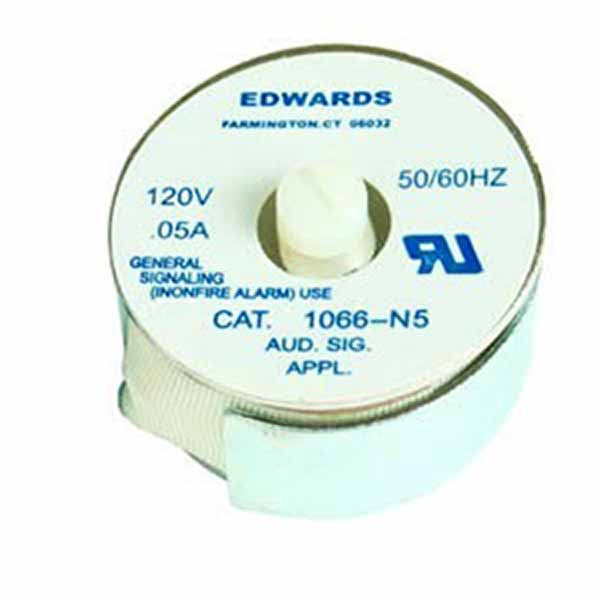

Edwards 1066-N5 Buzzer 120V60HZ

Product Description

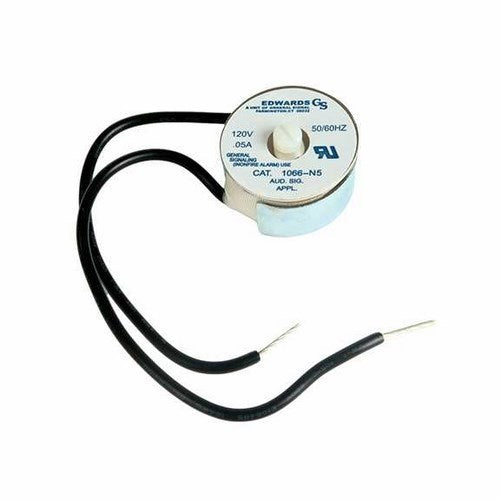

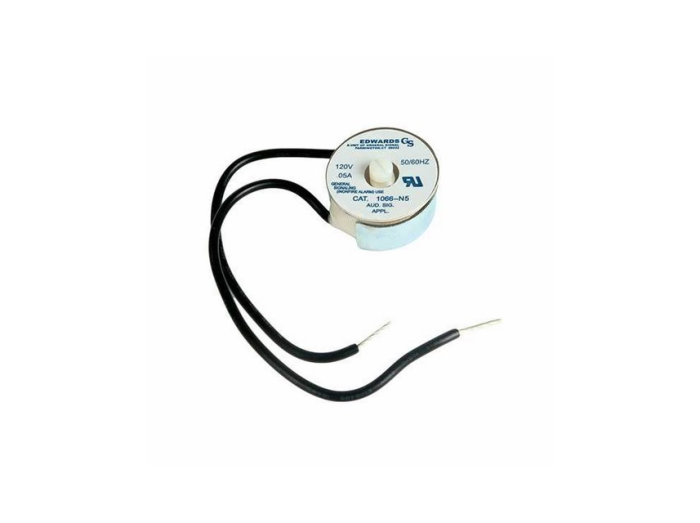

The Edwards 1066-N5 buzzer operates at 120V60HZ. This buzzer is designed for standard outlet box installation and includes leads for wiring connections. It features an adjustable volume and a zinc-plated finish. Its low power drain permits long wire runs, making it suitable for various applications.

• Adjustable volume buzzer
• Operating voltage: 120 VAC at 50/60 Hz
• Low power drain permits long wire runs

Product Highlights

The Edwards 1066-N5 is a low-cost, quality buzzer widely used in homes, apartment houses, plants, and OEMs.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 1066-N5
• Country of Origin: TW

Technical Specifications

• Brand: Edwards Signaling
• Manufacturer Part Number: 1066-N5
• Supply Voltage: 120 VAC
• Operating Voltage: 120 V AC
• Product Family: 1066 Series
• Product Type: Audible Signals
• Unit Type: Audio
• Product Category: Safety Equipment
• Loudness: 84/74 dB at 1M
• Mounting: Strap Mount
• Operating Current: 50m A
• Type: Vibrating
• Manufacturer: Edwards Signaling
• Model: 1066-N5 EDWARDS
• Volts AC: 120
• Amps: 0.050
• Product Series: 1066
• Description: Buzzer 120VAC
• Voltage: 120 VAC
• Nominal Voltage: 120 VAC
• Current Rating: 0.05 A
• Weatherproof: No
• Explosion Proof: No
• Hazardous Location: No
• Net Weight: 0.125 lbs
• Gross Weight: 0.155 lbs
