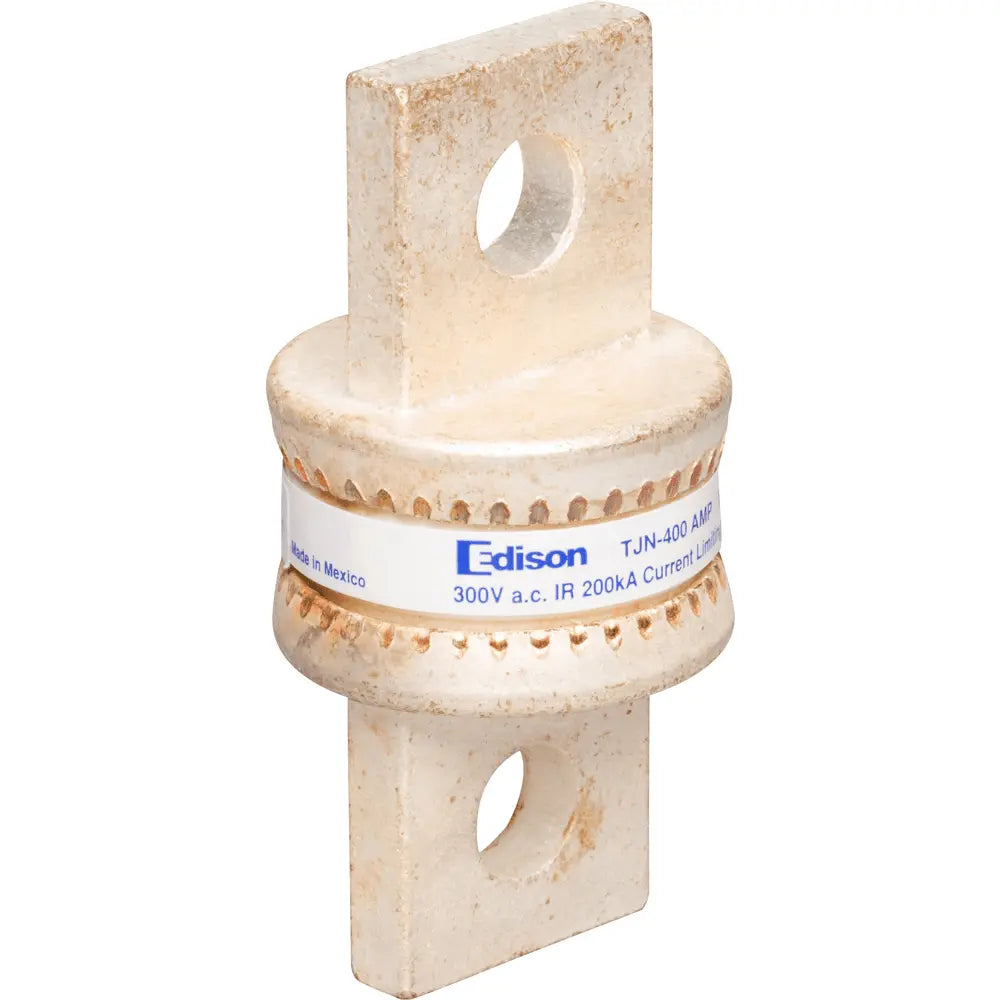

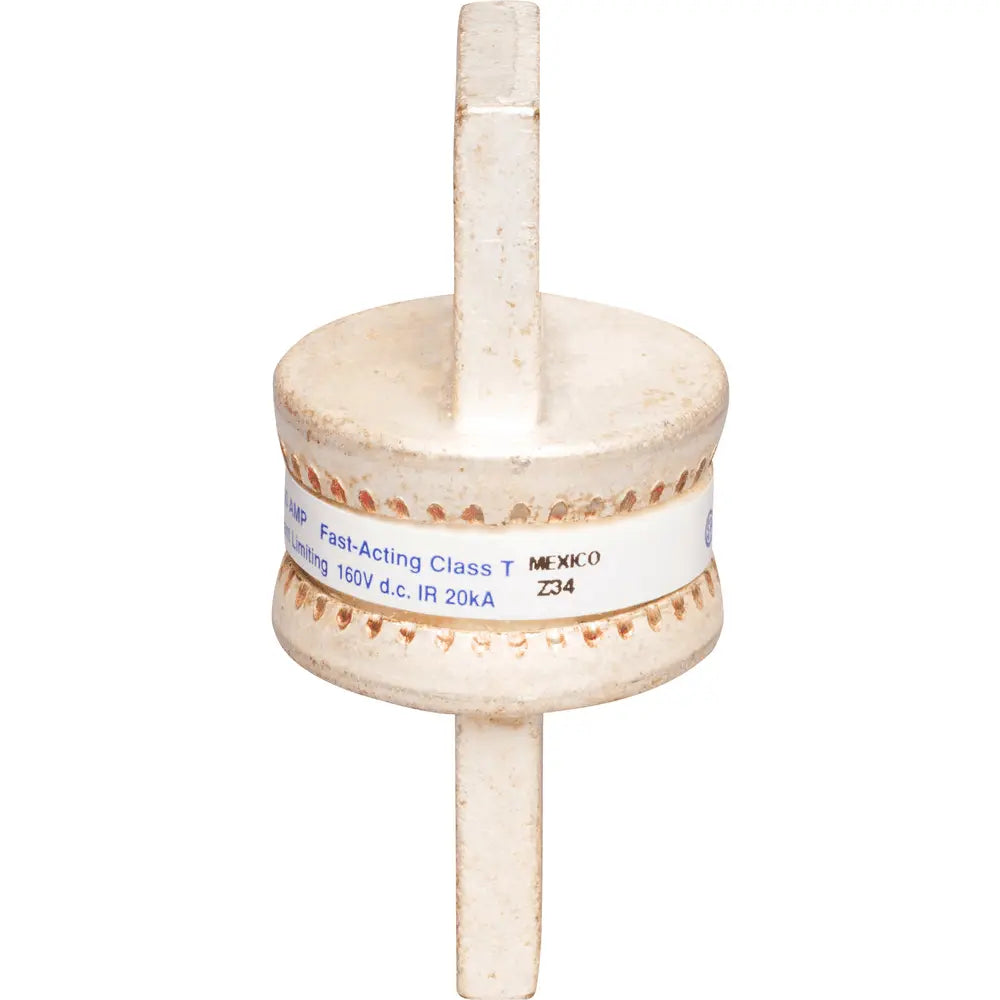

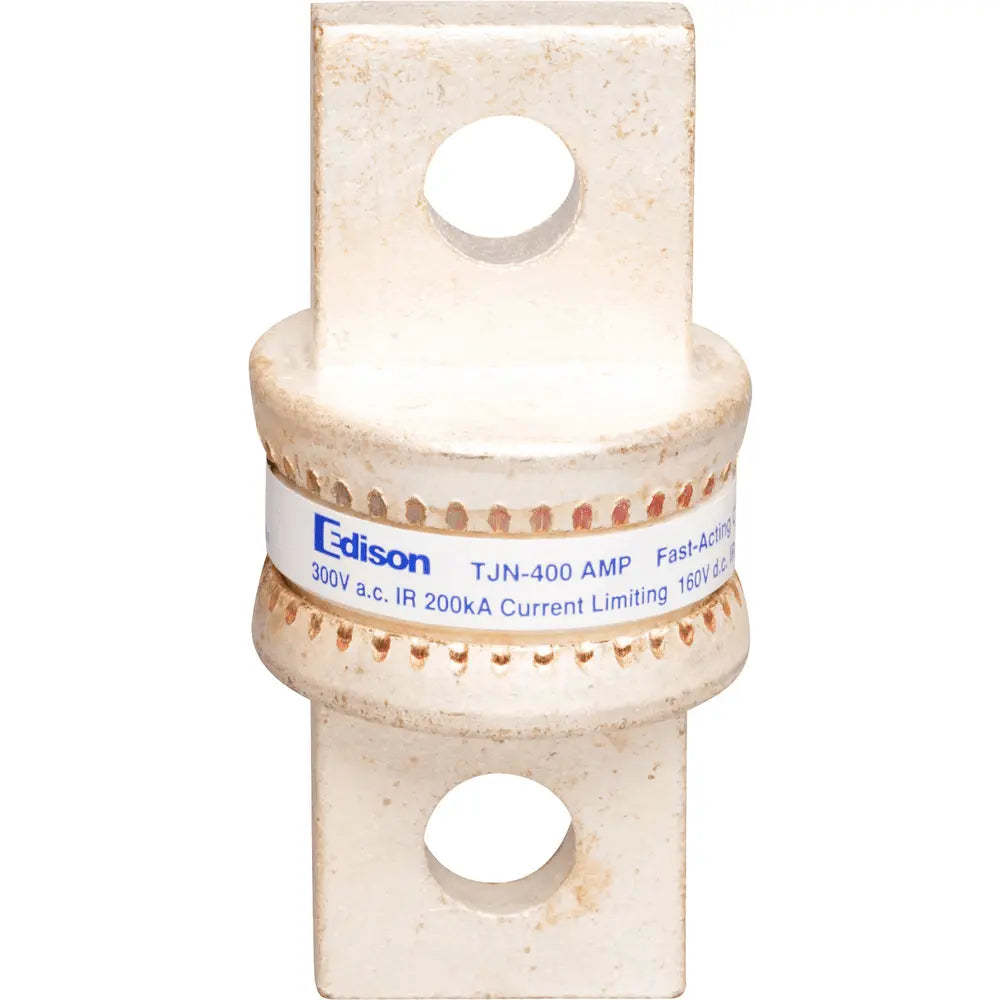

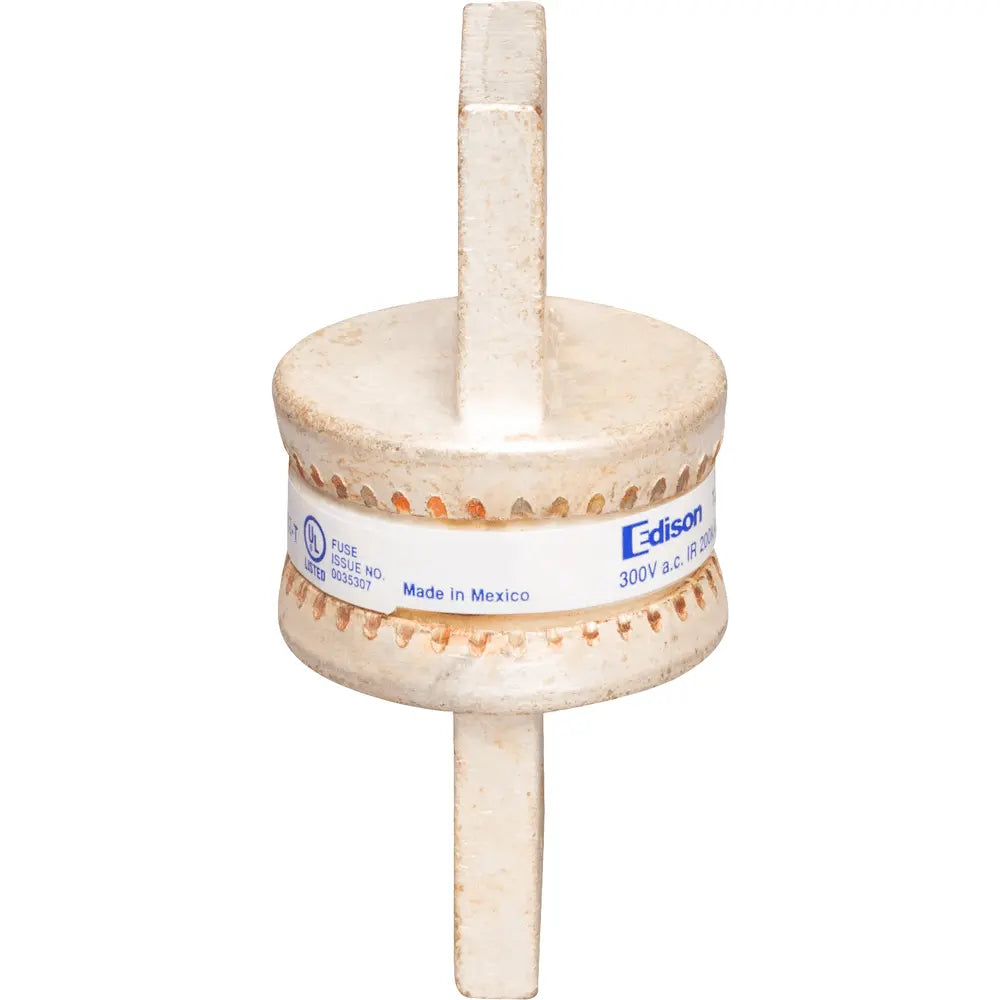

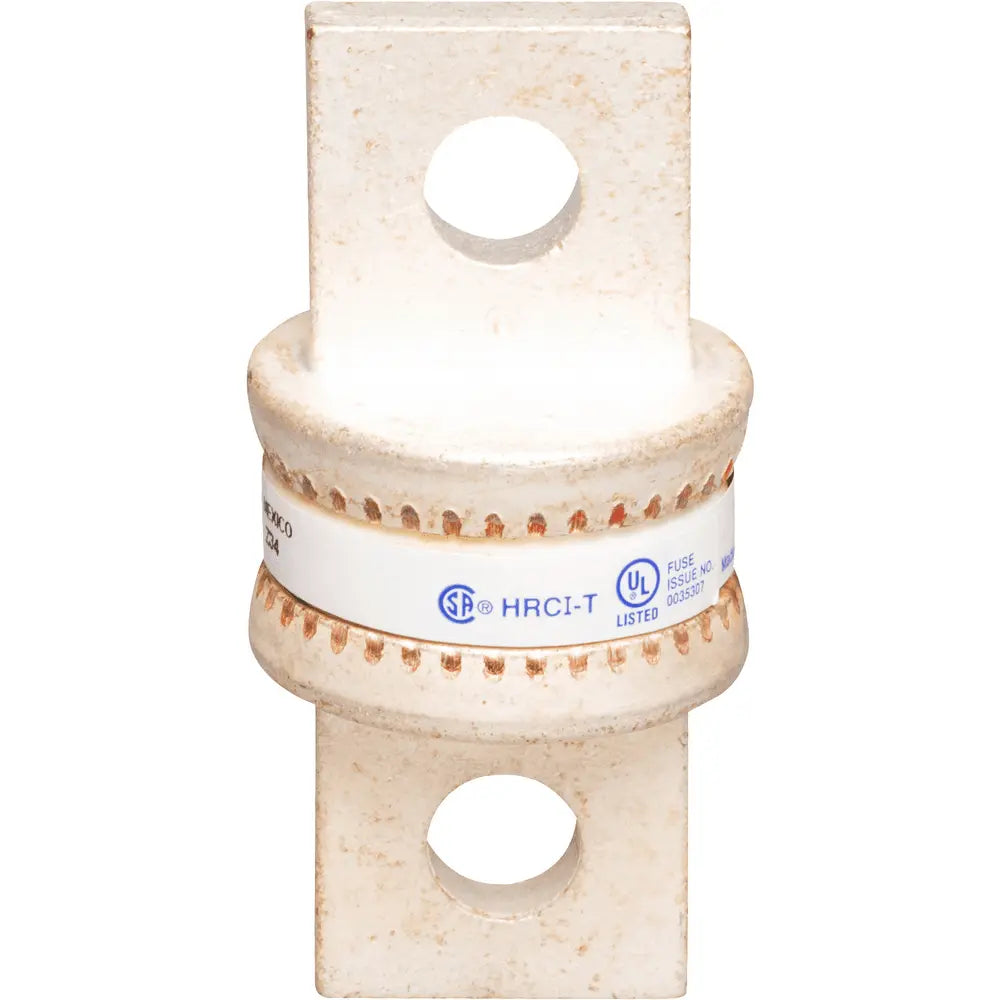

Edison TJN400 400A TJN Very Fast-Acting Fuse, Class T, Non-Indicating, 20 kAIC, 160 VDC

Product Description

The Edison TJN400 is a very fast-acting fuse designed to protect electrical components. It features a non-indicating design and can handle up to four hundred amps at a maximum voltage of three hundred volts. This fuse is ideal for use in various applications where reliable circuit protection is necessary.

• Fast-acting fuse for timely circuit protection.
• Non-indicating design helps maintain a compact build.
• Rated for use in environments requiring a voltage rating of three hundred volts.

Product Highlights

Compact size allows for installation in panelboards, providing effective short-circuit protection.

Product Information

Standard Information

• Brand: Edison
• Part Number: 0050-6769

Technical Specifications

• MPN: TJN400
• Voltage Rating: 300 VAC, 160 VDC
• Amperage Rating: 400 Amperes
• Frequency Rating: 50/60 Hertz
• Interrupt Rating: 20 kAIC
• Type: Class T - Fast-Acting
• Element: Single
• Country of Origin: MX
