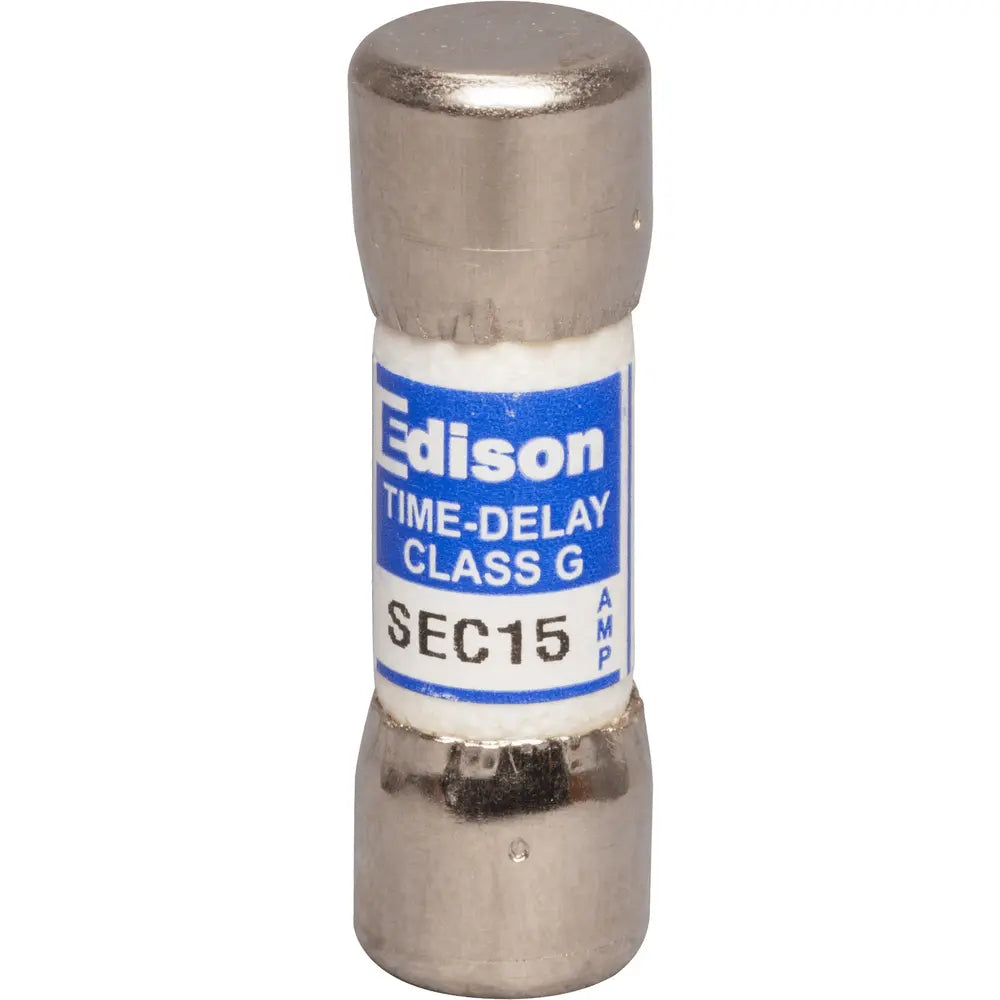

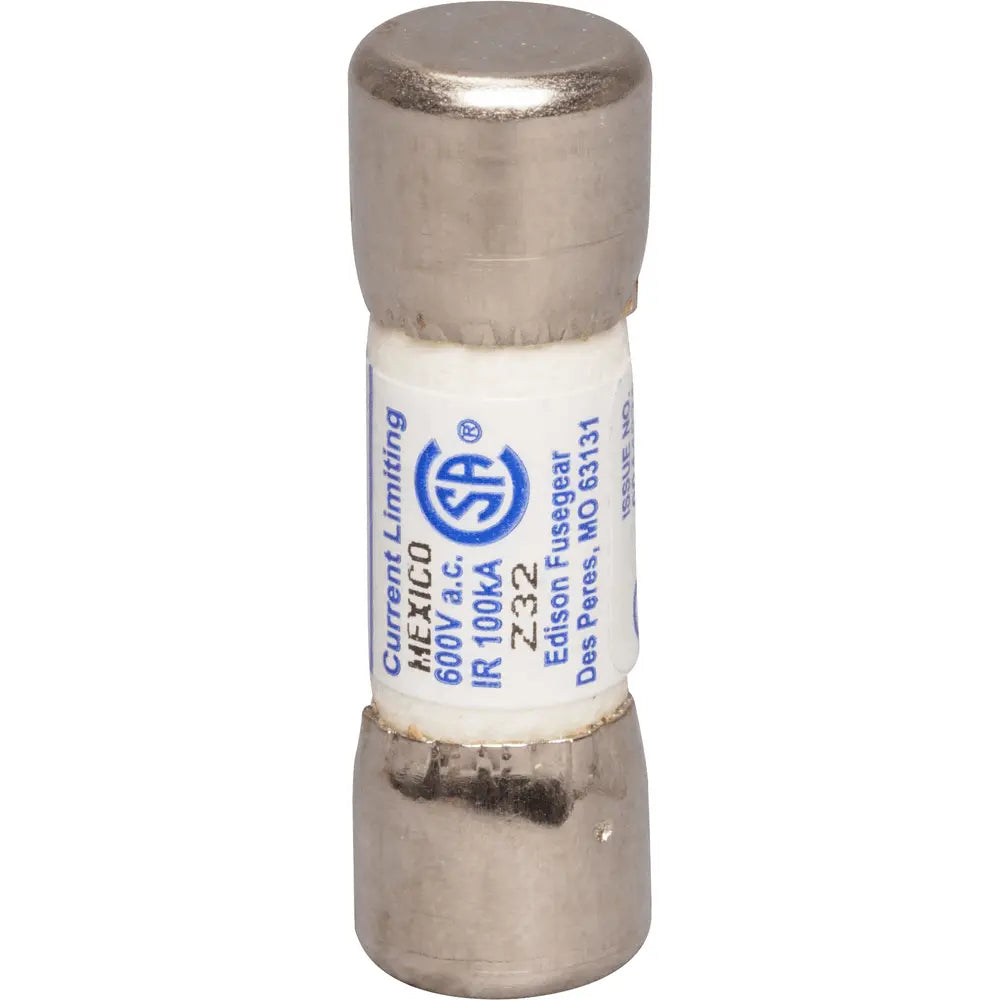

Edison SEC15 15A SEC Time-Lag Class G Fuse 600 VAC 170 VDC

Product Description

The Edison SEC15 fuse is a time-lag class G fuse rated for 15 amperes and designed to protect circuits operating at 600 VAC and 170 VDC. This fuse is suitable for general-purpose applications in 120/208 and 277/480 volt circuits. It is particularly effective in protecting fluorescent fixtures and handling light inductive loads such as motors and solenoids.

• Voltage Rating: 600 VAC, 170 VDC
• Amperage Rating: 15 Amperes
• Short Circuit Rating: 100 kAIC

Product Highlights

This fuse provides reliable protection for electrical circuits. It is ideal for applications that require time-delay functionality to manage inrush currents without nuisance blowing.

Product Information

Standard Information

• Type: Class G - Time-Delay
• Standard: CSA, UL

Technical Specifications

• Length: 1.31 inches
• Weight: 0.02 pounds
• Diameter: 0.41 inches
• Connection: Ferrule End
• Response Time: Time-Delay
• Country of Origin: MX
• Type Of Indicators: Non-Indicating
• Stock Code: 0050-5926
