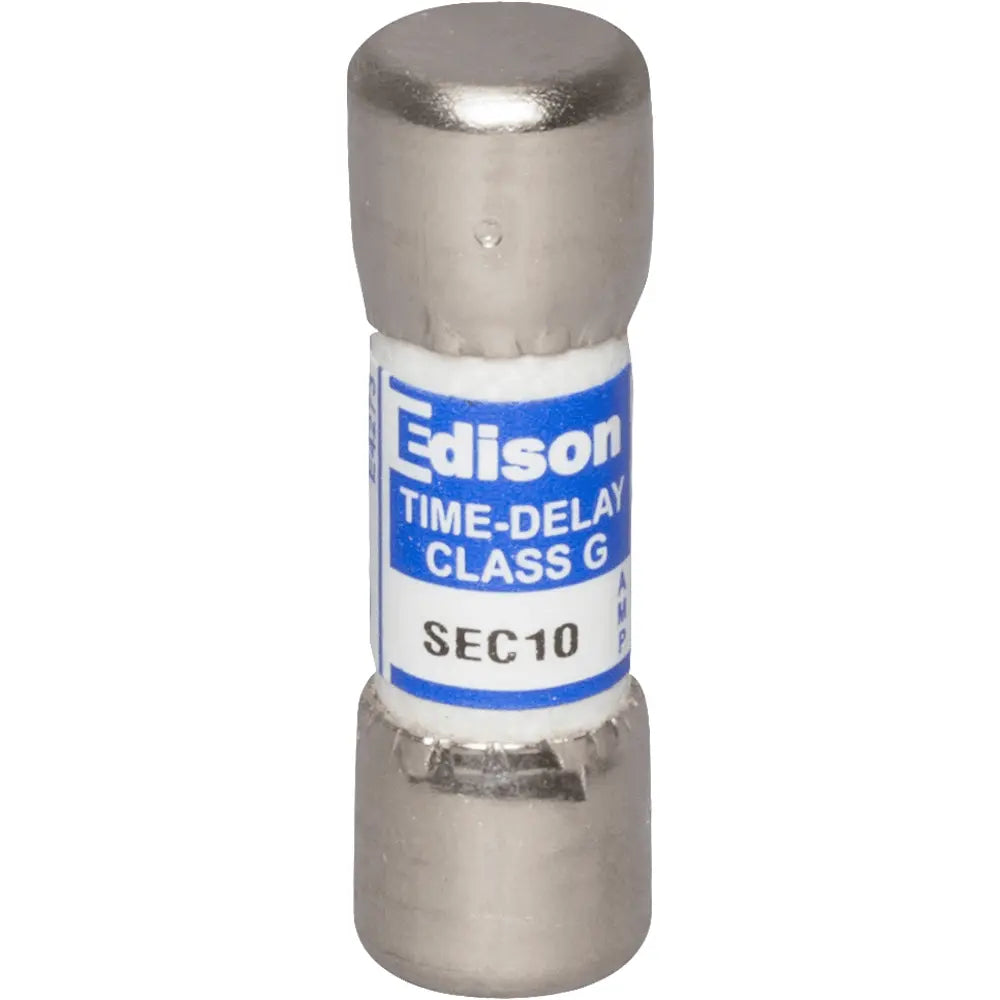

Edison SEC10 SEC Time-Lag Class G Fuse 600 VAC 170 VDC

Product Description

The Edison SEC10 is a time-lag Class G fuse with a voltage rating of six hundred VAC and one hundred seventy VDC. This fuse is suitable for use in circuits operating at one hundred twenty, two hundred eight, and two hundred seventy-seven, four hundred eighty volts. It is designed for the protection of fluorescent fixtures and can handle light inductive loads such as motors and solenoids.

• Voltage rating: 600 VAC, 170 VDC
• Amperage rating: 10 Amperes
• Type of fuse: Class G – Time-Delay

Product Highlights

The SEC10 fuse is essential for ensuring safety and functionality in electrical circuits, especially for protecting sensitive lighting and electrical components.

Product Information

Standard Information

• Brand: Edison
• UPC: 782634802372

Technical Specifications

• Length: 1.31 inches
• Weight: 0.02 pounds
• Diameter: 0.41 inches
• Standard: CSA, UL
• Connection: Ferrule End
• Response Time: Time-Delay
• Short Circuit Rating: 100 kAIC
• Country of Origin: MX
