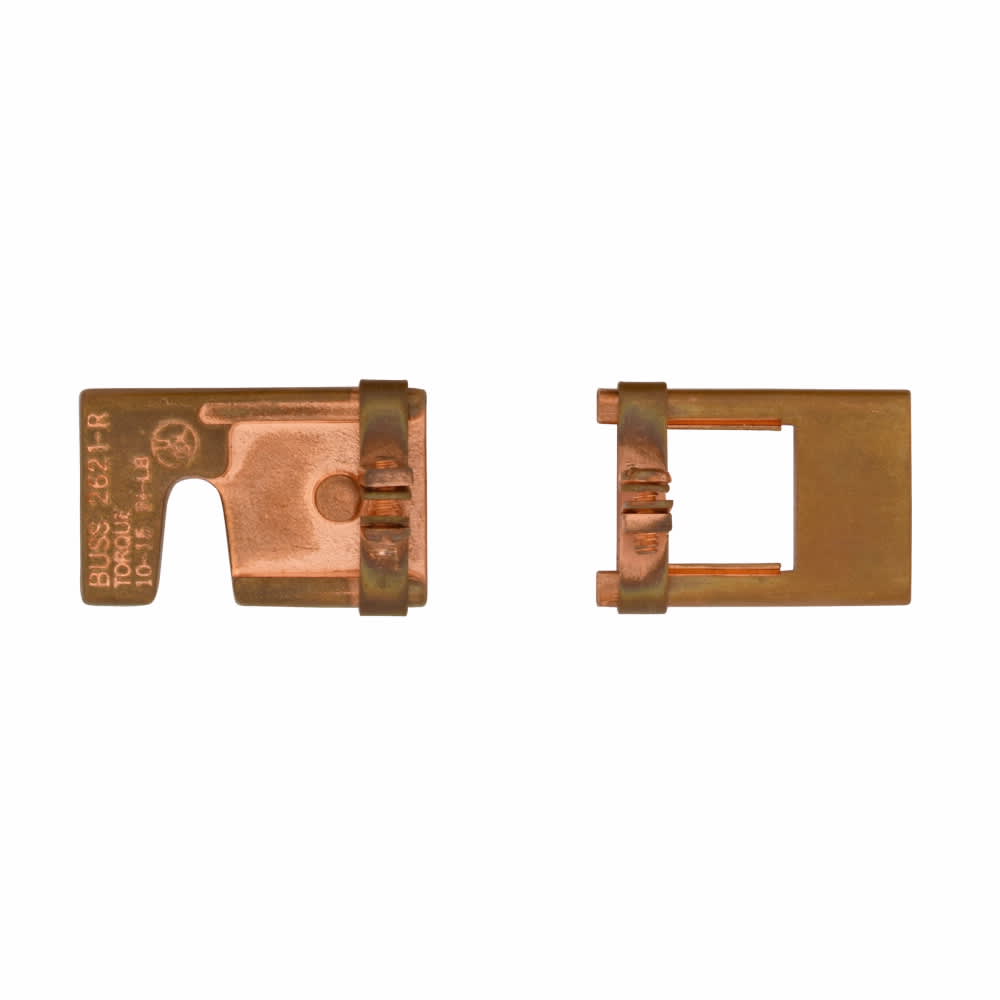

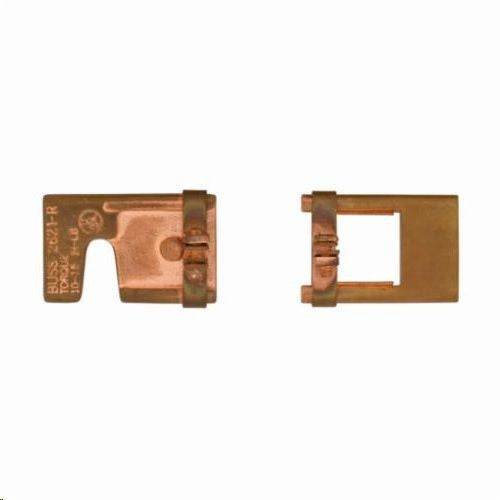

Edison NO.2621-R Class R Fuse Reducer 250 / 600 VAC 100A 200A

Product Description

The EDISON NO.2621-R is a Class R fuse reducer designed to enable the installation of smaller amperage fuses into fuse blocks or holders intended for larger fuses. This reducer is essential for applications that require Class R dimension fuses while ensuring reliable electrical and mechanical connections. Each carton contains ten pairs of these reducers.

• Class R fuse reducer
• Allows sixty-five to one hundred amp fuses to fit a two hundred amp fuse block
• Compatible with FRN-R, LPN-RK, FRS-R, LPS-RK, KTN-R, KTS-R series Class R fuses

Product Highlights

The EDISON NO.2621-R maintains strong contacts both mechanically and electrically, ensuring efficient operation within electrical systems.

Product Information

Standard Information

• Brand: EDISON
• MPN: NO.2621-R

Technical Specifications

• Type: Fuse Reducer
• Class: Class R
• Amperage Rating: 65 to 100 A
• Voltage Rating: 250 V, 600 V
• Certifications: UL Listed, CSA Certified, RoHS Compliant
• Product Length: 13.9 inches
• Product Height: 9.7 inches
• Product Width: 11.4 inches
• Product Weight: 56 lb
