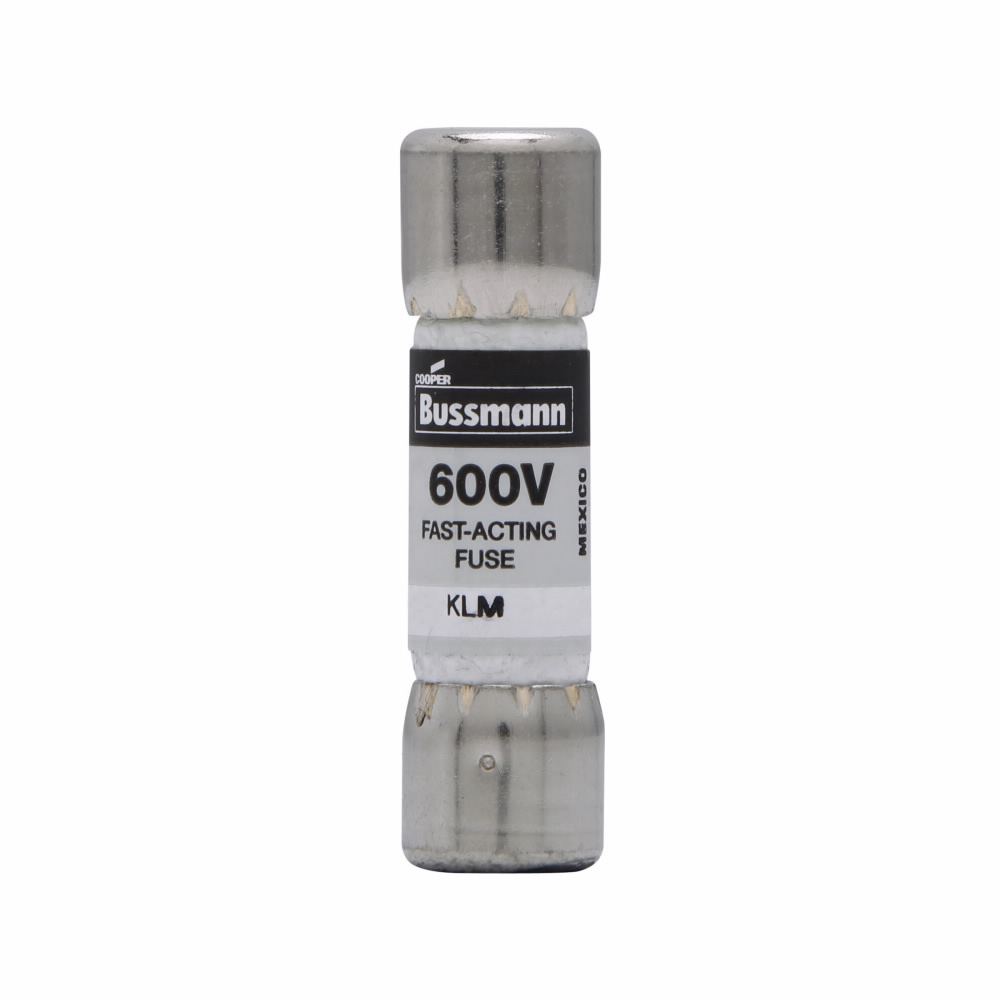

Edison KLM-1 Bussmann KLM1 600v 1amp Fast-Acting 13/32 x 1-1/2 Midget Fuse

Product Description

The Edison KLM-1 is a Bussmann midget fuse designed for various electrical applications. This fast-acting fuse has a voltage rating of 600 volts and a current rating of one amp. The size of the fuse is thirteen thirty-seconds of an inch in diameter by one and one-half inches in length.

• Fast-acting design suitable for protecting circuits
• Voltage rating of 600 volts for reliable performance
• Compatible with DC control circuits and solar energy systems

Product Highlights

The Edison KLM-1 fuse is engineered for quick response to overcurrent situations, making it essential for protecting sensitive equipment.

Product Information

Standard Information

• Brand: Edison
• Sub Brand: Bussmann Series

Technical Specifications

• Type: Fast Acting
• Voltage: 600 Volt
• Amperage: 1 Amp
• Size: 13/32 Inch Diameter x 1-1/2 Inch Length
• End Type: Ferrule
• Material: Bronze
• Standard: CE, CSA C22.2, UL 248-14
• Interrupt Rating: 100 kAIC
• Applications: DC Control Circuits, Solar Power Energy Sources
