Edison HM25030-3SR BLOCK FUSE 250VAC 30A H 18 TO 10AWG 3 H

Product Description

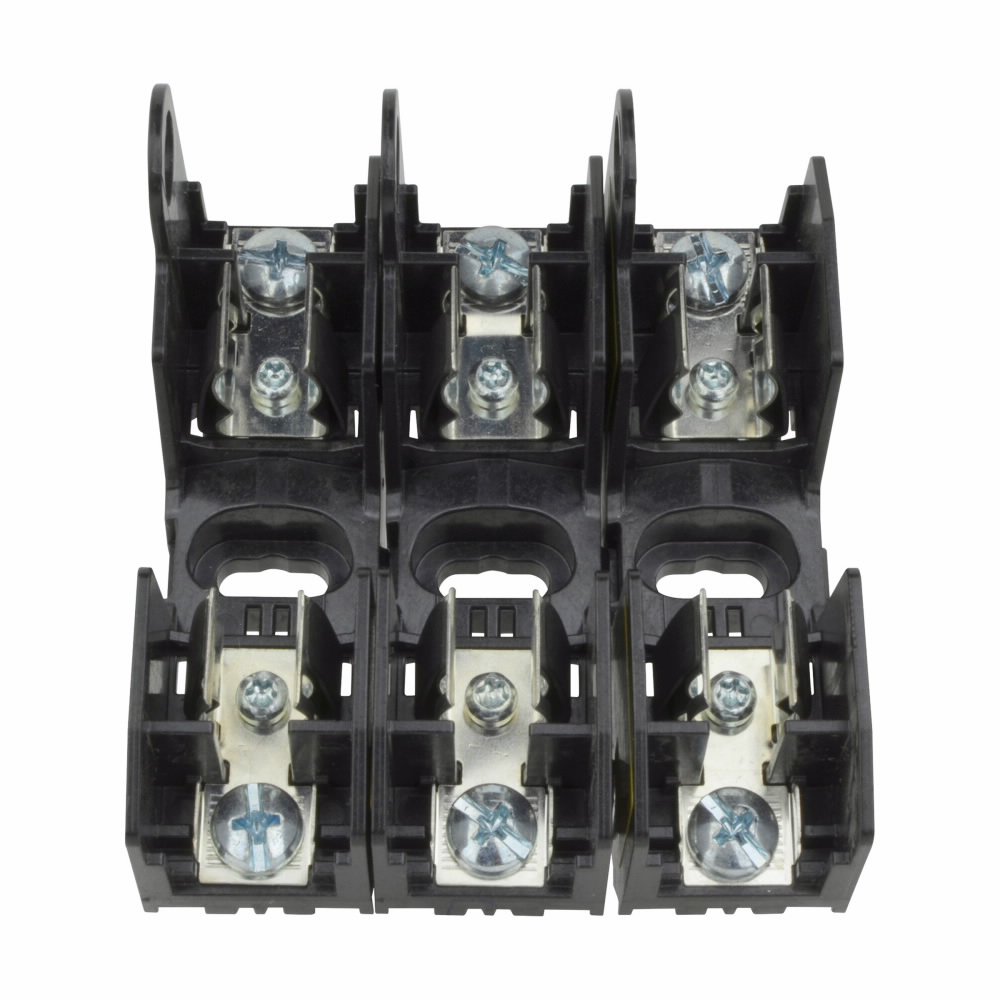

The Edison HM25030-3SR is a modular fuse block designed for power distribution. This fuse block operates at 250 volts and can handle up to 30 amps. It features three poles and is suitable for wire sizes ranging from eighteen to ten AWG.

• Modular design for easy installation.
• Suitable for DIN rail or panel mounting.
• Wide temperature rating from negative forty to one hundred twenty degrees Celsius.

Product Highlights

Designed for safety and reliability in electrical systems, this block enhances efficiency and simplifies assembly processes.

Product Information

Standard Information

• Manufacturer: EATON
• Brand: Edison

Technical Specifications

• Class: H
• Voltage Rating: 250 VAC
• Amperage Rating: 30 A
• Wire Size: 18 to 10 AWG
• Length: 3.2 inches
• Width: 2.9 inches
• Height: 1.4 inches
• Fuse Length: 2 inches
• Fuse Diameter: 0.56 inches
• Mounting Type: DIN Rail/Panel
• Temperature Rating: -40 to 120 degrees C
• Connection Type: 10-32 Philips Slot Screw
• Suitable For Use With: NON Series Ferrule Fuse
