Edison HM25030-1SR Modular Fuse Block 250VAC 30A H

Product Description

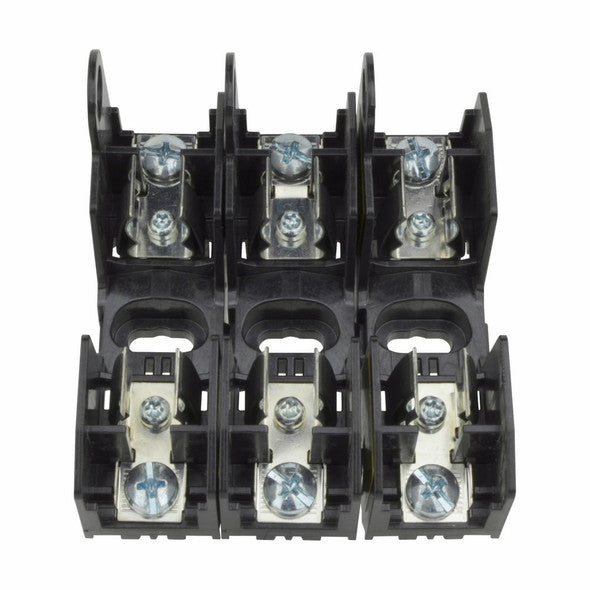

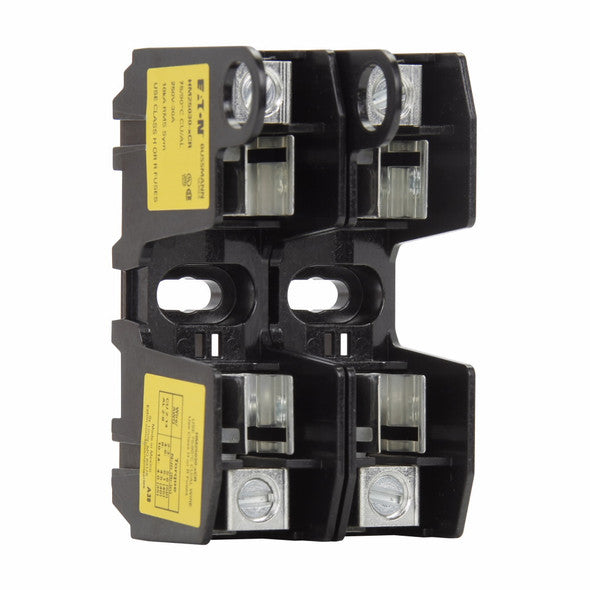

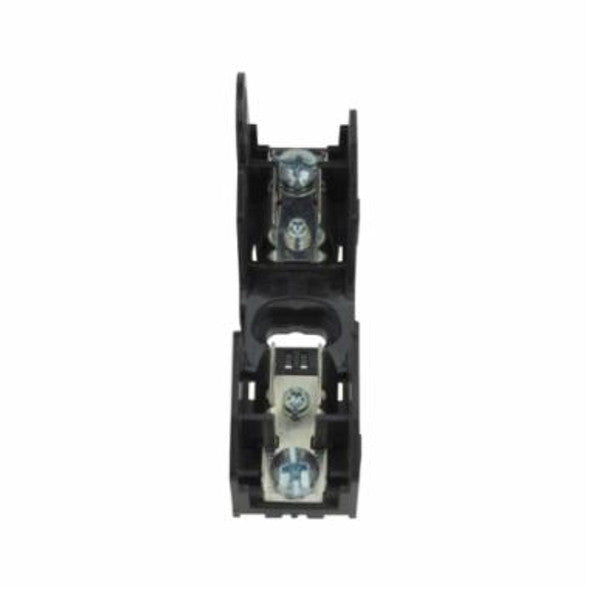

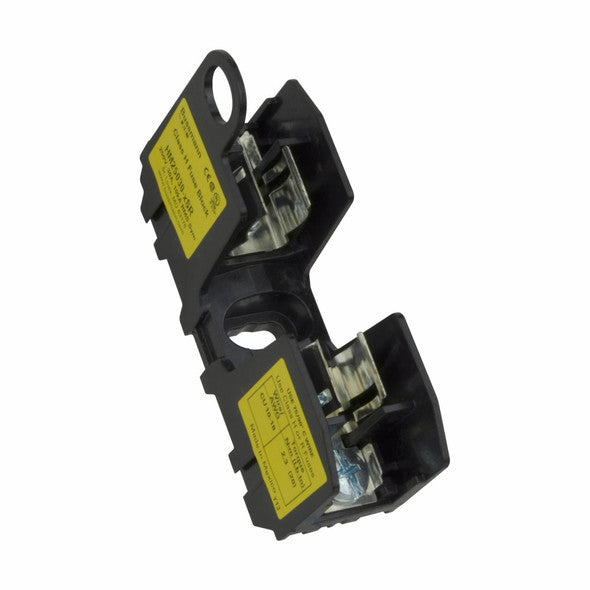

The Edison HM25030-1SR is a modular fuse block designed for safety in electrical panel systems. This product accommodates the full Class H(K) fuse amp range. It is available as a snap-together 1-pole version, which allows for easy assembly without tools. Factory-configured 2 and 3-pole versions are also available for various applications.

• Tool-less assembly for quick setup
• Mountable on DIN rail and panels for flexibility
• Fuse clip spring reduces temperature rise

Product Highlights

This modular design enhances efficiency in system installations and reduces the need for multiple parts.

Product Information

Standard Information

• Series: HM250
• Voltage Rating: 250 VAC

Technical Specifications

• Amperage: 30 A
• Poles: 1
• Class: H
• Wire Size: 18 to 10 AWG
• Mounting Type: DIN Rail/Panel
• Fuse Length: 2 inches
• Fuse Diameter: 0.56 inches
• Temperature Rating: -40 to 120 degrees C
• Terminal Type: #10-32 Phil-Slot Screw
• Material: Thermoplastic
• Dimensions: 3.2 inches L x 1 inch W x 2 inches H
