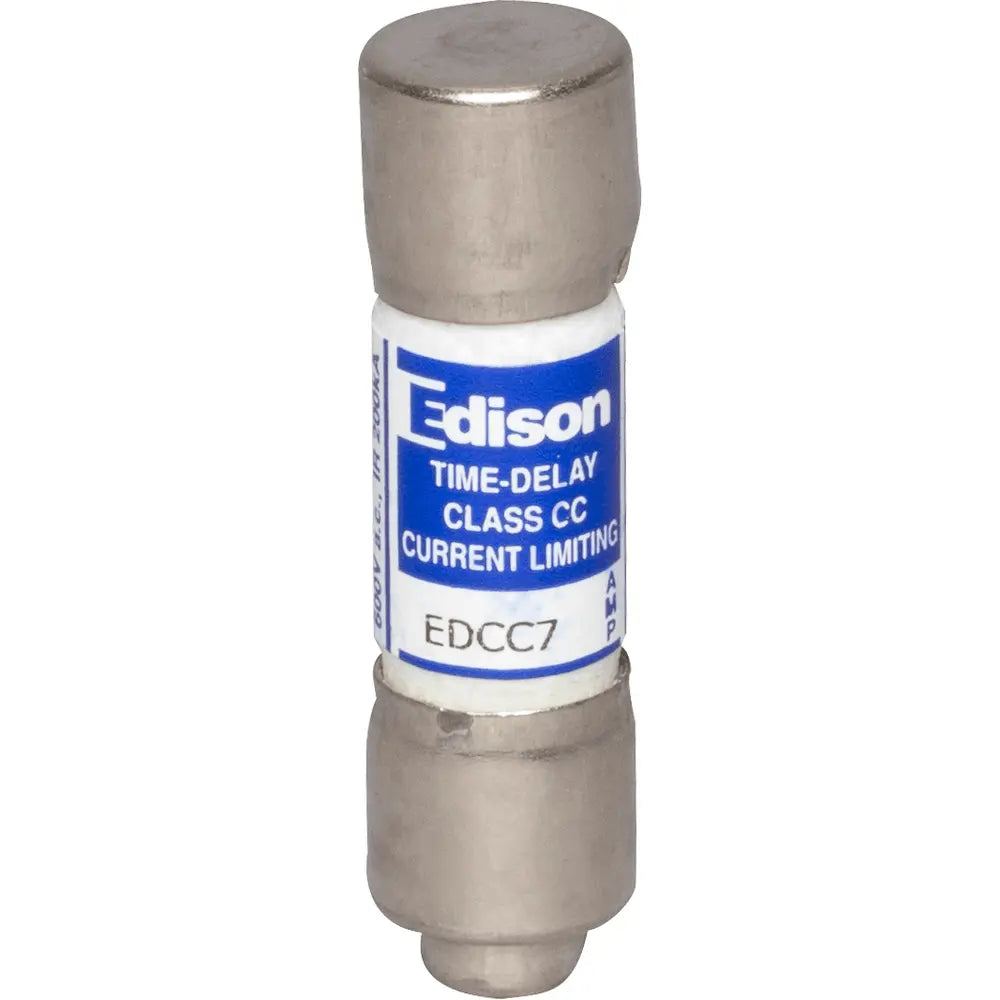

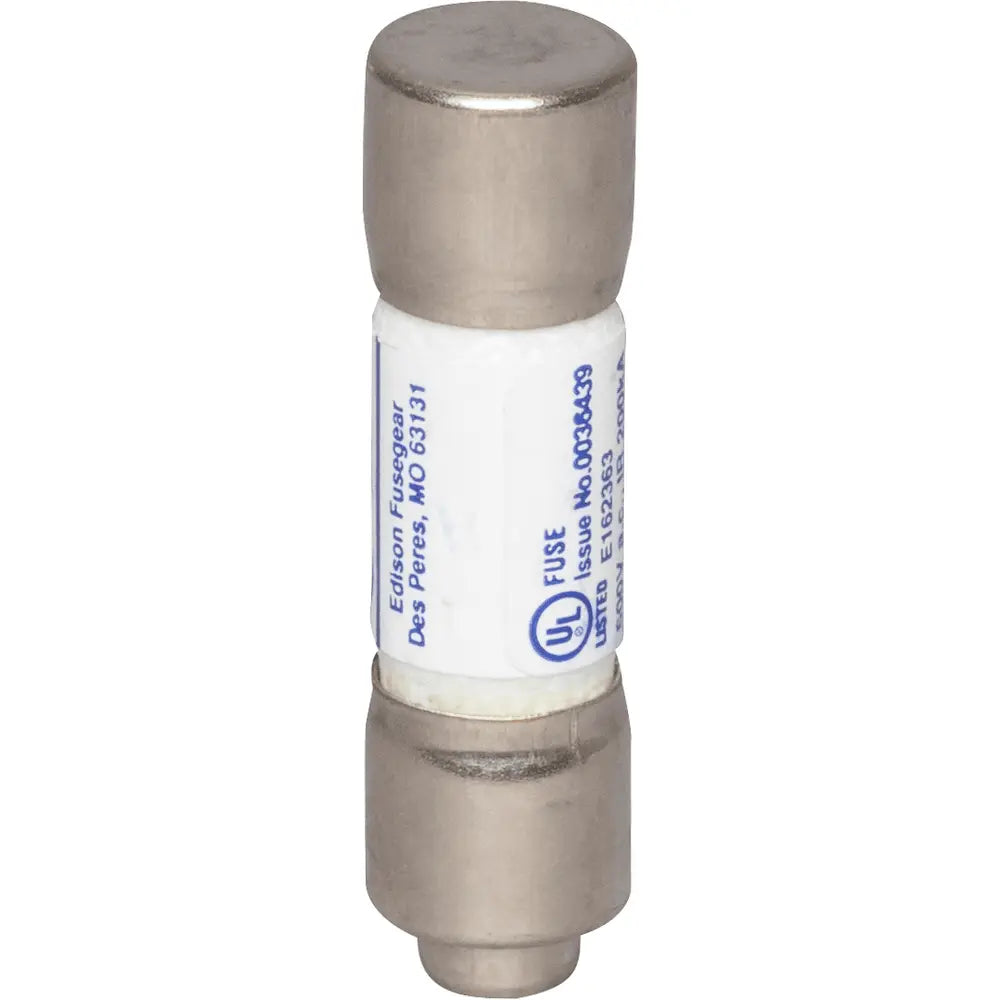

Edison EDCC7 7A EDCC Time-Delay Fuse 600 VAC/300 VDC 20 kAIC Non-Indicating

Product Description

The Edison EDCC7 is a time-delay fuse designed for specific safety applications in electrical circuits. This fuse operates at a voltage rating of six hundred volts alternating current and three hundred volts direct current, making it suitable for various setups. It features a current limiting design that minimizes the risks of overload by limiting the fault current.

• Time-delay capabilities enhance protection against overloads.
• Rated for seven amperes and a twenty kAIC interrupt rating.
• Compact design ensures easy installation and minimizes space requirements.

Product Highlights

This fuse provides reliable protection for small horsepower motor circuits, ensuring efficient operation and safety in your electrical systems.

Product Information

Standard Information

• Brand: Edison
• Part Number: 0050-5449

Technical Specifications

• Type: EDCC Time-Delay
• Class: CC
• Voltage Rating: 600 VAC, 300 VDC
• Amperage Rating: 7 Amperes
• Interrupt Rating: 20 kAIC
• Length: 1.5 Inches
• Diameter: 0.41 Inches
• Weight: 0.19 Pounds
• Connection: Ferrule End
• Type of Indicators: Non-Indicating
• Standard Compliance: CSA, UL
• Country of Origin: MX
