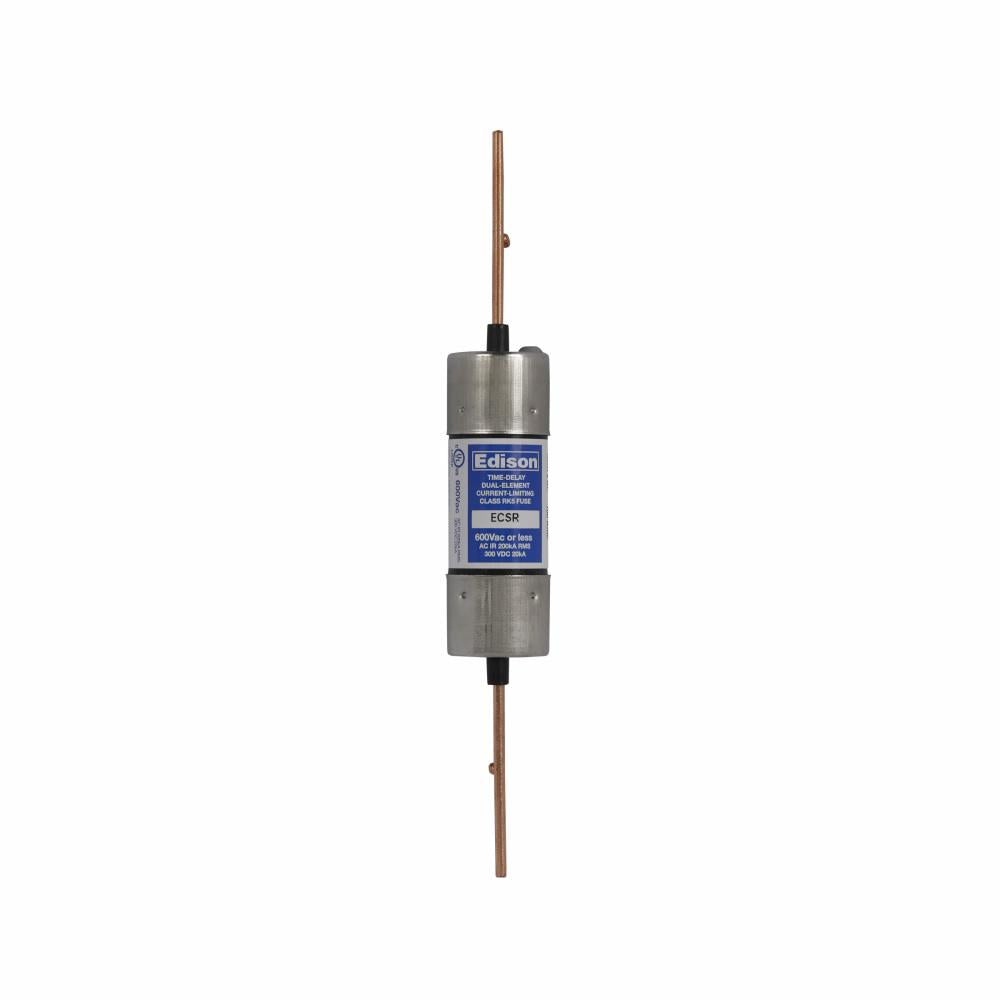

Edison ECSR70 Current Limiting Time Delay Fuse 70 A 600 V 200 kAIC Interrupt RK5

Product Description

The Edison ECSR70 is a current limiting time delay fuse designed for reliable overcurrent protection. It operates at seventy amps and is rated for six hundred volts. This fuse is part of the RK5 class and has a two hundred kA interrupting rating.

• Available in dual-element design
• Non-indicating functionality
• Fiberglass construction for durability

Product Highlights

This fuse provides effective overload protection and quick response during fault conditions.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Edison

Technical Specifications

• Body Size: 1.11 inches diameter x 7.88 inches length
• Element: Dual
• Indicating/Non-Indicating: Non-Indicating
• Material: Fiberglass
• Response Time: 10 seconds at 500%
• Series: ECSR
• Terminal Type: Blade End
• Type: Current Limiting Time Delay
• Amperage Rating: 70 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kAIC
• Class: RK5
