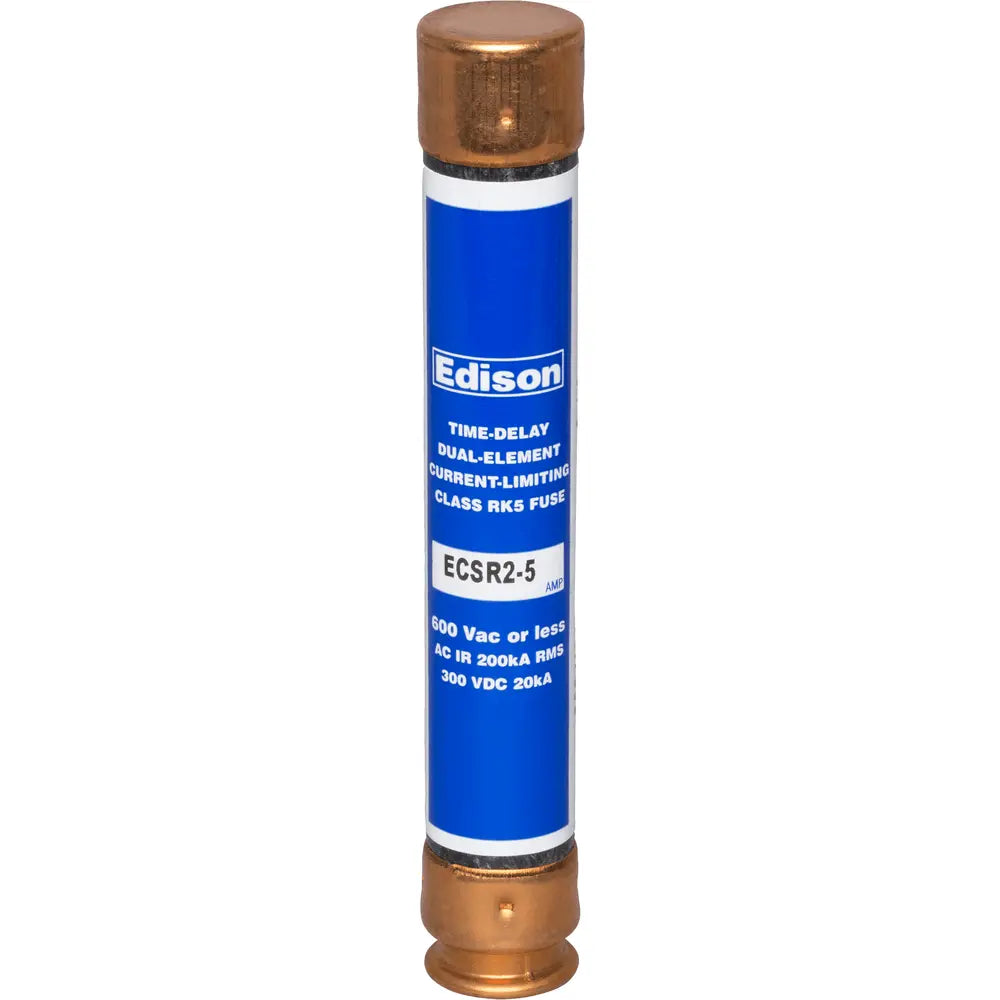

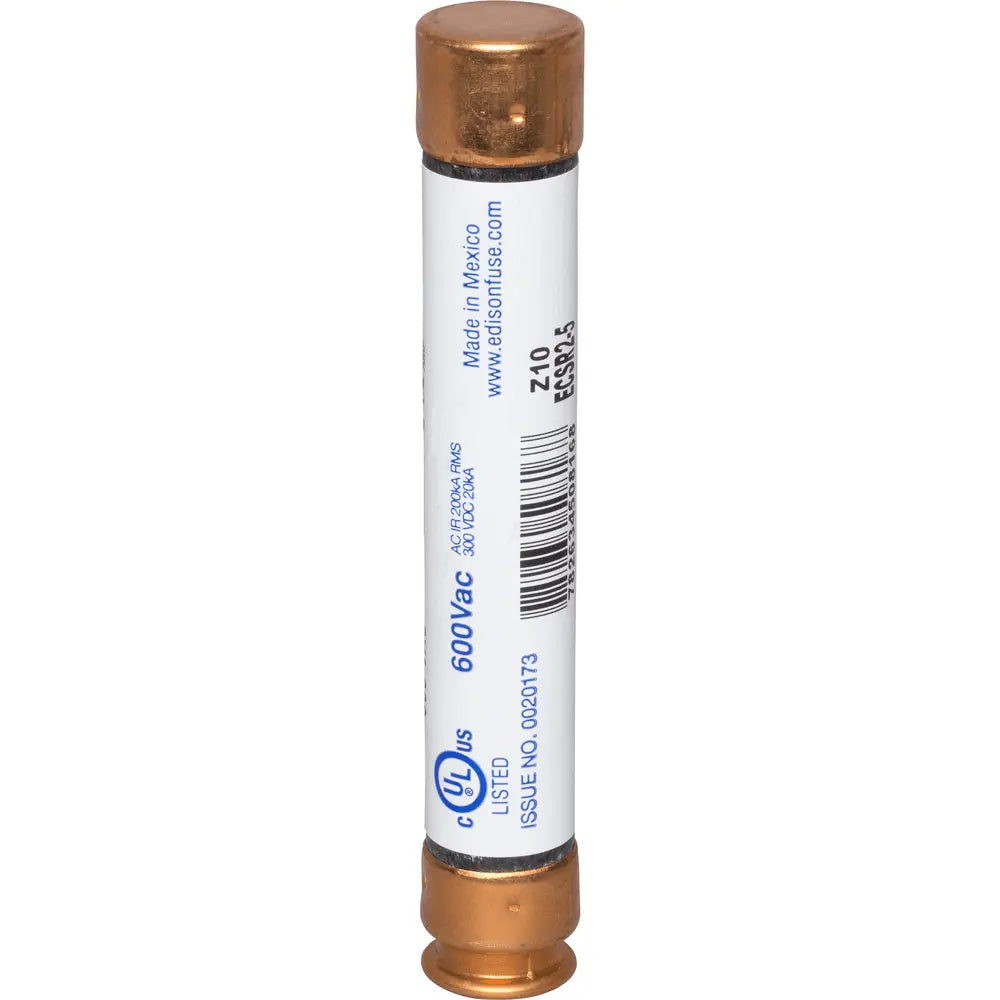

Edison ECSR25 2.5A ECSR Time-Delay Fuse Class RK5 600 VAC 200 kAIC

Product Description

The Edison ECSR25 is a 2.5 amperes time-delay fuse designed for circuits with inductive loads such as motors and transformers. This fuse provides protection against motor overloads, ground faults, and short circuits. It is suitable for AC power distribution in mains and branch circuits. The dual-element construction allows this fuse to handle surge currents effectively.

• Designed for motor and transformer protection
• Time-delay feature prevents nuisance trips
• Specifications meet CSA and UL standards

Product Highlights

This product is ideal for situations where short circuit current might exceed 200 kAIC, providing reliable protection for sensitive electrical components.

Product Information

Standard Information

• Brand: Edison
• MPN: ECSR25

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 2.5 Amperes
• Interrupt Rating: 200 kAIC
• Length: 5 inches
• Diameter: 0.81 inches
• Weight: 0.4 pounds
• Element: Dual
• Material: Copper
• Standard: CSA, UL
• Connection: Ferrule End
• Response Time: Time-Delay
• Country of Origin: MX
• Type of Indicators: Non-Indicating
