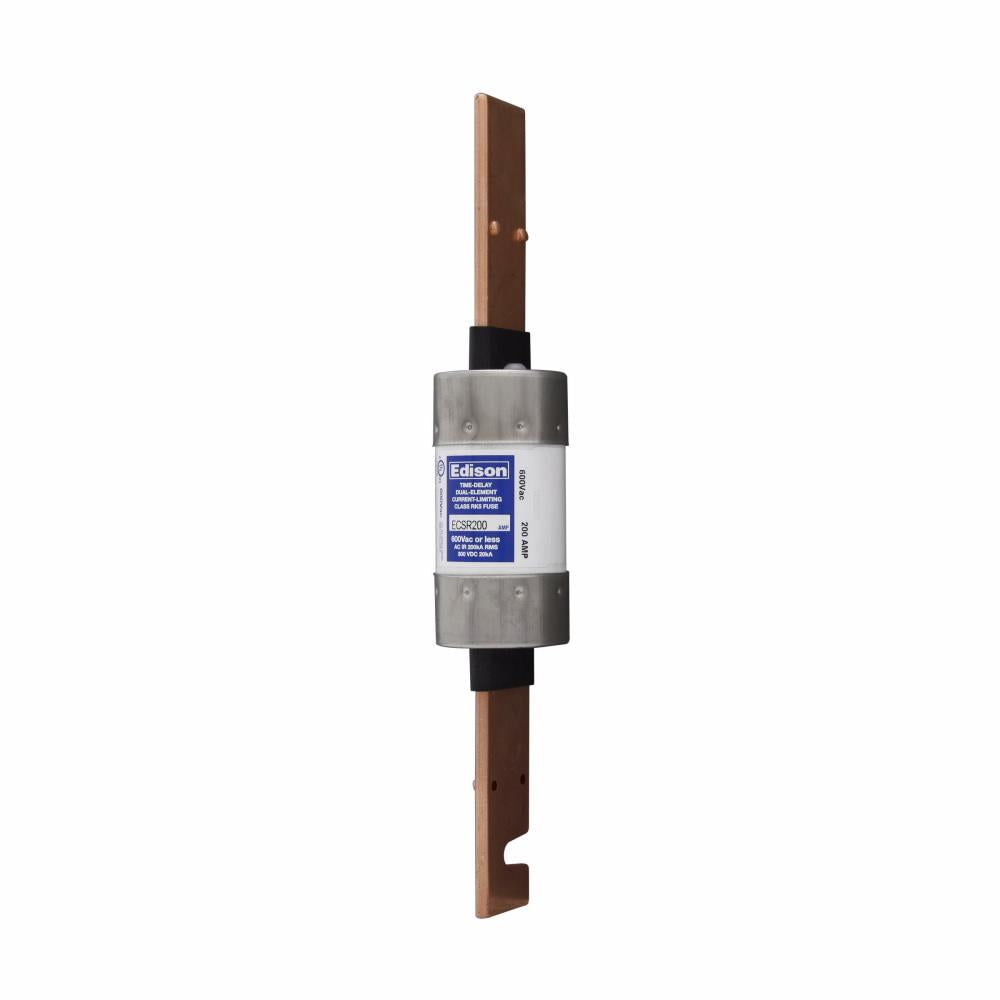

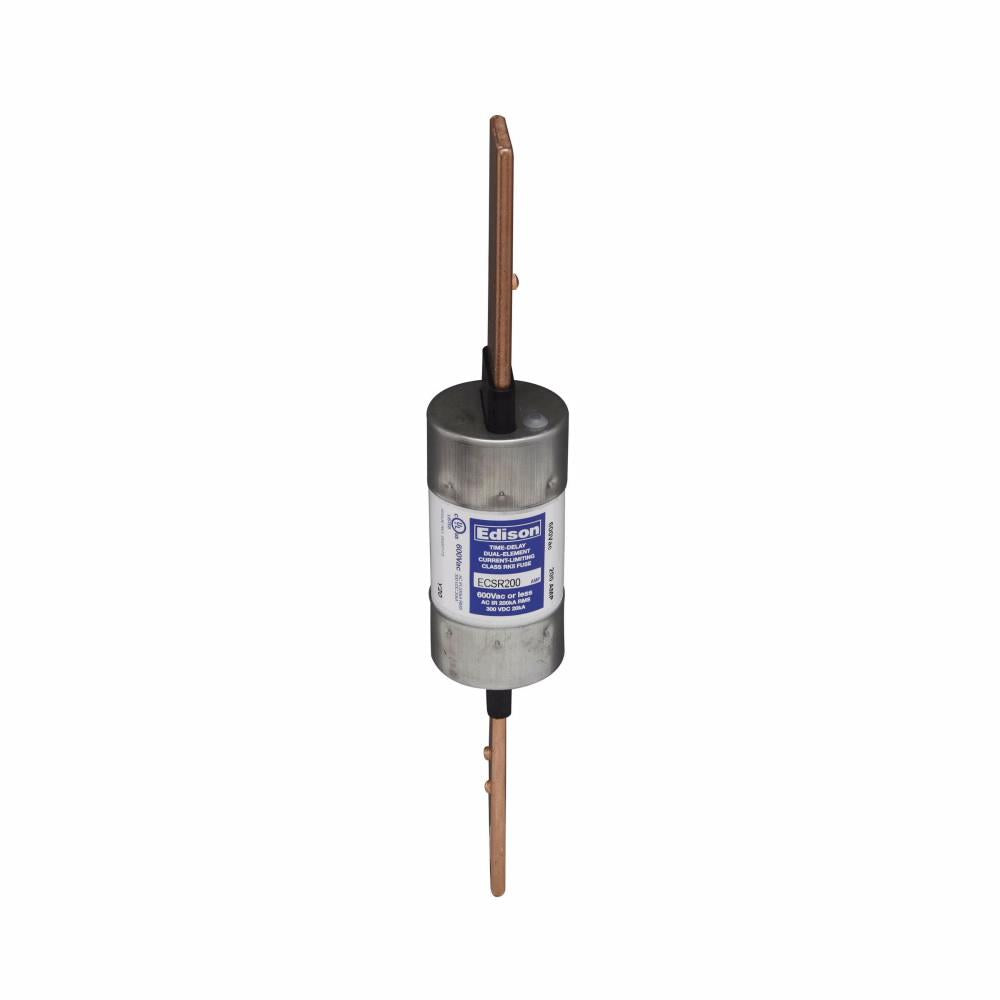

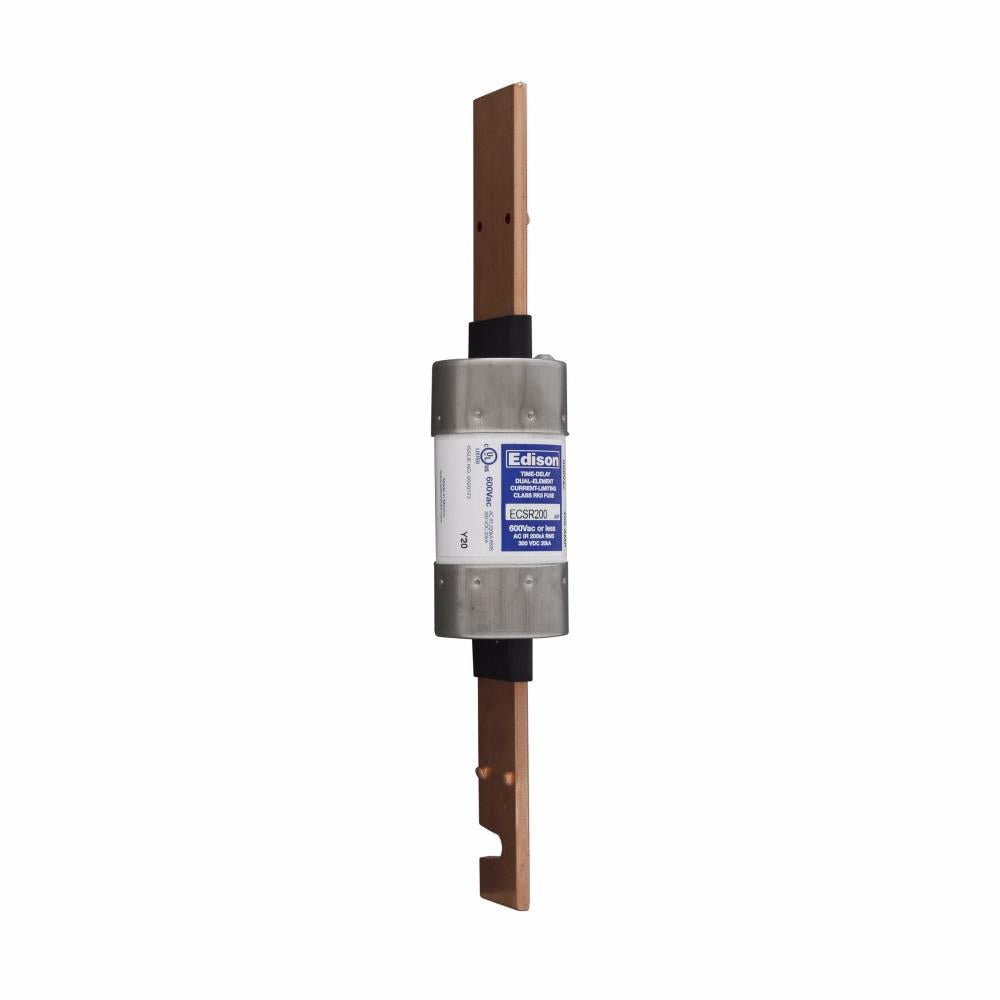

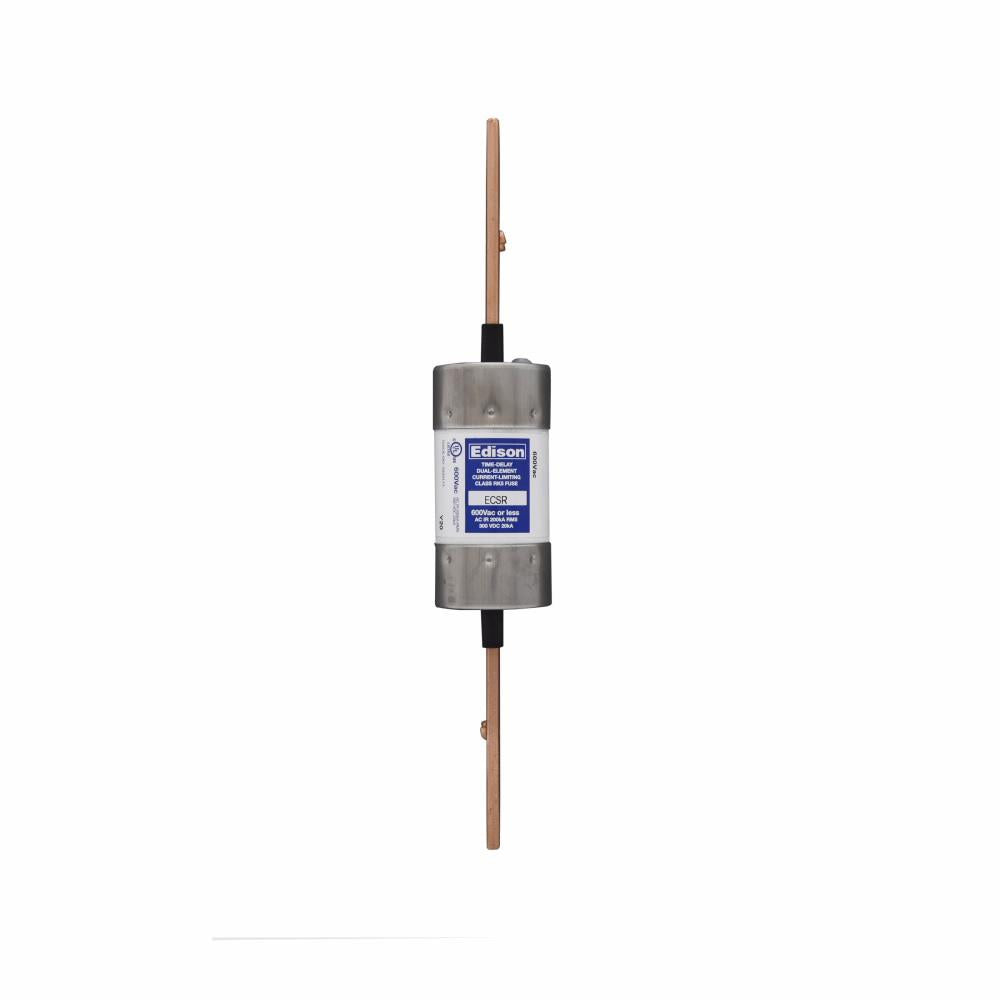

Edison ECSR150 BUSS ECSR150 UL Class RK-5 Time Delay 150 Amp

Product Description

Edison ECSR150 is a current-limiting fuse designed to provide superior protection against overloads and short circuits in electrical systems. This fuse is rated at 150 Amperes with a voltage capacity of 600 volts. The time-delay feature allows for safe operation under temporary overload conditions, making it ideal for use in AC power distribution systems, including mains, feeders, and branch circuits.

• Time-delay mechanism to handle surge currents
• 200 kA interrupt rating
• Dual element design enhances operational safety

Product Highlights

This fuse is designed for various applications involving inductive loads such as motors and transformers. The time-delay feature enables sizing closer to the running ampacity, reducing costs while providing effective overcurrent protection.

Product Information

Standard Information

• Brand: Edison
• MPN: ECSR150

Technical Specifications

• Type: Current Limiting Time Delay
• Class: RK5
• Amperage Rating: 150 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kAIC
• Response Time: 10 s at 500%
• Body Size: 1.61 inches diameter x 9.63 inches length
• Element: Dual
• End Type: Blade
• Material: Fiberglass
• Mounting Type: Holder
