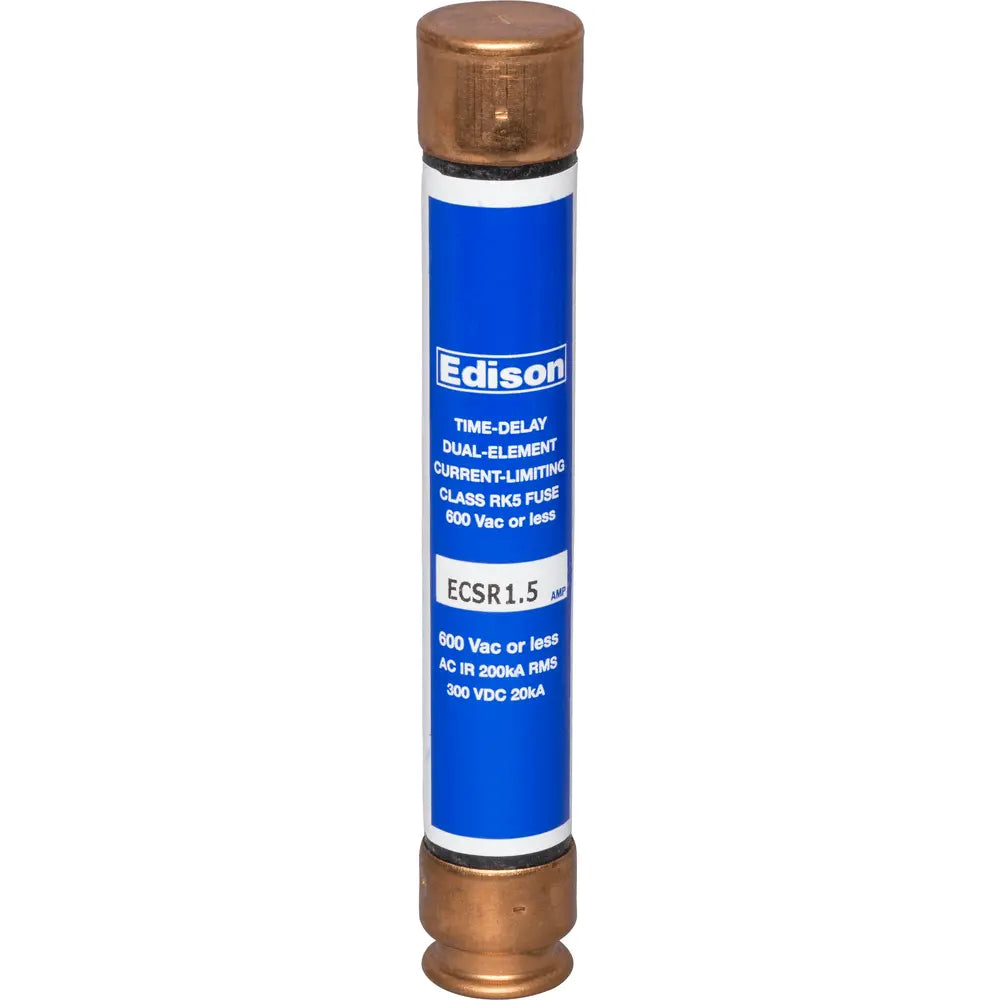

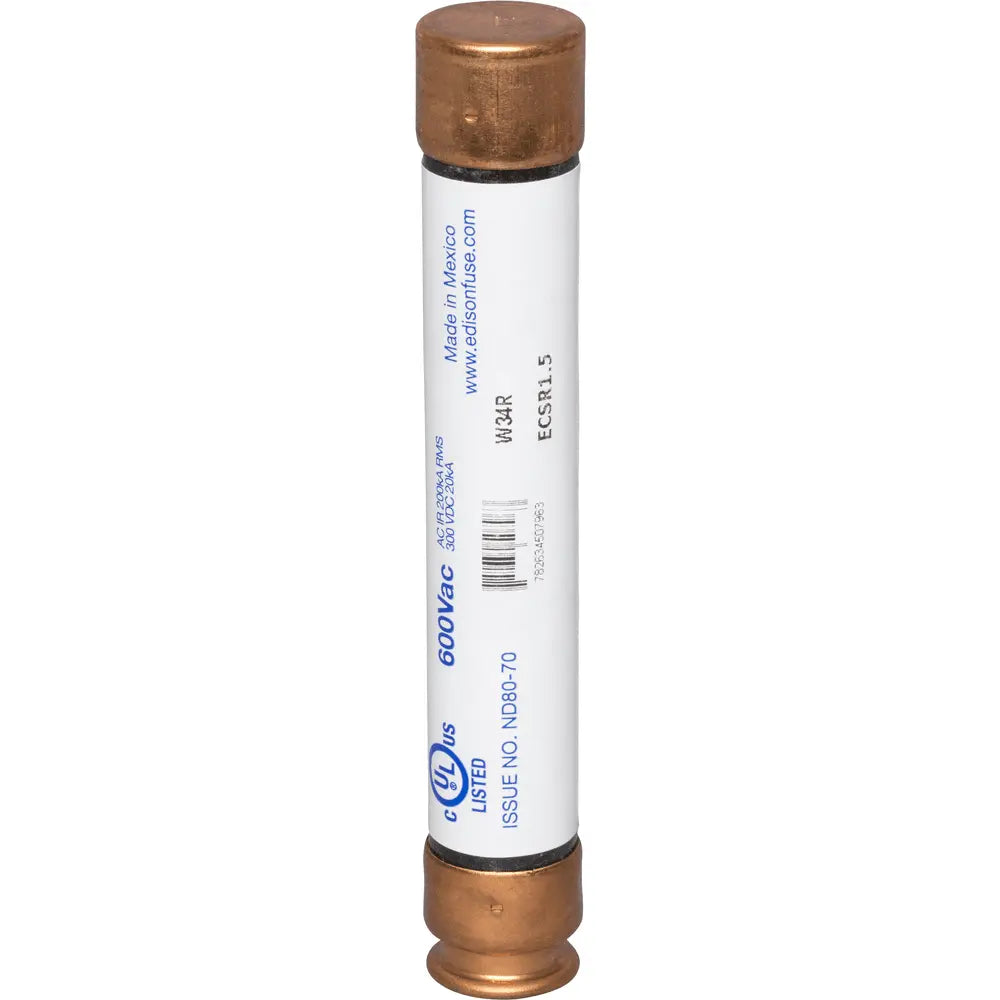

Edison ECSR1.5 ECSR Time-Delay Fuse Class RK5 600 VAC 200 kAIC

Product Description

The Edison ECSR1.5 is a 1.5 Amp ECSR time-delay fuse designed for effective protection in electrical circuits. This fuse handles time delays and supports a variety of applications where overload and fault protection is critical.

• Rated for 600 VAC and 200 kAIC.
• Dual-element design for enhanced protection.
• Ideal for motors and other inductive loads.

Product Highlights

This fuse offers motor overload, ground fault, and short-circuit protection. It's specifically designed for applications with surge currents, making it suitable for inductive components like motors and transformers.

Product Information

Standard Information

• Brand: Edison
• MPN: ECSR1.5

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 1.5 Amperes
• Interrupt Rating: 200 kAIC
• Response Time: Time-Delay
• Element: Dual
• Diameter: 0.81 inches
• Length: 5 inches
• Weight: 0.15 pounds
• Material: Copper
• Standard: CSA, UL
• Connection: Ferrule End
