Edison ECNR60 BUSS ECNR60 UL CLASS RK-5 TIME DELA

Product Description

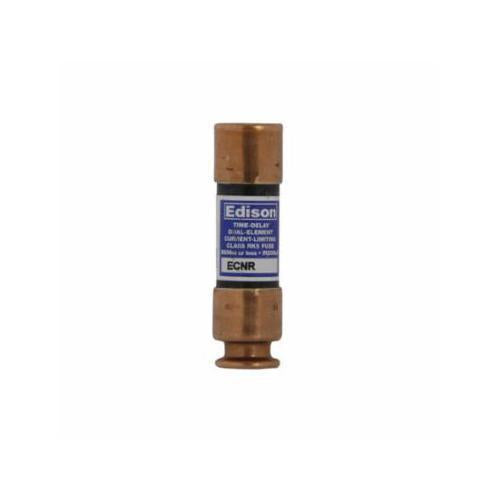

The Edison ECNR60 is a time-delay, current-limiting fuse designed for electrical systems. This fuse offers superior overload protection and can handle up to sixty amps, making it suitable for various environments, including industrial facilities. The fuse is constructed with a cylindrical body measuring zero point eight one inches in diameter and three inches in length.

• Time-delay characteristics allow better circuit protection.
• High interrupt rating of two hundred kAIC.
• Constructed with fiberglass for durability.

Product Highlights

The Edison ECNR60 fuse is ideal for applications requiring reliable overload protection and ensures minimal downtime.

Product Information

Standard Information

• Brand: Edison
• MPN: ECNR60

Technical Specifications

• Voltage Rating: 250 VAC / 125 VDC
• Amperage Rating: 60 A
• Interrupt Rating: 200 kAIC
• Type: Current Limiting, Time-Delay
• Response Time: 10 seconds at 500%
• Body Type: Cylindrical
• End Type: Ferrule
• Material: Fiberglass
