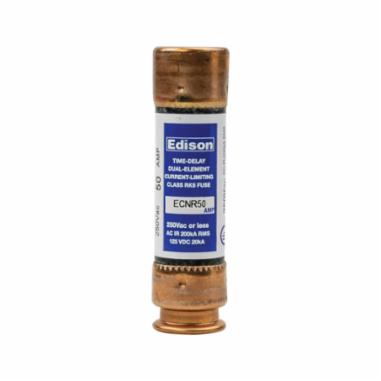

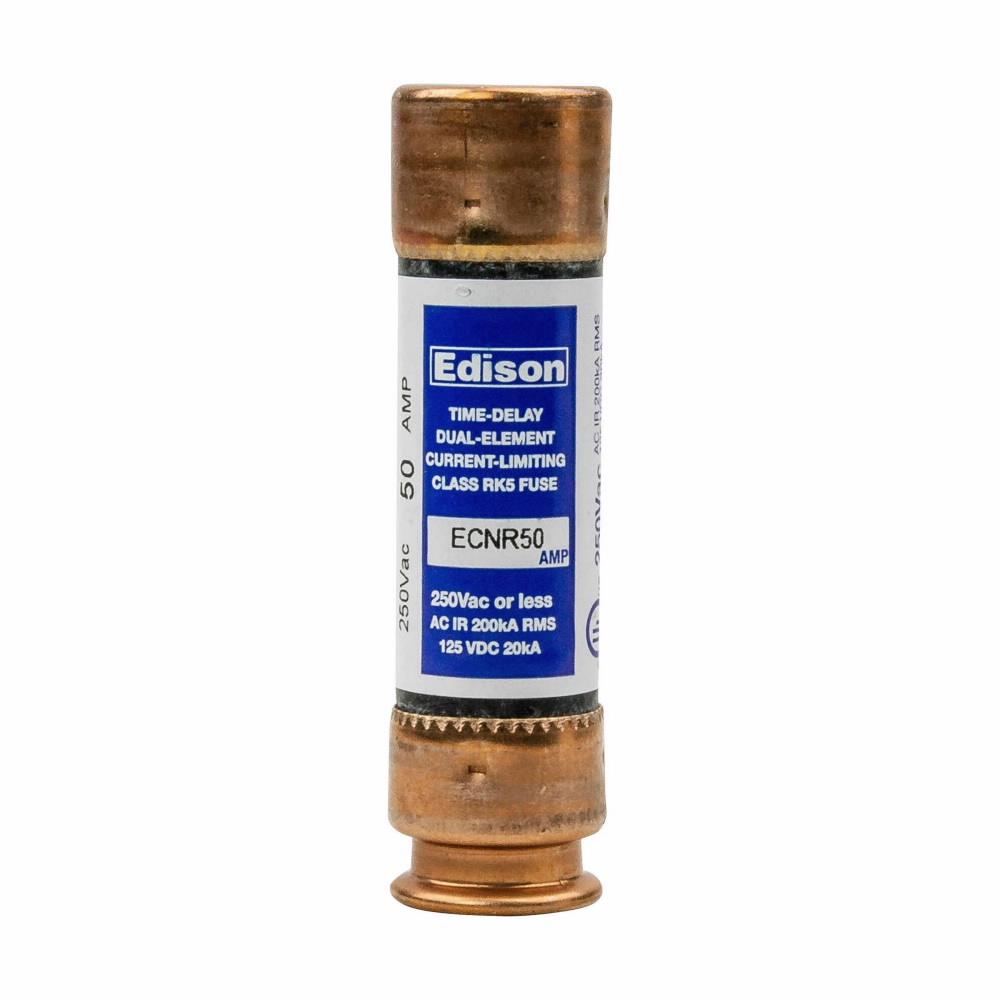

Edison ECNR50 Current Limiting Time Delay Fuse 50 Amps 250 Volt AC 125 Volt DC

Product Description

Edison offers the ECNR50 current limiting time delay fuse, rated for fifty amps and suitable for both two hundred fifty volt AC and one hundred twenty-five volt DC applications. This dual element fuse features fiberglass construction and a cylindrical body, measuring zero point eighty-one inches in diameter and three inches in length. The ECNR50 is designed for effective motor overload, ground fault, and short circuit protection.

• Rated for 50 Amps and 250 VAC/125 VDC
• Interrupt rating of 200 kAIC
• Time delay of 10 seconds at 500% rated load

Product Highlights

This fuse provides efficient protection in power distribution systems. It is ideal for use with inductive loads such as motors and transformers, as well as for general-purpose applications like lighting and heating.

Product Information

Standard Information

• Manufacturer: Edison
• Brand: Edison

Technical Specifications

• Type: Current Limiting Time Delay
• Amperage Rating: 50 A
• Voltage Rating: 250 VAC/125 VDC
• Interrupt Rating: 200 kAIC
• Fuse Class: RK5
• Response Time: 10 seconds at 500%
• Material: Fiberglass
• Body Size: 0.81 in Dia x 3 in L
