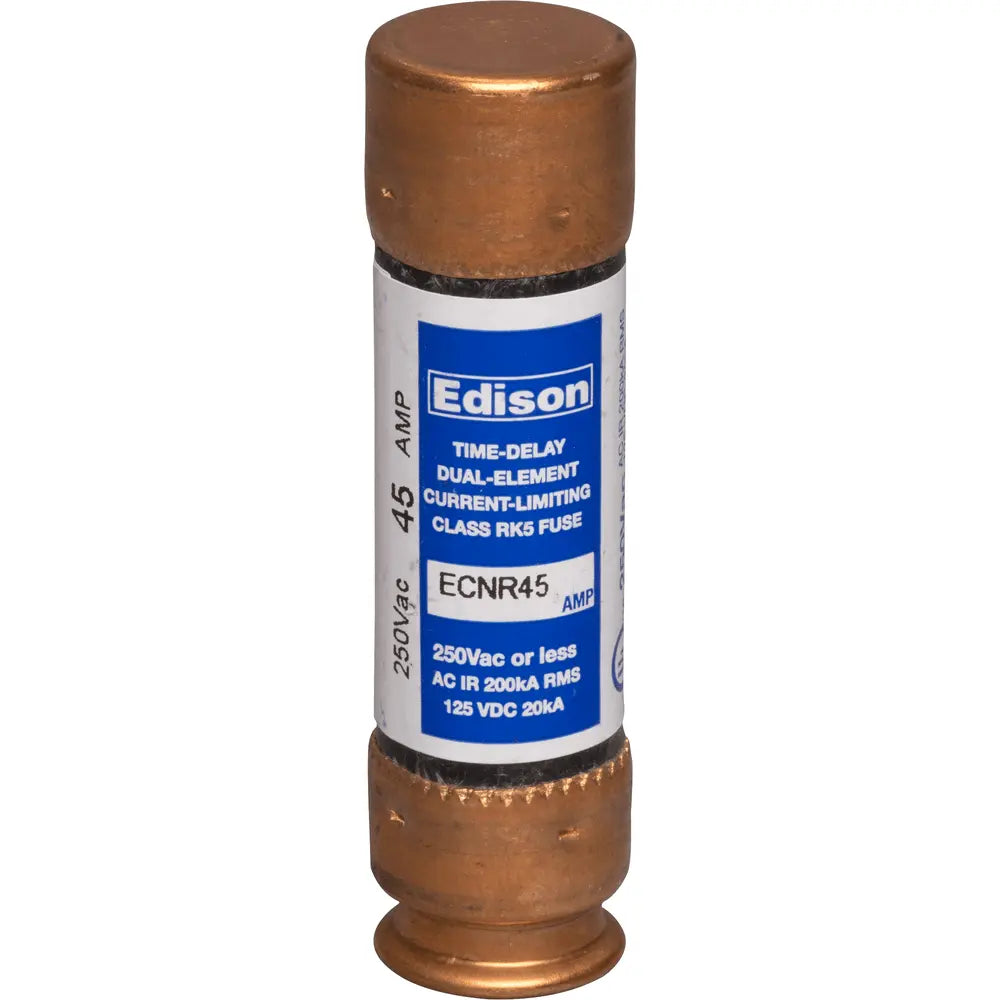

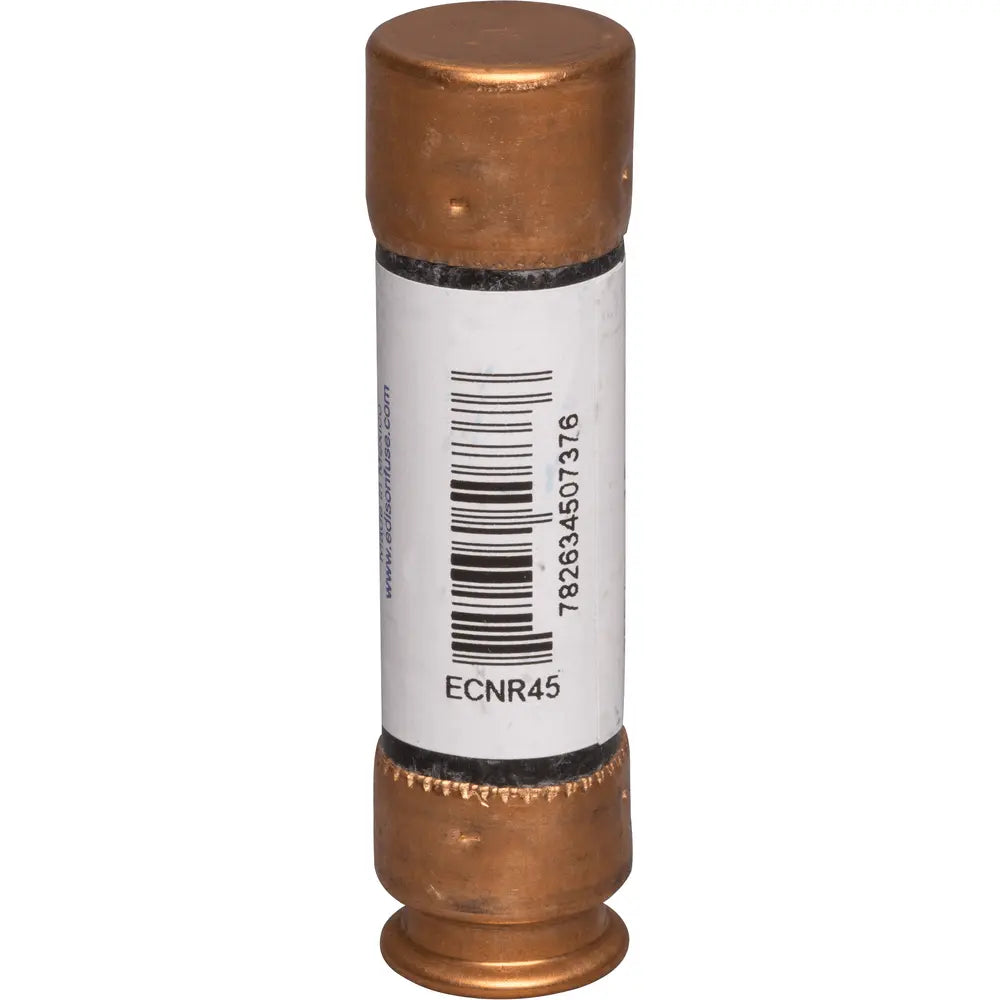

Edison ECNR45 45A ECNR Time-Delay Fuse, Class RK5, 250 VAC, 200 kAIC, Dual-Element

Product Description

The Edison ECNR45 is a 45 Amp ECNR time-delay fuse providing overload, ground fault, and short-circuit protection. This fuse is designed to safeguard motors against burnout from overloads and single-phasing in three-phase systems. Suitable for various applications, it helps maintain system reliability.

• 45 Amp rating for reliable operation
• Time-delay feature for improved safety
• Compatible with both 250 VAC and 125 VDC

Product Highlights

This time-delay fuse is ideal for AC power distribution systems and feeders. It suits inductive loads including motors and transformers.

Product Information

Standard Information

• Brand: Edison
• MPN: ECNR45

Technical Specifications

• Voltage Rating: 250 VAC, 125 VDC
• Amperage Rating: 45 Amperes
• Length: 3 inches
• Diameter: 0.81 inches
• Interrupt Rating: 200 kAIC
• Body Style: Cylindrical
• Element Type: Dual
• Response Time: Time-Delay, 10 seconds at five times the fuse rating
