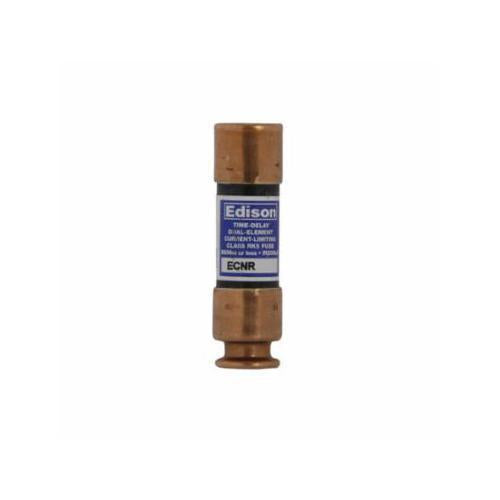

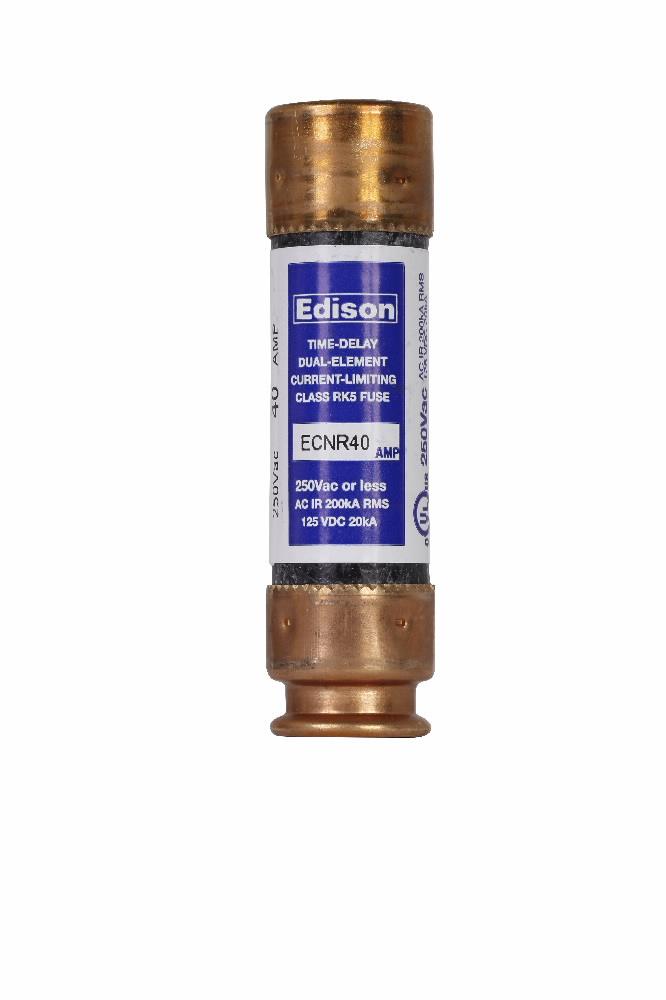

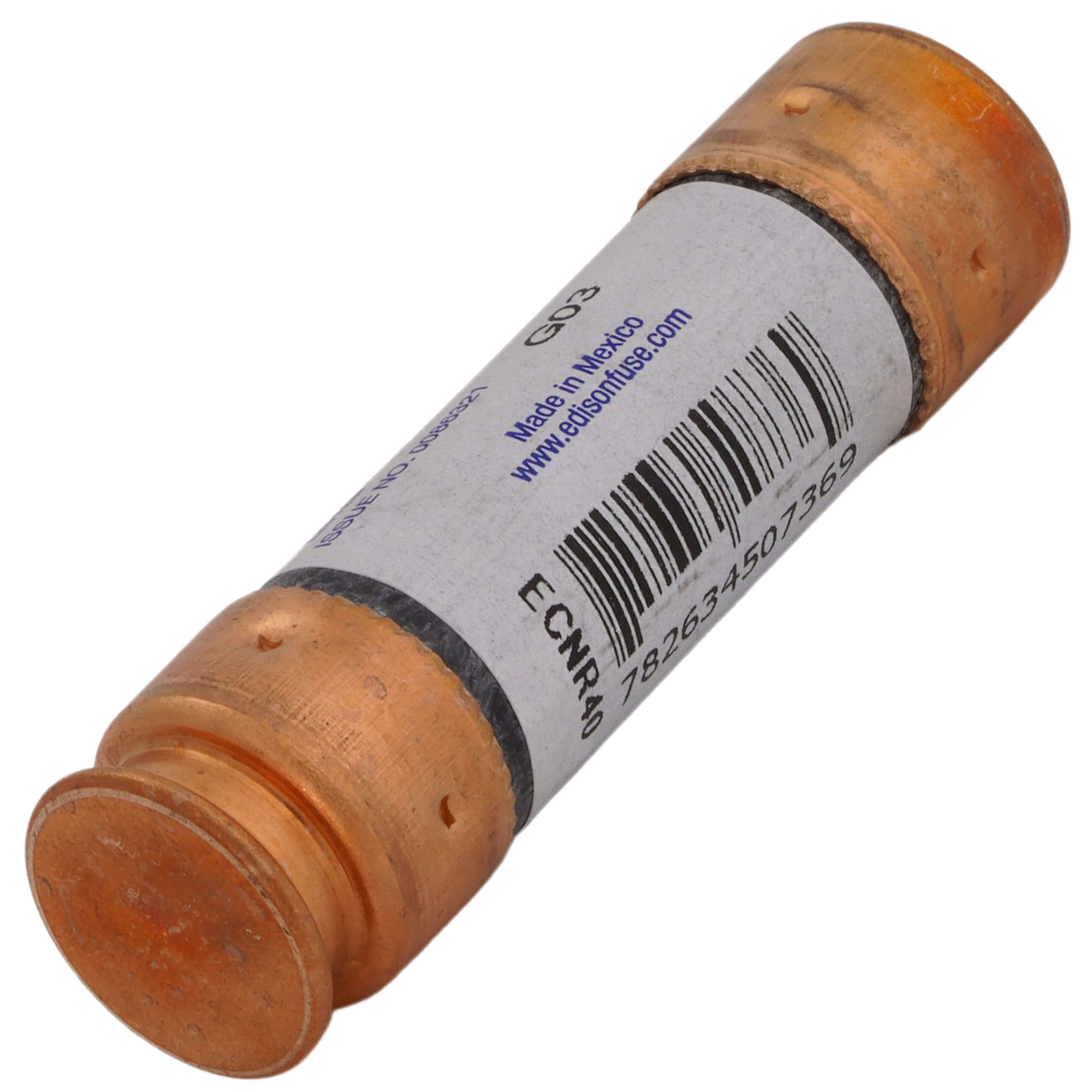

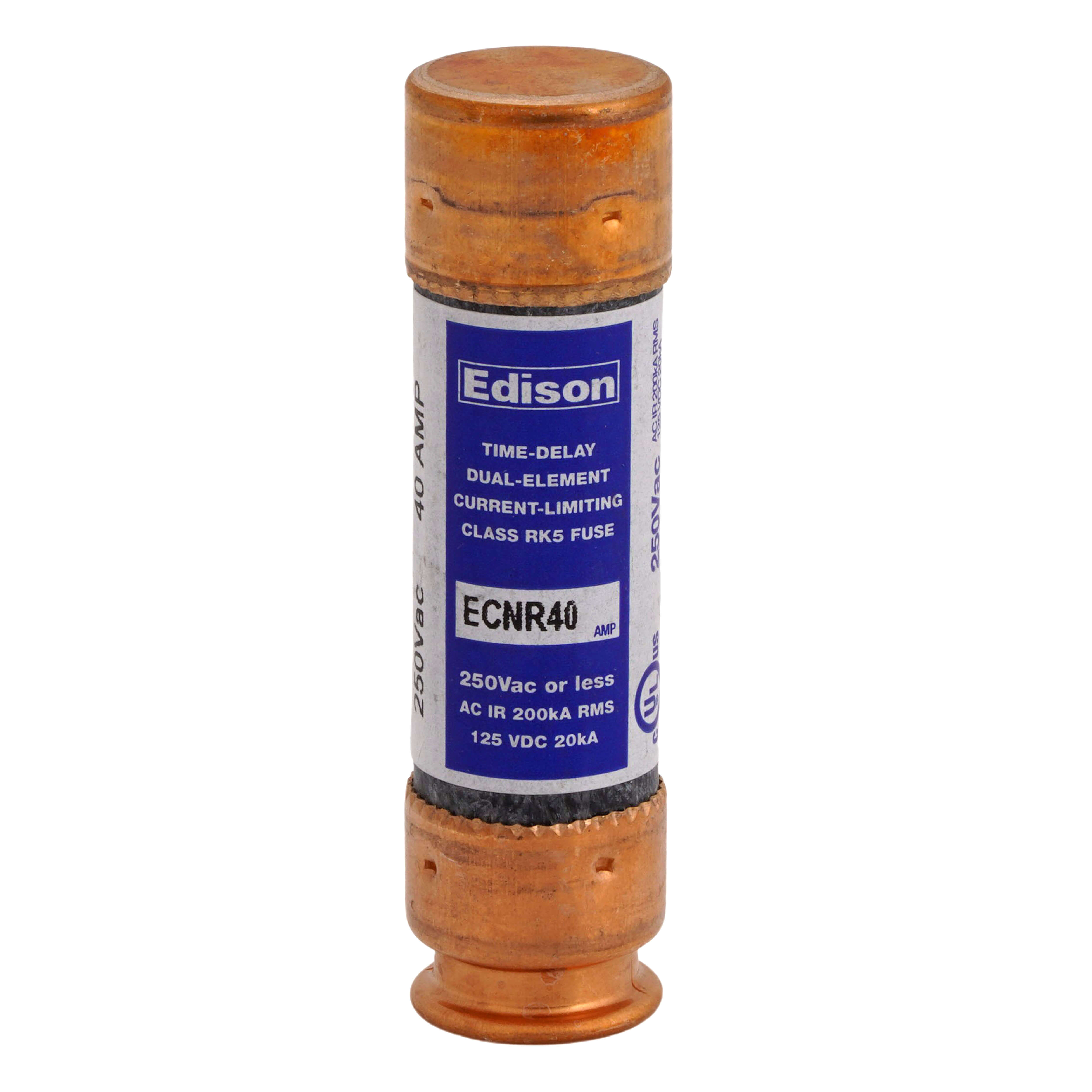

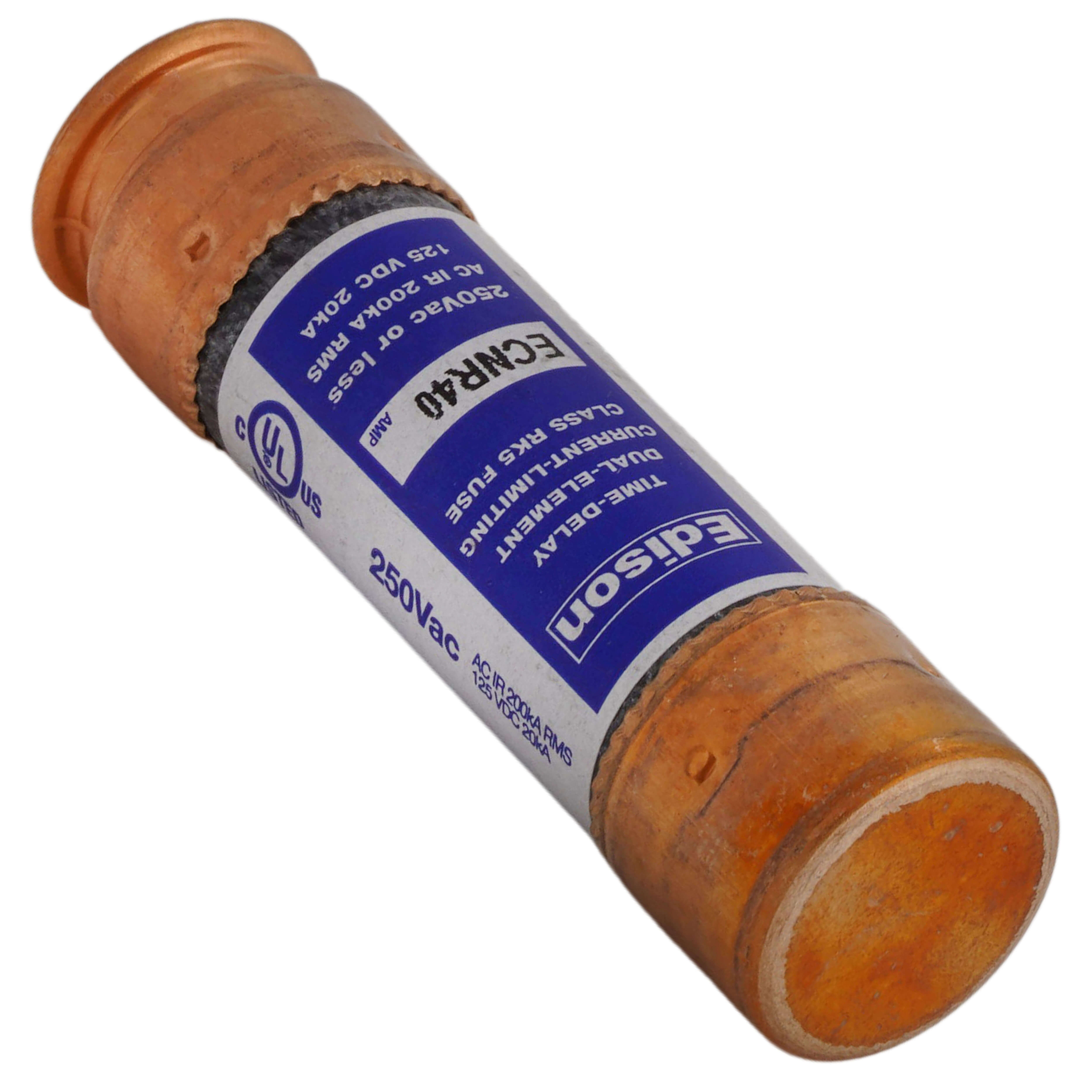

Edison ECNR40 Time Delay Fuse 40A 250V/125V 200kAIC RK5

Product Description

Edison ECNR40 is a current limiting time delay fuse designed for overcurrent protection. This fuse operates at forty amperes with a voltage rating of 250 VAC and 125 VDC. It features a cylindrical body made of fiberglass. This fuse is ideal for applications requiring high interrupting ratings against short circuits and overloads.

• Provides motor overload and short circuit protection
• Rated for 200 kAIC interrupting capacity
• Time-delay characteristic of ten seconds at five times the fuse rating

Product Highlights

This fuse is suitable for both inductive and non-inductive loads, offering reliable protection in various electrical systems.

Product Information

Standard Information

• Brand: Edison
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 40 A
• Voltage Rating: 250 VAC/125 VDC
• Interrupt Rating: 200 kAIC
• Type: Current Limiting Time Delay
• Class: RK5
• Body Type: Cylindrical
• Body Size: 0.81 in Dia x 3 in L
• Response Time: 10 s at 500%
