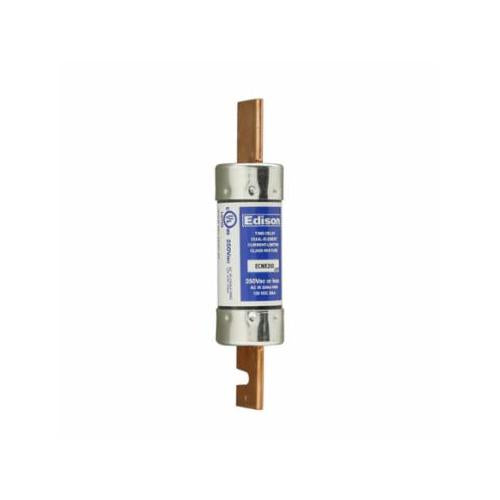

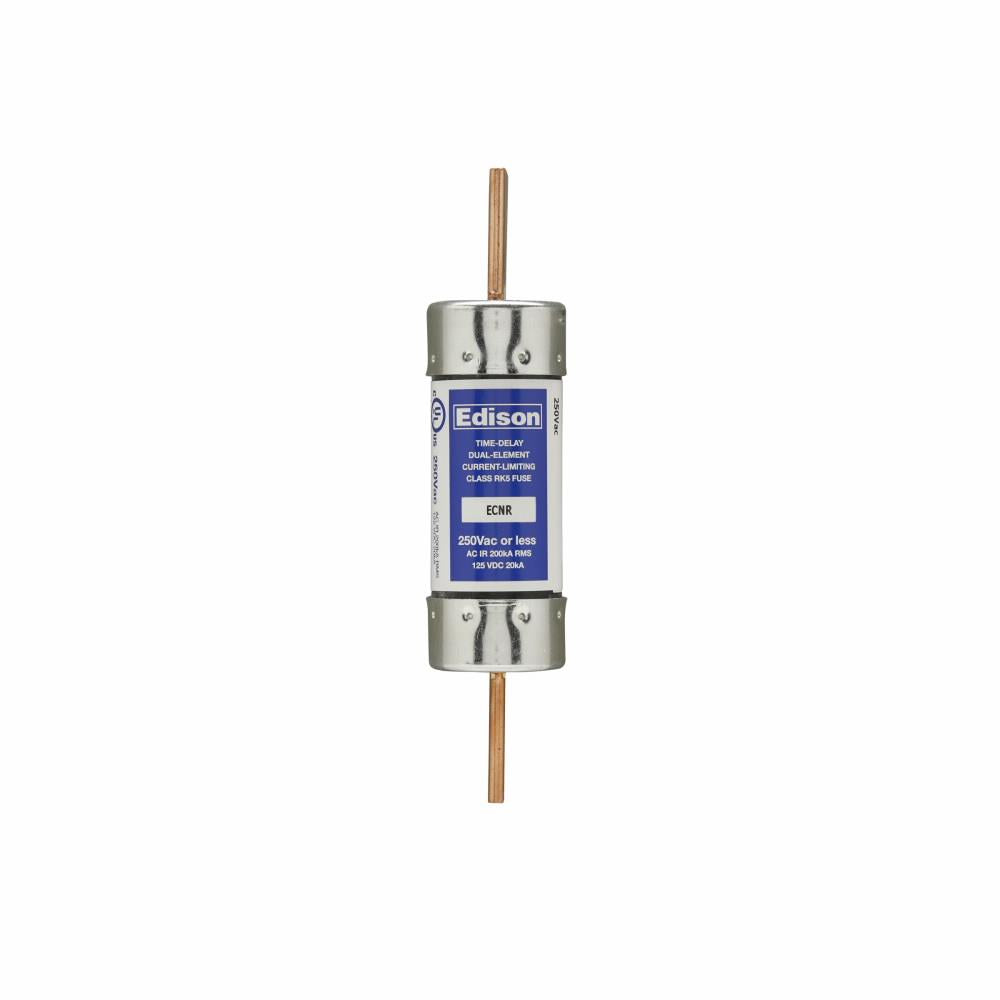

Edison ECNR150 BUSS ECNR150 UL CLASS RK-5 TIME DEL

Product Description

The Edison ECNR150 is a time-delay current limiting fuse designed for overcurrent protection in electrical systems. It features a maximum rating of one hundred fifty amperes and operates at two hundred fifty volts. This fuse is non-indicating and has dual elements, making it suitable for various applications in power distribution.

• Time-delay with ten seconds at five hundred percent rating
• Current limiting, preventing damage from short circuits
• Fits standard blade end connections for easy installation

Product Highlights

Utilized in AC power distribution, this fuse helps protect motors and transformers from overload conditions, ensuring reliability in electrical systems.

Product Information

Standard Information

• Brand: Edison Fuse
• Manufacturer: Eaton

Technical Specifications

• Type: Current Limiting Time Delay
• Class: RK-5
• Amperage Rating: 150 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 200 kAIC
• Body Size: 1.56 inches diameter x 7.13 inches length
• Response Time: 10 seconds at 500%
• End Type: Blade
