Edison ECNR15 BUSS ECNR15 UL CLASS RK-5 TIME DELA

Product Description

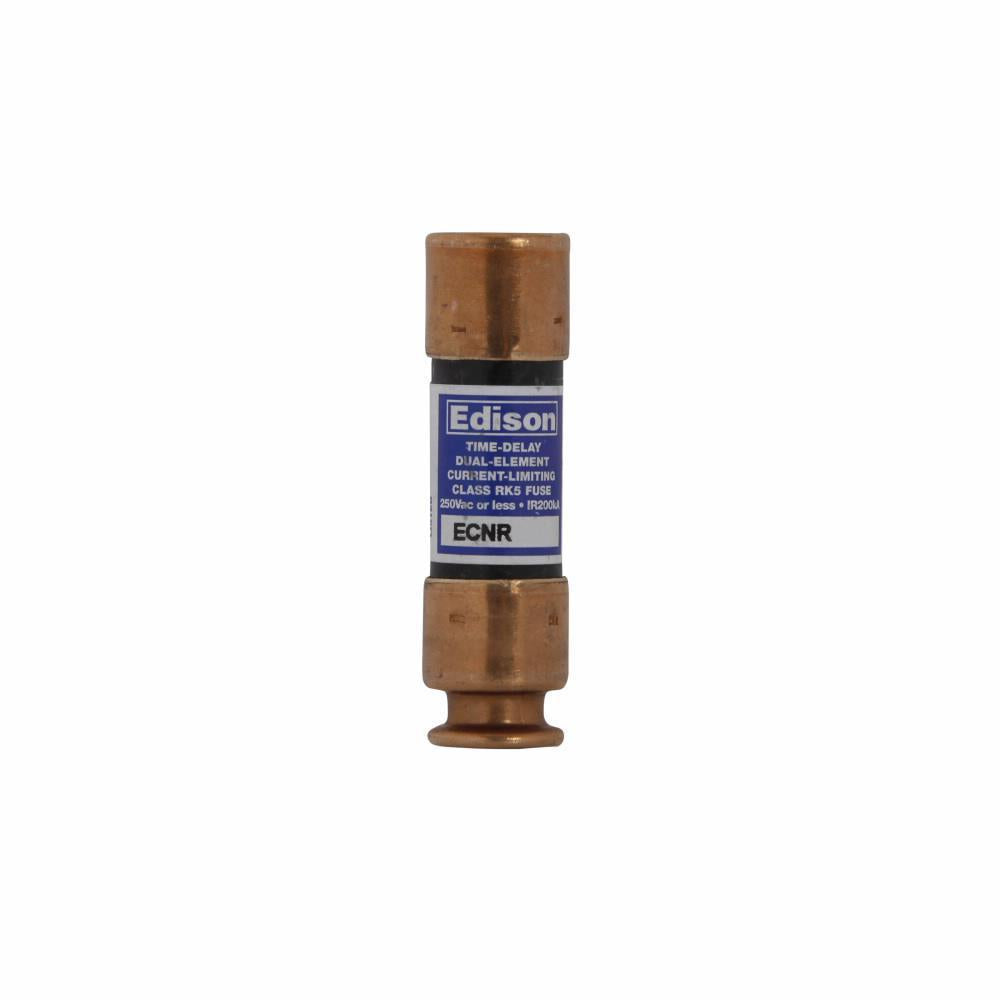

The Edison ECNR15 fuse is a time-delay current-limiting fuse designed for superior performance in power distribution systems. This fuse is rated for 15 Amps and is part of the Class RK5 family. It features a ferrule end on both sides, making it compatible with various applications. The fuse provides excellent overload protection and is specifically designed for use in AC power distribution mains, feeders, and branch circuits.

• Time-delay characteristics allow closer sizing to running ampacity
• 200 kAIC interrupt rating for robust performance
• Ferrule end connections for easy installation

Product Highlights

These fuses offer moderate current limitation and protection against short-circuits. They are ideal for motors, transformers, and inductive loads, making them a reliable choice for electrical engineers and contractors.

Product Information

Standard Information

• Brand: Edison
• MPN: ECNR15

Technical Specifications

• Type: Current Limiting, Time-Delay
• Class: RK5
• Voltage Rating: 250 VAC / 125 VDC
• Amperage Rating: 15 A
• Interrupt Rating: 200 kAIC
• Response Time: 8 seconds at 500%
• Body Size: 0.56 inches in diameter x 2 inches in length
• Material: Fiberglass
