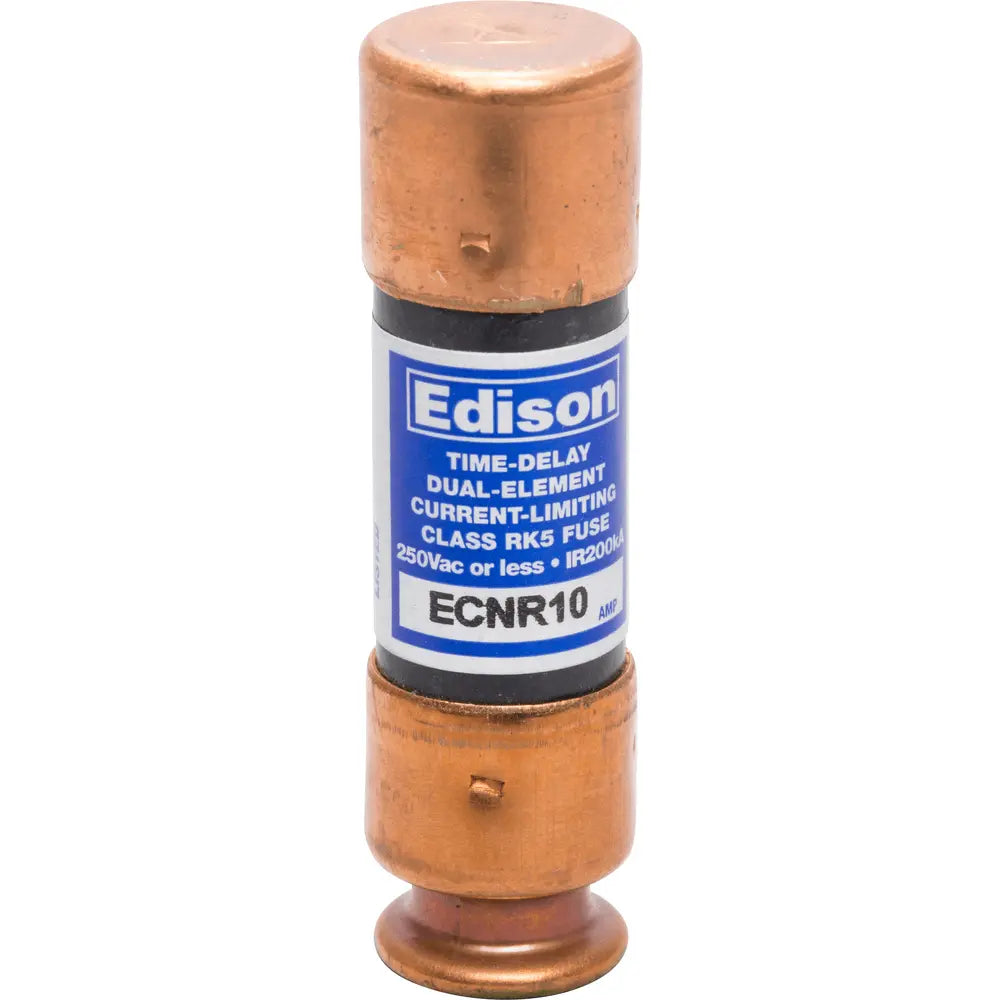

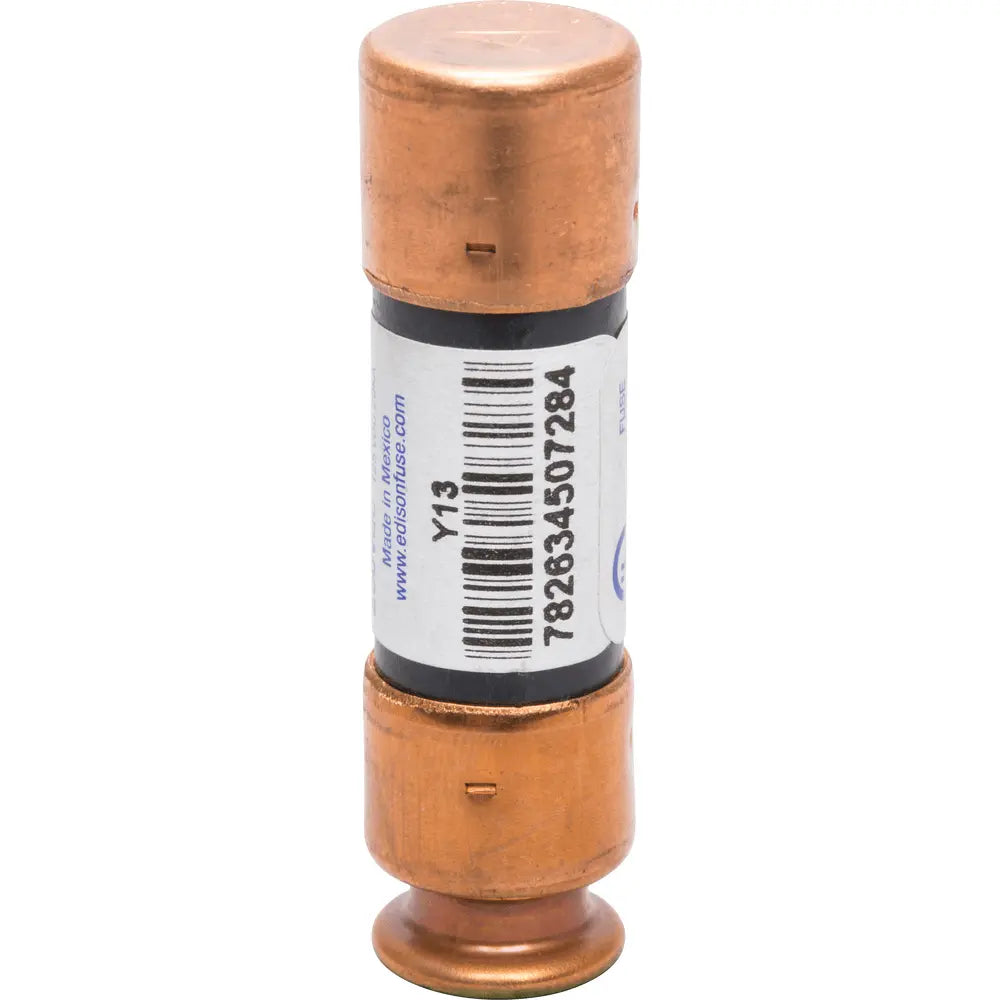

Edison ECNR10 10A ECNR Time-Delay Fuse, Class RK5, 250 VAC, 200 kAIC, Dual-Element

Product Description

The Edison ECNR10 is a 10-amp time-delay fuse designed for reliable protection in electrical applications. This dual-element, Class RK5 fuse operates at a voltage rating of 250 VAC and offers an interrupt rating of 200 kAIC. It is a trusted choice for motor overload, ground fault, and short-circuit protection.

• Time-delay characteristics allow for lower size ratings
• Dual-element construction enhances reliability
• CE marked, ensuring quality and safety

Product Highlights

This fuse is ideal for applications with motors and transformers, providing critical protection against burnout and overloads.

Product Information

Standard Information

• Brand: Edison
• MPN: ECNR10

Technical Specifications

• Type: Time-Delay
• Class: RK5
• Voltage Rating: 250 VAC, 125 VDC
• Amperage Rating: 10 Amperes
• Interrupt Rating: 200 kAIC
• Length: 2 inches
• Diameter: 0.56 inches
• Material: Fiberglass
• Response Time: Time-Delay
