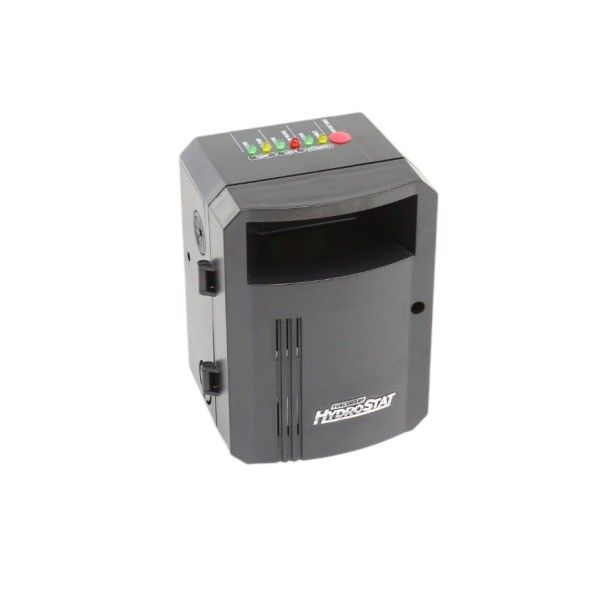

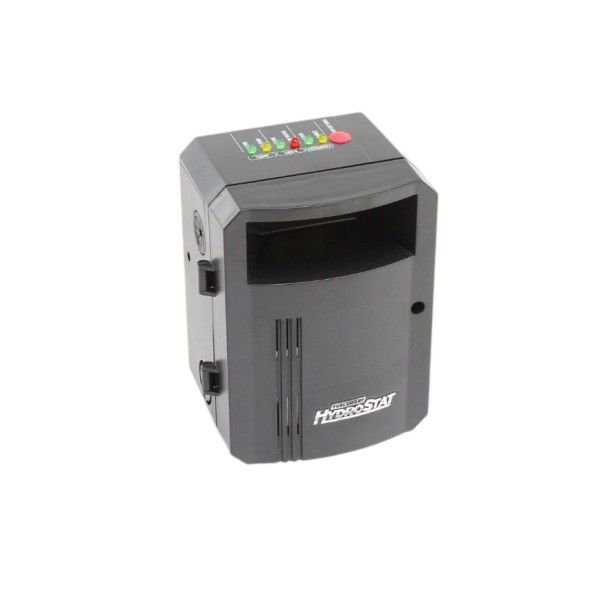

Ecr International 240009113 Hydrolevel Control Board w/Sensor 48-3209 Gas

Product Description

The ECR International 240009113 Hydrolevel Control Board with Sensor is engineered for water boilers, providing temperature limit and low water cut-off (LWCO) control. This Hydrolevel 3200 Plus Control features thermal targeting and operates on a 120 Vac, 60 Hz input voltage. It is compatible with Dunkirk WPSB Series II models, including WPSB-3D through WPSB-9DP, and requires copper conductors for installation. The board manages burner and circulator contacts, offering defined operating ranges for both low and high limits.

• Hydrolevel 3200 Plus Control for water boilers.
• Integrates temperature limit and low water cut-off (LWCO) functions.
• Operates on 120 Vac, 60 Hz input and requires copper conductors.

Product Highlights

This control board provides essential temperature and safety management for Dunkirk WPSB Series II water boilers.

Product Information

Standard Information

• Brand: ECR INTERNATIONAL
• Manufacturer Part Number: 240009113

Technical Specifications

• Control Type: Hydrolevel 3200 Plus Control
• Function: Temp limit/ LWCO Control with thermal targeting for water boilers
• Conductor Type: Copper
• Input Voltage: 120 Vac, 60 Hz
• Burner Contacts: 30 VA@24VAC
• Circulator Contacts: 5.8FLA, 34.8 LRA@120VAC
• Operating Range - Low Limit: Off or 110F (43C) - 200F (93C)
• Operating Range - High Limit: 100F (38C) - 220F (104C)
• Max. Ambient Temperature: 150F (66C)
• Thermostat Heat Anticipator Setting: 0.2A
• Zone Valve Power: Requires separate transformer
• Control Board Dimensions: 4 1/2" x 6 3/16" x 3 7/16"
• Sensor Max Length: 12 1/2"
• Compatible Models: WPSB-3D, WPSB-3DP, WPSB-4D, WPSB-4DP, WPSB-5D, WPSB-5DP, WPSB-6D, WPSB-6DP, WPSB-7D, WPSB-7DP, WPSB-8D, WPSB-8DP, WPSB-9D, WPSB-9DP
• Manufacturer: ECR International
