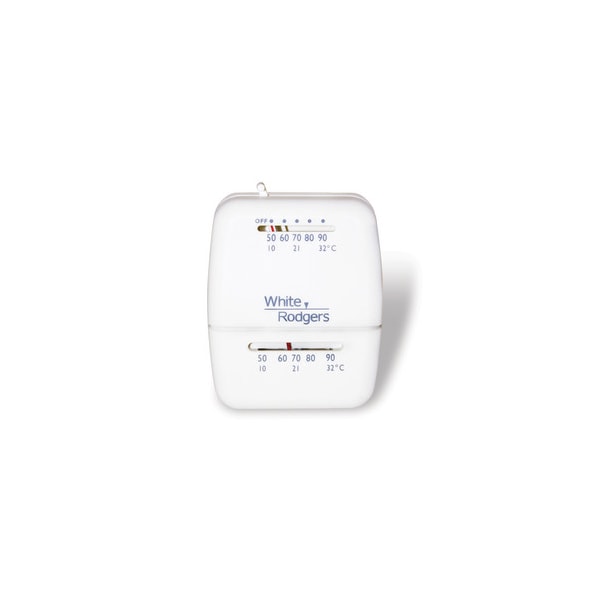

White-Rodgers 1C20-101 30 VAC 50/60 Hz 1-Heat 1-Stage Mechanical Thermostat

Product Description

The White-Rodgers 1C20-101 is a mechanical thermostat designed for heating systems. It operates at thirty volts alternating current and has a current rating of zero point fifteen to one point two amps. This thermostat is suitable for single-stage heating systems and features a snap-action switch for reliable performance.

• Voltage Rating: 30 VAC, 50/60 Hz
• Temperature Range: 50 to 90 degrees Fahrenheit
• Size: 2-7/8 inches width x 1-1/2 inches depth x 3-3/4 inches height

Product Highlights

Mercury-free design ensures safety and ease of use. This thermostat is ideal for residential and commercial applications, including furnaces and radiant heating systems.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 1C20-101

Technical Specifications

• Current Rating: 0.15 to 1.2 amps
• Switch Type: Snap Action
• Temperature Rating: 50 to 90 degrees Fahrenheit
• Cover Type: Round Vertical
• Terminal Designation: RH, W
• Includes: Wall mounting plate, switching sub-base
