ECM Industries XT-4 ILSCO CU MEC 4-14 17/64 B UL CSA

Product Description

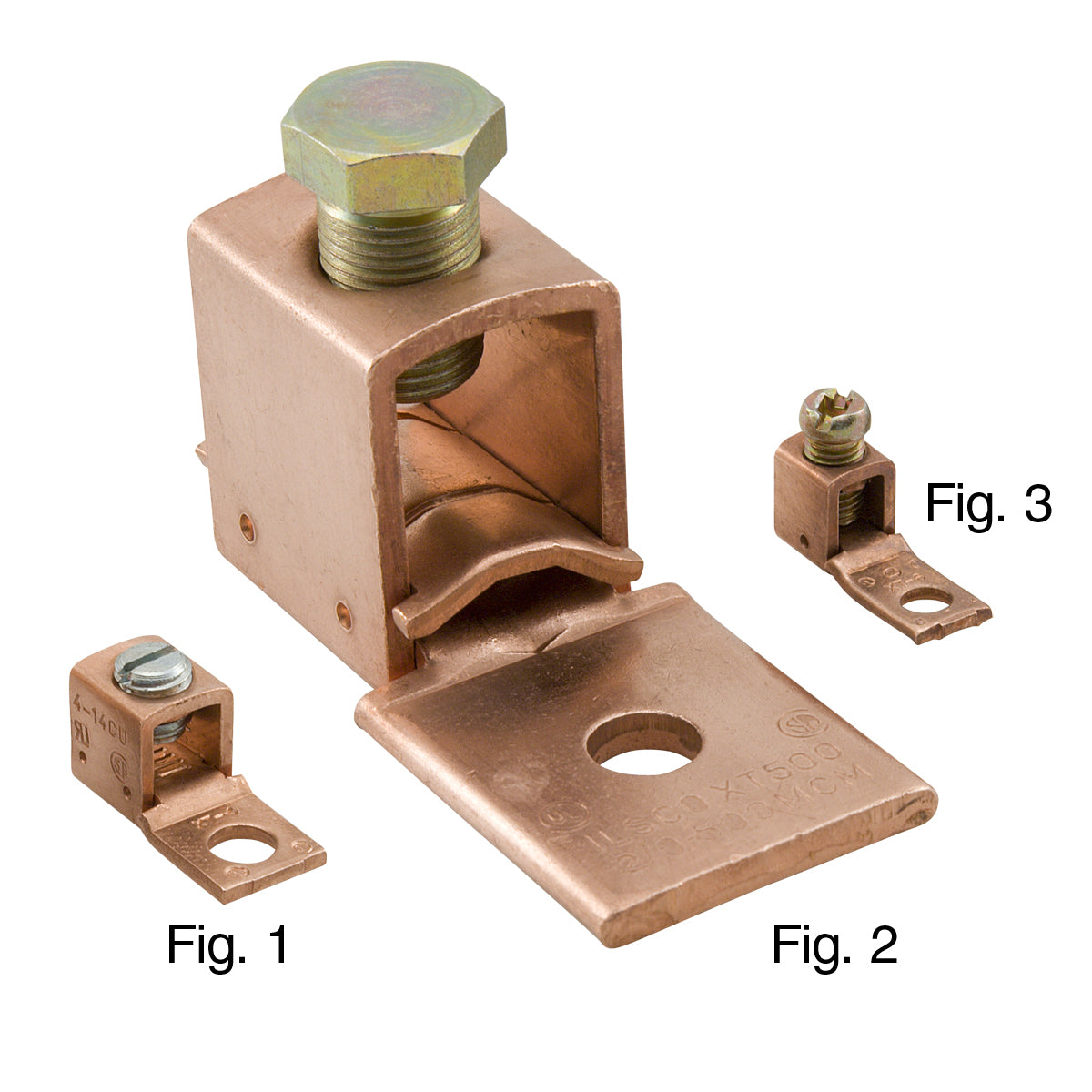

ECM Industries XT-4 is a mechanical lug designed for copper conductors sized fourteen to four AWG. It features a quarter-inch stud and a single bolt hole. This lug is suitable for use in high-voltage applications up to two-thousand VAC. The XT-4 is ideal for terminating connectors in electrical systems.

• Constructed from electrolytic copper tubing
• Designed for reduced inventory and flexibility
• Reusable for efficient space-saving

Product Highlights

The XT-4 mechanical lug ensures reliable connections in electrical circuits.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Series: XT Series

Technical Specifications

• Application: For terminating connector
• Conductor Size: Fourteen to four AWG
• Conductor Type: Copper
• Dimensions: One and one-quarter inches long x one-half inch wide x five-eighths inch high
• Finish: Electrolytic
• Manufacturer Part Number: XT-4
• Number of Bolt Holes: One
• Tongue Size: Three-quarter inch long
• Tongue Type: Straight
• Stud Size: Quarter inch
• Voltage Rating: Two thousand VAC
• Temperature Rating: Ninety degrees Celsius
• Specifications: Seventeen sixty-fourths inch diameter hole, quarter inch hole center to tongue end
• Standards/Approvals: CSA File No. LR-29601, UL 486A/B/453G, E6207
