ECM Industries TA-800 ILSCO AL MECH 800-300 21/32 T UL CSA

Product Description

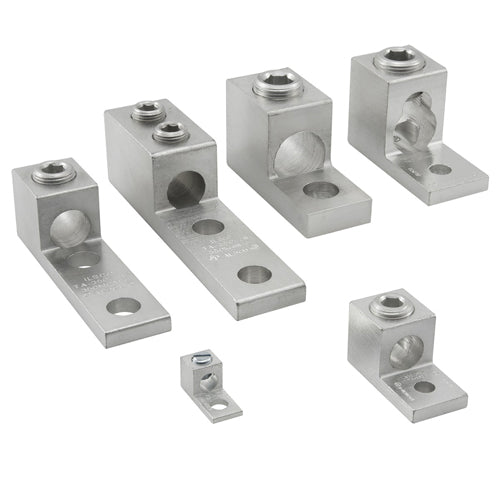

ECM Industries TA-800 is a mechanical terminal lug suitable for 1-conductor dual rated applications. It accommodates aluminum and copper conductors ranging from three hundred to eight hundred kcmil. Designed for use with a five-eighths inch stud and featuring one bolt hole, this terminal lug provides a strong connection for electrical wiring.

• Manufactured from high strength 6061-T6 aluminum alloy
• Chamfered wire entry for easy installation
• Low contact resistance for reliable conductors

Product Highlights

This terminal lug ensures reliability and efficiency in electrical connections. Its compact design and durable materials make it ideal for various electrical applications.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366989320

Technical Specifications

• Application: Terminating Connector Applications
• Conductor Size: 300 to 800 kcmil
• Conductor Type: Aluminum/Copper
• Dimensions: 3.375 in L x 1.75 in W x 1.938 in H
• Finish: Electro-Plated Tin
• Manufacturer Part Number: TA-800
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 1
• Series: TA Series
• Specifications: 1/2 in Hex
• Standards/Approvals: CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99
• Stud Size: 5/8 in
• Temperature Rating: 90 deg C
• Tongue Size: 1-3/4 in L x 1-3/4 in W x 1/2 in THK
• Tongue Type: Straight
• Type: 1-Conductor Dual Rated
• Voltage Rating: 2000 VAC
